12/20kv Hta Cis Cable 3X1X400mm2 Mv Underground Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：Cable
- Wire Core Material：Copper or Aluminum
- Certification：CCC, CE
- Model：Hta Cis
- Brand：Yifang
- Core Number：3 or 1
- Sheath Color：Black
- Standard：NFC 33226
- Metallic Screen Layer：Longitude Aluminum Plastic Tape
- Insulation Screen：Strippable Semi-Conducting Compound ,Longitude Wit
- Characteristic：Longitudinal Water Blocking
- Transport Package：Drum or According to U Request
- Specification：3X1X400mm2
- Trademark：Yifang Cable
- Origin：China
- HS Code：8544601290
- Production Capacity：10000km Per Month
Description
Basic Info.
Model NO. Cable Wire Core Material Copper or Aluminum Certification CCC, CE Model Hta Cis Brand Yifang Core Number 3 or 1 Sheath Color Black Standard NFC 33226 Metallic Screen Layer Longitude Aluminum Plastic Tape Insulation Screen Strippable Semi-Conducting Compound ,Longitude Wit Characteristic Longitudinal Water Blocking Transport Package Drum or According to U Request Specification 3X1X400mm2 Trademark Yifang Cable Origin China HS Code 8544601290 Production Capacity 10000km Per MonthProduct Description

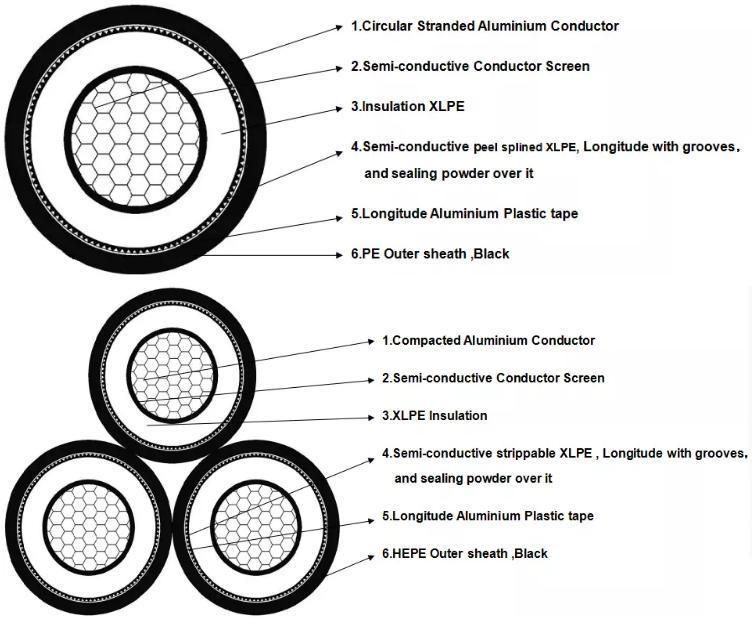

12/20kV HTA CIS Cable 3X1X400MM2 MV Underground Cable1.The Scope & Application:This catalogue applies to XLPE insulated cables for public power distribution networkra and rated voltages 6/10 (12) kV and 18/30 (36) kV. 2. Reference Standard :NFC 33-226 3. Cable construction: Conductor material: Stranded Aluminium Wire , Compacted RoundConductor Screen: Semi-conducting compoundInsulation: XLPEInsulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over itMetallic screen layer: Longitude aluminum plastic tapeOuter sheath: Black PE
