• Model NO.：amka aerial cable
• Wire Core Material：Aluminum Conductor
• Certification：ISO, CCC
• Model：Overhead ABC Cable
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

 Aluminium Compacted ConductorBlack HDPE InsulationLongitudinal RidgesBare Alloy PorterUo/U = 0.6/1 kV, Um = 1.2 kV

2. AMKA Cable Application

Energocomplekt Twisted Overhead Cable AMKA 3x16+25 cables used in power supply in power transmission and distribution line.

The cable as a newtype aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting. To be used at cotages of 600V phase-to phase or less and at conductor temperatures not to exceed 70ºC for polyethylene insulated conductors or 90ºC for cross-liked polyethylene(XLPE) insulated conductors.

3. AMKA Cable Standard

SFS 2200 HD 626-5D.

We can also manufacture AMKA Cable according to customer's special requirements.

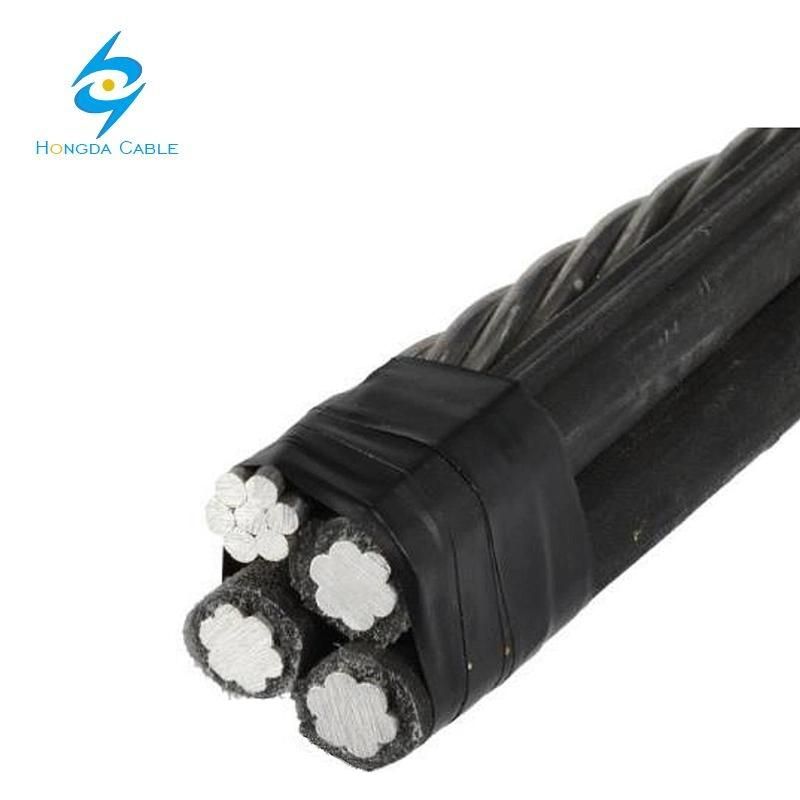

4. Construction

The basic construction is as follows:
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is:
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

OPTIONS

AMKA Cable can be manufactured with the following options:

• Phase Conductor
• Other voltage
• Other section
• Netural conductor
• Insulation Thickness

Cable typePhase area

Messenger

area

Lighting

area

Overall diameter

whole cable

(approx)

Net weight

of cable,

nominal value

Maximum DC

resistance

of phase 20ºC

Maximum DC

resistance

of messenger 20ºC

TWISTED OVERHEAD CABLE
AMKA 1 X 16+251625-111351.911.38TWISTED OVERHEAD CABLE
AMKA  3 X 16+251625-202701.911.38TWISTED OVERHEAD CABLE
 AMKA 4 X 16+251625-223301.911.38TWISTED OVERHEAD CABLE
 AMKA 3 X 25+352535-233901.20.986TWISTED OVERHEAD CABLE
AMKA 3 X 25+16+35253516254651.20.986TWISTED OVERHEAD CABLE
AMKA 3 X 35+503550-275300.8680.72TWISTED OVERHEAD CABLE
AMKA 3 X 35+16+50355016296100.8680.72TWISTED OVERHEAD CABLE
 AMKA 3 X 35+703570-316700.8680.493TWISTED OVERHEAD CABLE
 AMKA 3 X 50+705070-317000.6410.493TWISTED OVERHEAD CABLE
AMKA 3 X 70+957095-3610000.4430.363

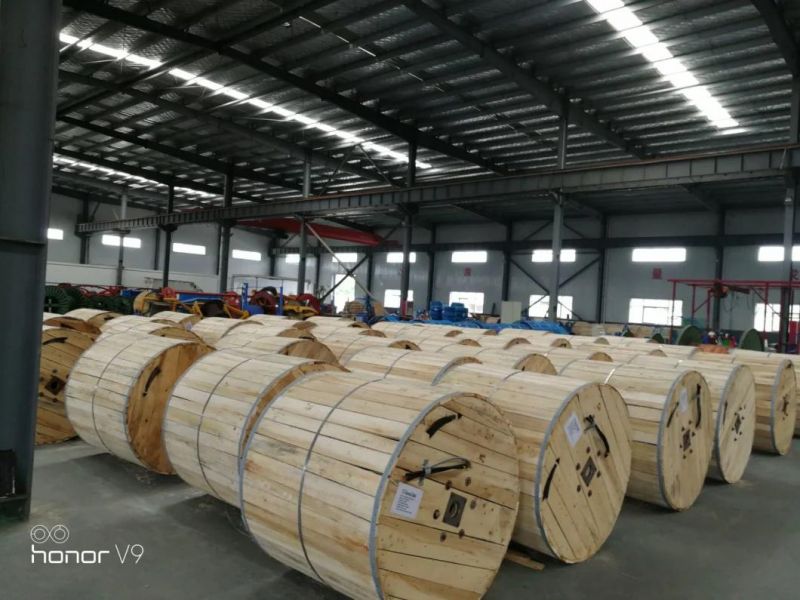

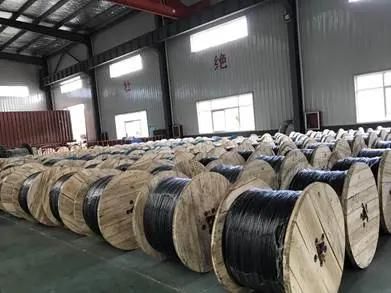

Packing shipping
