14 AWG Strand Copper Electrical Wire
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, House Building
- Conductor Material：Copper
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Electrical wire
- Certification：ISO9001, CE, CCC
- Brand：Hongda
- MOQ：500m
- Warranty：1 Year
- Transport Package：Wooden-Drum
- Trademark：HONGDA
- Origin：China
- Production Capacity：5555,Week
Description
Sheath Color
Navy
Operating Temperature Range
0 ~ 105°C
Standard Acquired
ULAWM2501 (600 V)
ULAWM2517 (300 V)
Allowable Bending Radius
Finished Outer Diameter x 6 (Fixed Part Only)
Model Number
AWG Size
Number of Cores
Sample
Provided
NA6CT
(ULAWM2501 / 600 V 105°C)
18 * (0.75mm2)
4
-
16 * (1.25mm2)
4
-
6
-
14 * (2mm2)
4
-
6
-
12 * (3.5mm2)
4
-
6
-
10 * (5.5mm2)
4
-
6
-
8 * (10 mm2)
4
-
6 * (14 mm2)
4
-
NA3CT
(ULAWM2517 / 300 V 105°C)
20 * (0.5mm2)
4
-
6
-
18 * (0.75mm2)
4
-
Model Number
Composite
(AWG Size x Core Number)
+ (AWG Size x Core Number)
Sample
Provided
NA3CTF-T
(ULAWM2517 / 300 V 105°C)
(AWG16 x 4)
+ (AWG20 x 2)
-
More Information
Model Number
AWG Size *1
Number
of
Cores
Specified Length
(m)
Conductor Identification *2
Conductor
Insulation
Thickness
(mm)
Wire Core
Outer Diameter
Approx. (mm)
Sheath
Thickness
(mm)
Finished
Outer Diameter
(mm) * 3
Electrical Properties
Approximate
Mass
kg/km
Structure
Strands / mm
Outer Diameter
Approx. / mm
Conductor Resistance
Ω / km (20°C)
Insulation Properties
MΩkm (20°C)
Maximum Voltage
V / Min
Allowable Current
A (30°C)* 4
NA6CT
(ULAWM2501 / 600 V 105°C)
18 (0.75mm2)
4
1
~
100
(Specify 1 m Increment)
Blue White Red YG
34/0.18
1.21
0.85
2.91
1.7
10.5
22.1
50
2000
9
133
16 (1.25mm2)
4
Blue White Red YG
53/0.18
1.51
0.85
3.21
1.7
11.2
13.9
50
2000
12
164
6
Blue White Red YG Black Black / White
53/0.18
1.51
0.85
3.21
1.7
13.1
13.9
50
2000
10
225
14 (2mm2)
4
Blue White Red YG
41/0.26
1.92
0.85
3.62
1.7
13.2
8.75
50
2000
18
210
6
Blue White Red YG Black Black / White
41/0.26
1.92
0.85
3.62
1.7
14.4
8.75
50
2000
15
291
12 (3.5mm2)
4
Blue White Red YG
43/0.32
2.42
0.85
4.12
1.7
13.4
5.51
50
2000
23
277
6
Blue White Red YG Black Black / White
43/0.32
2.42
0.85
4.12
1.7
15.9
5.51
50
2000
19
390
10 (5.5mm2)
4
Blue White Red YG
43/0.40
3.03
0.85
4.73
1.7
14.9
3.46
50
2000
31
371
6
Blue White Red YG Black Black / White
43/0.40
3.03
0.85
4.73
1.7
17.7
3.46
50
2000
26
536
8 (10mm2)
4
Blue White Red GY
55/0.45
3.9
1.25
6.4
1.7
18.9
2.14
40
2000
61
615
6 (14 mm2)
4
Blue White Red GY
87/0.45
4.8
1.65
8.1
2.2
24.1
1.34
40
2000
83
1020
NA3CT
(ULAWM2517 / 300 V 105°C)
20 (0.5mm2)
4
Blue White Red YG
27/0.16
0.96
0.32
1.6
1.0
6
36
10
2000
6
49
6
Blue White Red YG Black Black
27/0.16
0.96
0.32
1.6
1.0
6.9
36
10
2000
5
67
18 (0.75mm2)
4
Blue White Red YG
34/0.18
1.21
0.35
1.9
0.8
6.3
23.6
10
2000
9
59
Model Number
Composite
(AWG Size x Core Number)
+ (AWG Size x Core Number)
Specified Length
(m)
Conductor Identification
Conductor
Insulation
Thickness
(mm)
Wire Core
Outer Diameter
Approx. (mm)
Sheath
Thickness
(mm)
Finished
Outer Diameter
(mm)
Electrical Properties
Approximate
Mass
kg/km
Structure
Strands / mm
Outer Diameter
Approx. / mm
Conductor Resistance
Ω / km (20°C)
Insulation Properties
MΩkm (20°C)
Withstand Voltage
V / Min
Allowable Current
A (30 °C)
NA3CTF-T
(ULAWM2517 / 300 V 105°C)
(AWG16 x 4) +
(AWG20 x 2)
1 ~ 100
(Specify 1 m Increment)
AWG16
Blue White Red YG
54/0.18
1.53
0.34
2.2
0.8
7.5
14.7
10
2000
10
102
AWG20
Black Black
27/0.16
0.96
0.27
1.5
36
10
2000
5
Our Services

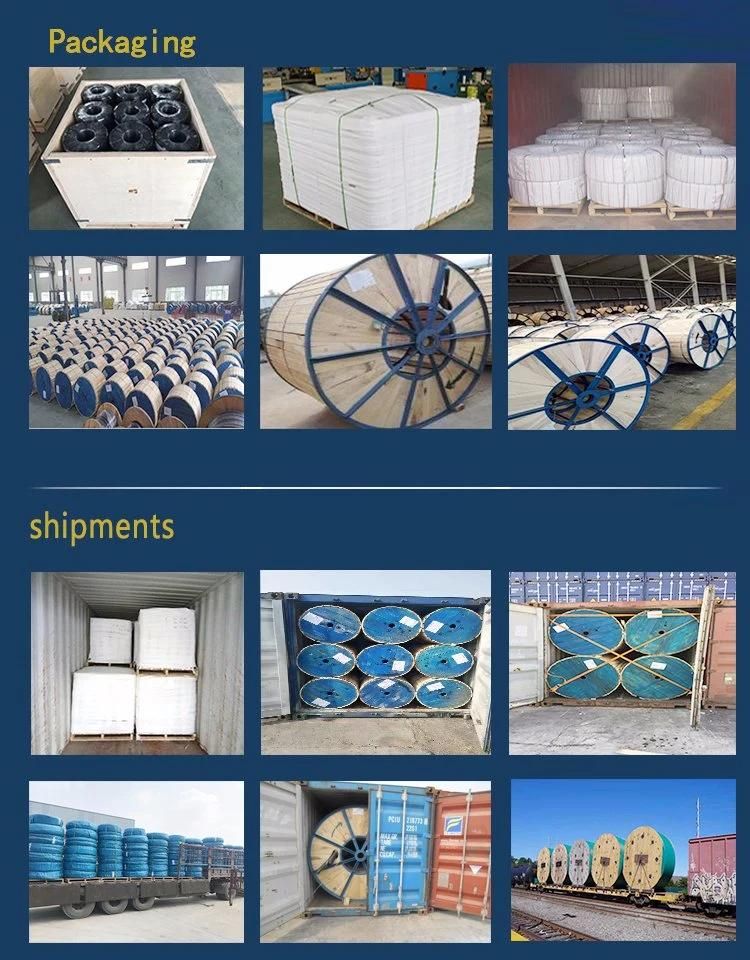

Packing&Shipping
FAQ
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: We can make the sample order. And usually we will charge for it.
But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.
We can pick you up in the airport and the railway station.
5. Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact Mona. She will let you know.
