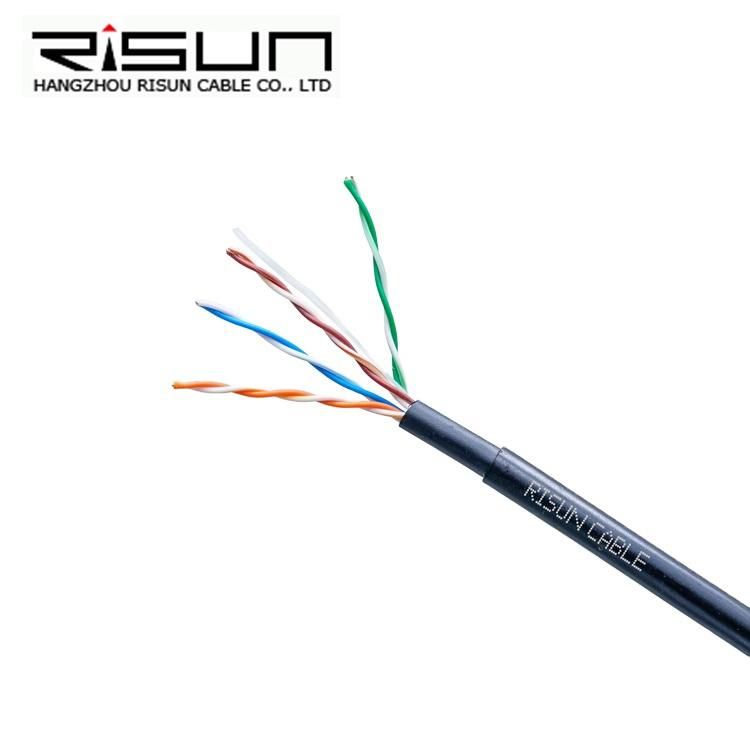

UTP Cat5e Outdoor Double Jacket LAN Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC+PE,PE+PE
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：LAN Cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
- Model：UTP Cat5e Outdoor Double Jacket LAN Cable
- Brand：Risun or OEM
- Insulation：HDPE
- UV：Available
- Frame Returdant：Available
- Transport Package：305m,Wooden Drum
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Model NO. LAN Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model UTP Cat5e Outdoor Double Jacket LAN Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
The standard CAT5e UTP cable for outdoor installation (Outdoor Cabling) comes with a 2-layer jacket for durability in outdoor installations.construction:
| conductor | 24awg (solid or strand) cu/cca/ccs |
| insulation | HDPE 0.90±0.02mm |
| sheath | 5.0±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
| cores/pairs | 8/4 |
mechanical properties:
| elongation | min. 300% |
| temperature range | -20 up to +75° c |
| tensile strength | min 1.68kg/mm² |
electrical properties:
| resistance | max. 9.38 ohm/100m |
| resistance unbalance | max. 2% |
| insulation resistance | 150 ohm/km |
| mutual capacitance | max. 5600pf/100m |
| capacitance unbalance | max. 330pf/100m |
| impedance | 100+/-15 ohm |
| spark test | 2000v |
| velocity of propagation | 67% |

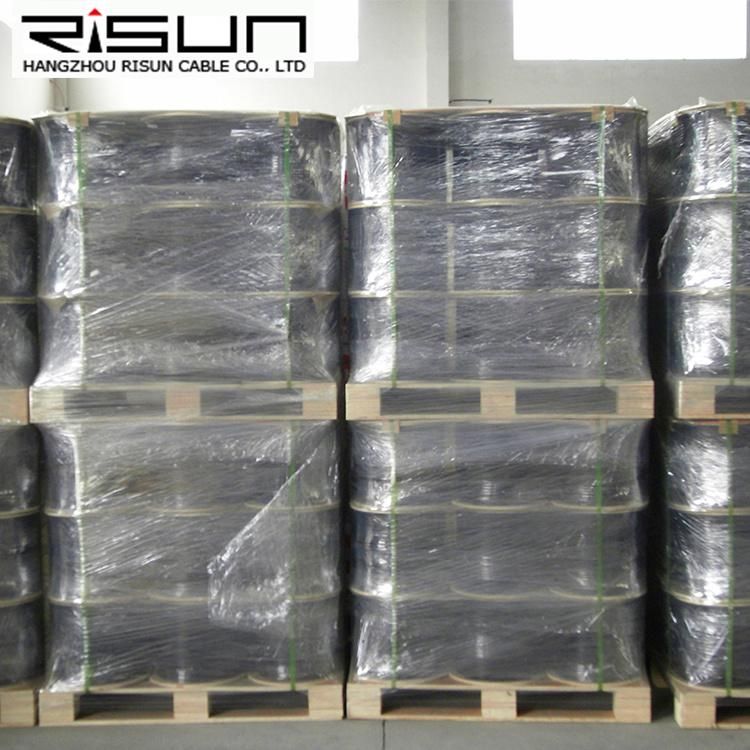

packing
1) packing lengths: 305m/Wooden Drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
company profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.
95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.
in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
Welcome to RISUN,we will be happy to serve you!
