Standard Overhead ACSR Swallow Bare Conductor Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：ACSR
- Brand：Dayuan

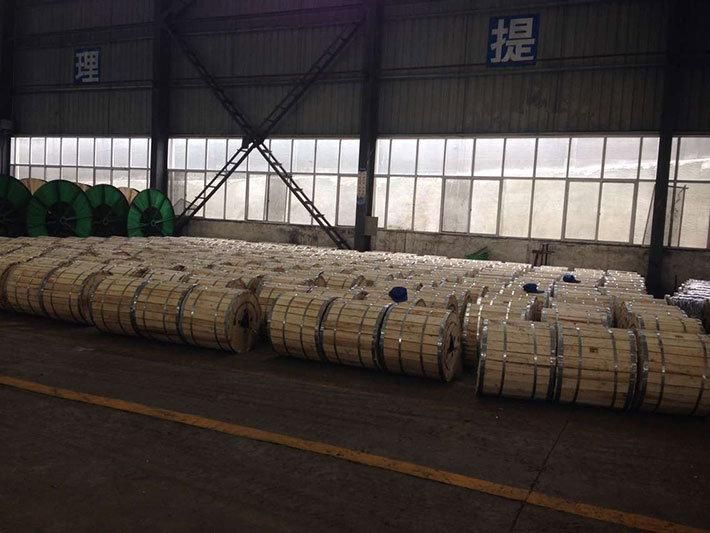

- Transport Package：Wooden Drum
- Specification：1.1*1.1*0.8m,roll 1.8*1.8*1.1m,roll
- Trademark：Luoyang dayuan cable
- Origin：Luoyang City, Henan Province, China
- HS Code：7614100000
- Production Capacity：8000kilometers,Month
Description
Max. DC
resistance
at 20ºCNominal
alumi. Alumi. Steel Total Alumi. Steel Alumi. Steel Total mm 2 mm 2 mm 2 mm 2 mm mm mm kg/km kg/km kg/km kN Ω/km Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 4.50 29 14 43 4.14 2.076 Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 6.33 58 27 85 7.88 1.368 Gopher 25 26.25 4.37 30.62 6/2.36 1/2.36 7.08 72 34 106 9.61 1.093 Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 7.77 87 41 128 11.45 0.9077 Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 8.37 101 48 149 13.20 0.7822 Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 9.00 117 55 172 15.20 0.6766 Rabbit 50 52.88 8.82 61.70 6/3.35 1/3.35 10.05 145 69 214 18.35 0.5426 Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 10.98 173 82 255 21.80 0.4545 Skunk 60 63.27 36.93 100.30 12/2.59 7/2.59 12.95 175 290 465 53.00 0.4567 Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 11.97 205 97 302 25.70 0.3825 Horse 70 73.37 42.80 116.17 12/2.79 7/2.79 13.95 203 335 538 61.20 0.3936 Racoon 75 79.20 13.20 92.40 6/4.10 1/4.10 12.30 217 103 320 27.20 0.3622 Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 12.66 230 109 339 28.80 0.3419 Cat 90 95.40 15.90 111.30 6/4.50 1/4.50 13.50 262 124 386 32.70 0.3007 Hare 100 105.00 17.50 122.50 6/4.72 1/4.72 14.16 288 137 425 36.00 0.2733 Dog 100 105.00 13.50 118.50 6/4.72 7/1.57 14.15 288 106 394 32.70 0.2733 Hyena 100 105.80 20.44 126.20 7/4.39 7/1.93 14.57 290 160 450 40.90 0.2712 Leopard 125 131.30 16.80 148.10 6/5.28 7/1.75 15.81 360 132 492 40.70 0.2184 Coyote 125 132.10 20.10 152.20 26/0.54 7/1.91 15.89 365 157 522 46.40 0.2187 Cougar 125 130.30 7.25 137.50 18/3.05 1/3.05 15.25 362 57 419 29.80 0.2189 Tiger 125 131.10 30.60 161.70 30/2.36 7/2.36 16.52 362 240 602 58.00 0.2202 Wolf 150 158.00 36.90 194.90 30/2.59 7/2.59 18.13 437 289 726 69.20 0.1828 Dingo 150 158.70 8.80 167.50 18/3.35 1/3.35 16.75 437 69 506 35.70 0.1815 Lynx 175 183.40 42.80 226.20 30/2.79 7/2.79 19.53 507 335 842 79.80 0.1576 Caracal 175 184.20 10.30 194.50 18/3.61 1/3.61 18.05 507 80 587 41.10 0.1563 Panther 200 212.00 49.50 261.50 30/3.00 7/3.00 21.00 586 388 974 92.25 0.1363 Lion 225 238.50 55.60 294.20 30/3.18 7/3.18 22.26 659 436 1095 109.60 0.1212 Bear 250 264.00 61.60 325.60 30/3.35 7/3.35 23.45 730 483 1213 111.10 0.1093 Goat 300 324.30 75.70 400.00 30/3.71 7/3.71 25.97 896 593 1489 135.70 0.0891 Sheep 350 374.10 87.30 461.40 30/3.99 7/3.99 27.93 1034 684 1718 155.90 0.07704 Antelope 350 373.10 48.40 421.50 54/2.97 7/2.97 26.73 1032 379 1411 118.20 0.07727 Bison 350 381.80 49.50 431.30 54/3.00 7/3.00 27.00 1056 388 1444 120.90 0.07573 Jaguar 200 210.60 11.70 222.30 18/3.86 1/3.86 19.30 580 91 671 46.55 0.13670 Deer 400 429.30 100.20 529.50 30/4.27 7/4.27 29.89 1186 785 1971 178.50 0.06726 Zebra 400 428.90 55.60 484.50 54.3.18 7/3.18 28.62 1186 435 1621 131.90 0.06740 Elk 450 477.00 111.30 588.30 30/4.50 7/4.50 31.50 1318 872 2190 198.20 0.06056 Camel 450 475.20 61.60 536.80 54/3.35 7/3.35 30.15 1314 483 1797 145.70 0.06073 Moose 500 528.70 68.50 597.20 54/3.53 7/3.53 31.77 1462 537 1999 161.10 0.05470
4. Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.

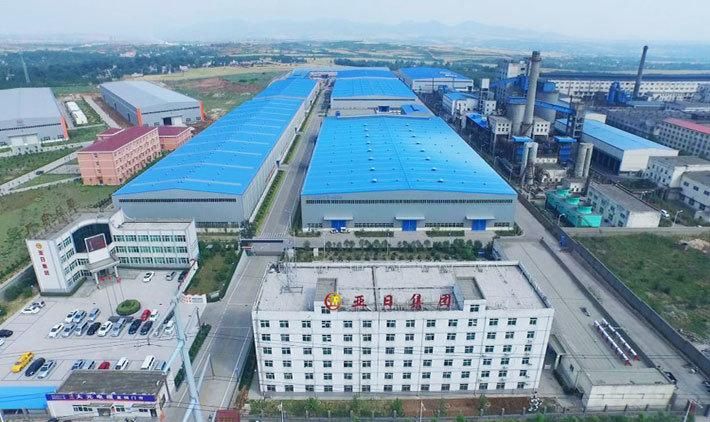

1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
5. Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
