• Model NO.：THHN,THWN
• Material Shape：Round
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Standard：Icea S-58-679
• Transport Package：Treated Wooden Drums
• Specification：16awg to 10 awg
• Trademark：YIFANG
• Origin：China
• HS Code：8544492100
• Production Capacity：10000m Per Week

Basic Info.

Model NO. THHN/THWN Material Shape Round Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Yifang Standard Icea S-58-679 Transport Package Treated Wooden Drums Specification 16awg to 10 awg Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 10000m Per Week

Product Description

THHN/THWN 600V Type TC  Nylon control Cable

Application

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations. 130°C for emergency overload ratings, and 250°C for short circuit ratings. Not recommended in D.C. operation in wet locations.

Compliances

• NFPA 70 (NEC)
• UL 1581 - Electrical Wires, Cables and Flexible Cords
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2
• UL 1685 - UL Flame Exposure Test (70,000 Btu/hr)

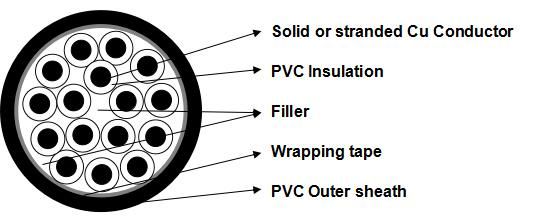

Construction

Conductor	Soft annealed bare copper, Class B stranding per ASTM B8
Insulation	Polyvinyl chloride (PVC) insulation over with a nylon (polyamide) jacket applied
Ground Wire	Soft annealed bare copper, Class B stranding per ASTM B8
Assembly	Three or more conductors will be cabled round with fillers and a nylon rip cord is put under the jacket for ease of stripping
Jacket	Heat retardant, moisture and sunlight resistant PVC
Color	Upon request, black is preferable

Parameters

Insulation thickness	16-12AWG	PVC 15mils(0.38mm)	Nylon 4mils(0.10mm)
	10AWG	PVC 20mils(0.50mm)	Nylon 4mils(0.10mm)
