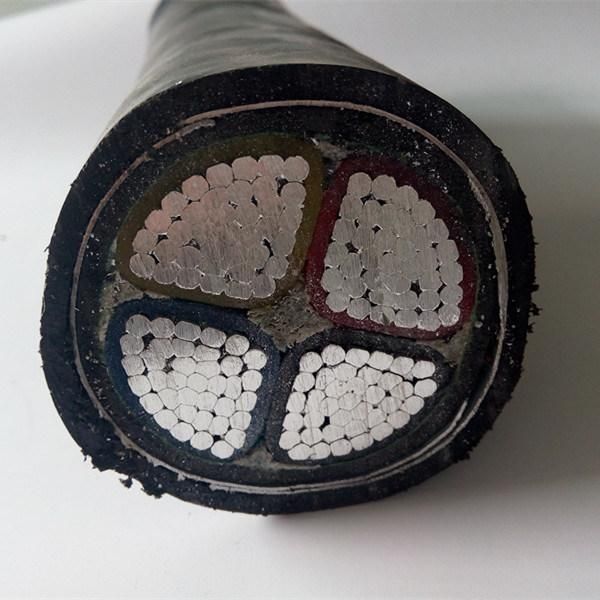

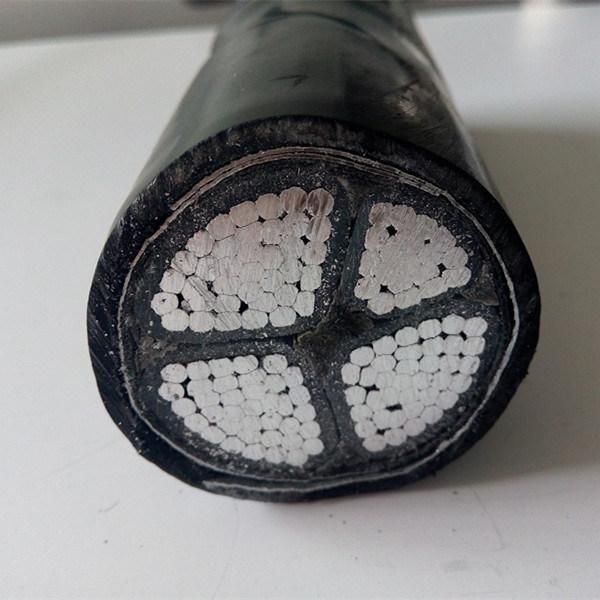

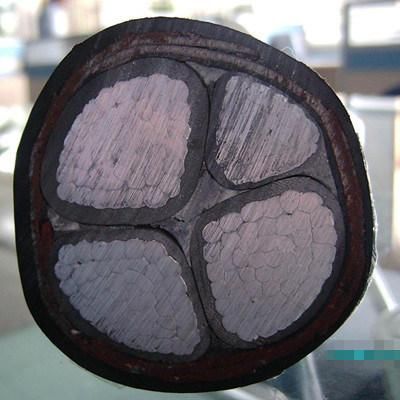

0.6/1kV Multicore XLPE Insulated Double Steel Tape Armour Aluminum HGE Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：HGE Cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Model：Hge Cable
- Brand：Yifang
- Cores：3+1
- Standards：NFC 32-321, IEC 60502-1
- Sheath Color：Black
- Armour：Double Galvanized Steel Tape
- Transport Package：Drum, Steel Drum
- Specification：3X95+150 Sqmm
- Trademark：Yifang cable
- Origin：Zhengzhou Henan
- HS Code：8544492100
- Production Capacity：5000km,Year
Description
Nominal Thickness Phase Core Earth Core No 50 25 1.0 0.9 1.0 2 0.2 1.9 28.6 70 35 1.1 0.9 1.2 2 0.2 2.0 33.2 95 50 1.1 1.0 1.2 2 0.5 2.2 38.7 120 70 1.2 1.1 1.2 2 0.5 2.3 42.0 150 70 1.4 1.1 1.4 2 0.5 2.5 47.0 185 95 1.6 1.1 1.4 2 0.5 2.6 51.7 240 120 1.7 1.2 1.6 2 0.5 2.8 57.8 300 150 1.8 1.4 1.6 2 0.5 3.0 63.0
