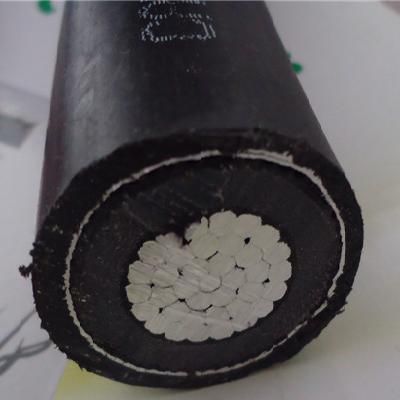

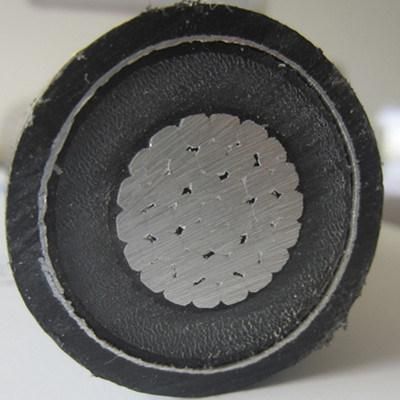

Cis Hta Cable 12/20kv 1X240mm2 Al/XLPE/HDPE Direct Burial Cable Underground Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：HDPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cis Hta Cable
  • Wire Core Material：Al
  • Certification：ISO, CCC, CE, RoHS, UL, VDE, KEMA
  • Model：Overhead Cable
  • Brand：Yifang Cable
  • Cores：3 Core or 3 Core with Neutral Messenger Wire
  • Standard：NFC 33226
  • Color：Black
  • Armour：Longitudinally Aluminum Tape
  • Transport Package：Steel Drum
  • Specification：1x240mm2
  • Trademark：Yifang cable
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：3000km,Year

Description

Construction characteristicsConductor flexibilityStranded class 2Conductor shapeCircular stranded (RM)Material of the inner semi-conductorExtrudedInsulationXLPE (chemical)Material of the external semi-conductorExtruded strippable grooved elastomerMaterial used for longitudinal water tightnessSwelling powderScreenLongitudinal aluminium tapeMechanical characteristicsCable flexibilityRigidCis Hta Cable 12/20kv 1X240mm2 Al/XLPE/HDPE Direct Burial Cable Underground Cable
