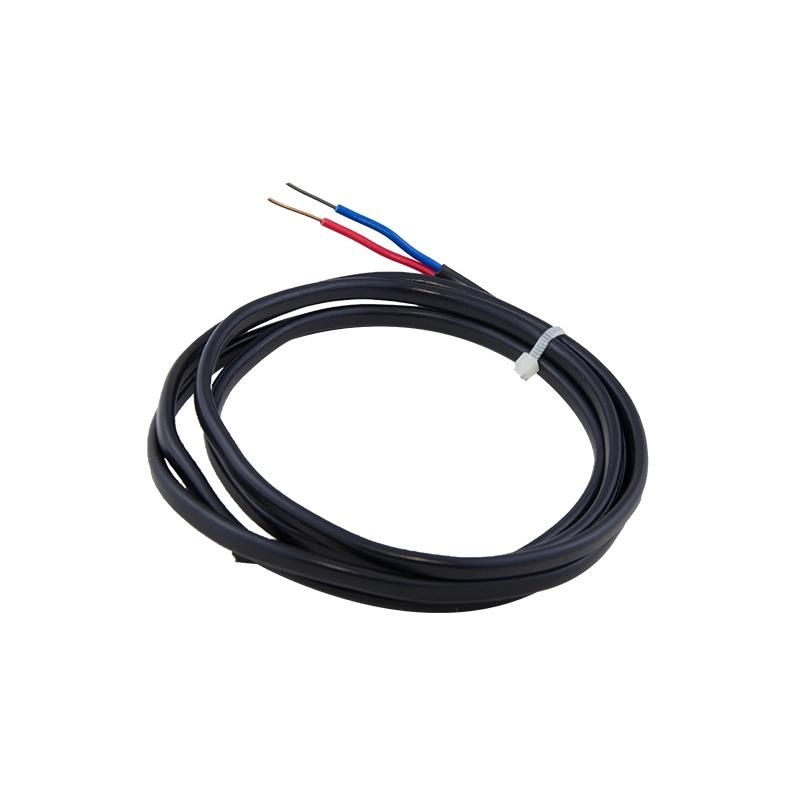

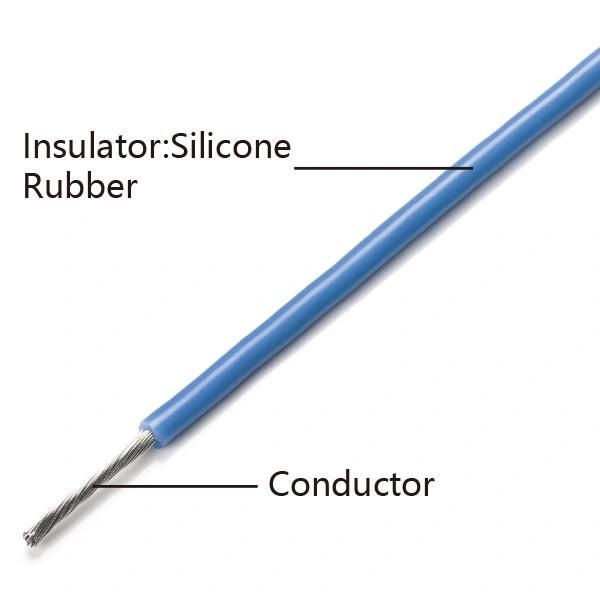

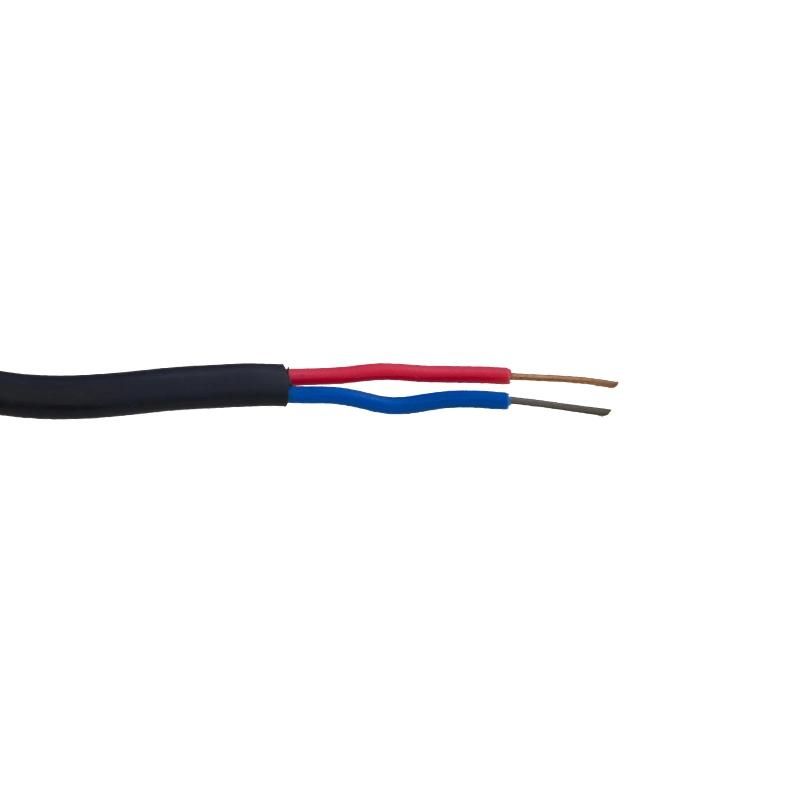

Sulicone Rubber Insulation Tinned, Silver or Nickel Plated Wire Cable
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper Wire
- Sheath Material：Sulicone Rubber
- Insulation Material：Teflon
Base Info
- Model NO.：Sulicone Rubber Insulation Tinned copper wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：PFA
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+200c
- Rated Voltage：300V,500V
- Od Tolerance：+,-0.1mm
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Transport Package：Wooded Case, Carton
- Specification：0.7-7.7mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
InsulationElectrical Properties Packing Sectional
Area mm² Conductor
Construction
NO.XΦmm Diameter
mm Insulation
Thickness
mm Outer
Diameter
mm Max.Conductor
Resistance DC 20'C
Ω/km M/coil 0.30 16x0.15 0.70 0.60 1.90 71.2 200 0.50 28x0.15 1.00 0.60 2.20 40.1 200 20x0.18 1.00 0.60 2.20 40.1 200 0.75 42x0.15 1.20 0.65 2.50 26.7 200 24x0.20 1.20 0.65 2.5 26.7 200 1.0 32x0.20 1.30 0.70 2.70 26.7 200 1.5 30x0.25 1.60 0.70 3.00 13.7 100 2.5 49x0.25 2.10 0.70 3.50 8.21 100 4.0 56x0.30 2.90 0.70 4.30 5.09 100 6.0 84x0.30 3.60 0.80 5.20 3.39 100 10.0 84x0.40 4.80 1.00 6.80 1.95 100 16.0 126x0.40 5.80 1.10 8.00 1.24 100 25.0 210x0.39 7.70 1.50 10.7 0.795 100
Area mm²
Construction
NO.XΦmm
mm
Thickness
mm
Diameter
mm
Resistance DC 20'C
Ω/km
