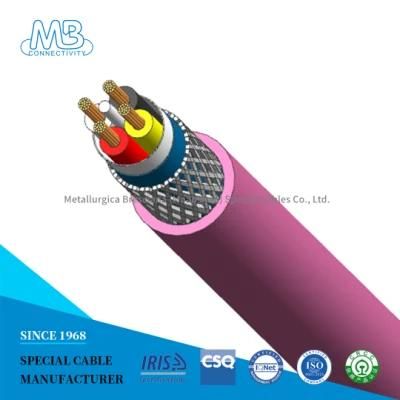

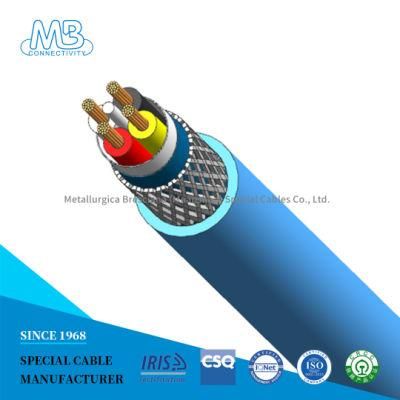

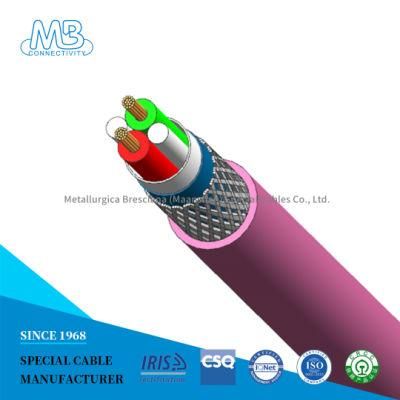

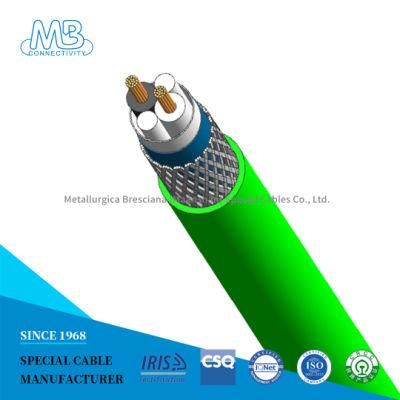

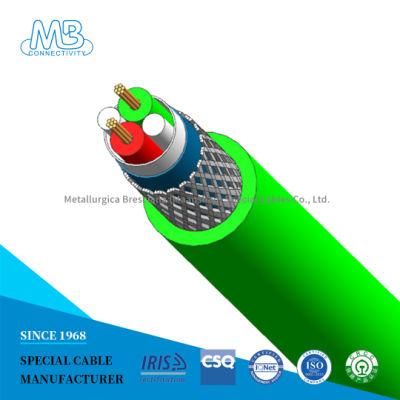

• Model NO.：CAN-BUS 2x0.50mm2
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, Iris Certificate

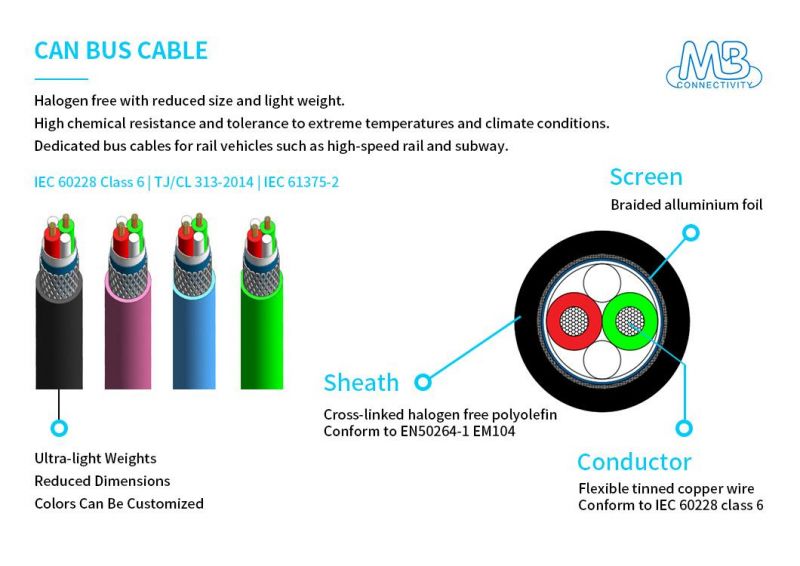

• Cable Structure：Twisted
• Insulation Diameter：2.3mm
• Filling Material：PE
• Shield Material：Aluminium Foil
• Shield Coverage：Min.90%
• Casing Diameter：7.0mm
• Casing Thickness：0.6mm
• Working Temperature：-40 ~ +90ºC
• Usage：Automation,Manufacturing Process,Integrated Wiring
• Color：Black or Customized
• Guideline：Tj,Cl 313-2014, IEC 61375-2
• MOQ：100 Meters
• Transport Package：Drum,Bobbin,Coil
• Specification：76kg,km
• Trademark：METALLURGICA BRESCIANA
• Origin：Anhui, China
• Production Capacity：1000000meters,Month

Mechanical Physical PropertiesWorking temperature range-40 ~ +90ºCOperating voltage250VWeight76kg/kmMinimum bending radius (fixed)56mmSheath tensile strenght≥10MPaSheath elongation≥125%Sheath aging conditions120x240ºCxhChange rate of sheath tensile strength≤30%Sheath elongation resistance rate of change≤30%Sheath thermal extension test conditions200x15ºCxminThermal extension test mechanical stress20N/cm2Elongation rate under load in hot extension test≤100%Hot elongation test elongation rate when unloading≤25%High frequency electrical performanceCharacteristic impedance (Z0)120±12Ω (0.75~3MHz)Attenuation (ATT)1.5dB/100m Max. (1.5MHz), 2(3MHz)

Production Line

Company Profile

Our Customers

The quality of cables we are making are the key factor for the safety of mass transportation. We are dedicated to the satisfaction and success of every customer.

Q1: Are you the real factory?
A:Yes, we are one of the production plant of our international company.

Q2: What is your main products?
A:Cables for different industries and uses. We offer customized solutions.

Q3: What is your delivery time?
A: Withing 15 days for about 30km of standard product. Time is variable for special solutions.

Q4: MOQ: what is your minimum quantity?
A: 300 meters.

Q5: Package & Shipping & Delivery
A: For large orders:  customized.
