• Model NO.：YR6416
• Name：Fiber Fault Locator,OTDR

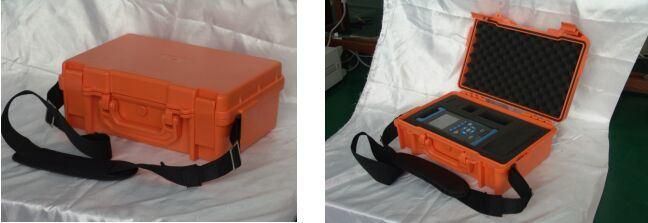

• Transport Package：Bag
• Specification：IEEE1138
• Trademark：Powtech
• Origin：China
• Production Capacity：1000PCS,Month

Dynamic rangeSee details in "Technical specifications of YR16-2101 OTDR standard modules"Distance accuracy±(0.75m+sampling spacing+0.0025%×distance) (excluding refractive error)Distance resolution0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32mDistance range

0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512km (single-mode);

0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 (850nm multimode)

Pulse width

5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480ns

5, 10, 30, 80, 160, 320, 640, 1280 (850nm multimode)

Loss threshold0.01dBSampling points256kLinearity0.03dB/dBLoss resolution0.001dBStorage capacity≥800 (within the instrument),≥65500 (2G SD card)Refractive index setting range1.00000~2.00000 (step: 0.00001)Distance unitkm, m, K ft, ftDisplay640×480, 6.5 inch TFT color LCD (touch screen)Optical output connectorFC/UPC (standard; options: LC/UPC, SC/UPC, ST/UPC)Interface languageSimplified Chinese, English, Russian, Korean (can contact the Service for other languages) External interfacesUSB, Min-USB, Ethernet, earphone, SDPower supply

AC/DC adapter: AC100V~240V, 50/60Hz, 1.5A

DC: 19V±2V(2A)

Built-in lithium battery: 14.8V, 4400mAh, battery service time: 8 hours (room temperature, low brightness) (room temperature, low brightness)

Maximum power consumption10WDimensionsW×H×D=186mm×295mm×75mmWeightAbout 2.5kg

Environmental suitability

Operating temperature: 0ºC~40ºC (battery charging: 5ºC~40ºC)

Storage temperature: -40ºC~70ºC (battery not included)

Relative humidity: 5%~95%, non-condensing
