• Model NO.：ADSS-48B1-100M
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Optelec
• Sheath Material：PE Sheath
• Compliance：IEEE1222
• Span：200m
• Fiber Count：12fibers to 144fibers
• Rts：5kn to 125kn
• Transport Package：2km,Reel, 3km,Reel, 4km,Reel
• Specification：IEEEP1222, SGS, ISO
• Trademark：Powtech
• Origin：Qingdao, China
• HS Code：8547
• Production Capacity：500km,Month

Basic Info.

Model NO. ADSS-48B1-100M Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Optelec Sheath Material PE Sheath Compliance IEEE1222 Span 200m Fiber Count 12fibers to 144fibers Rts 5kn to 125kn Transport Package 2km/Reel, 3km/Reel, 4km/Reel Specification IEEEP1222, SGS, ISO Trademark Powtech Origin Qingdao, China HS Code 8547 Production Capacity 500km/Month

Product Description

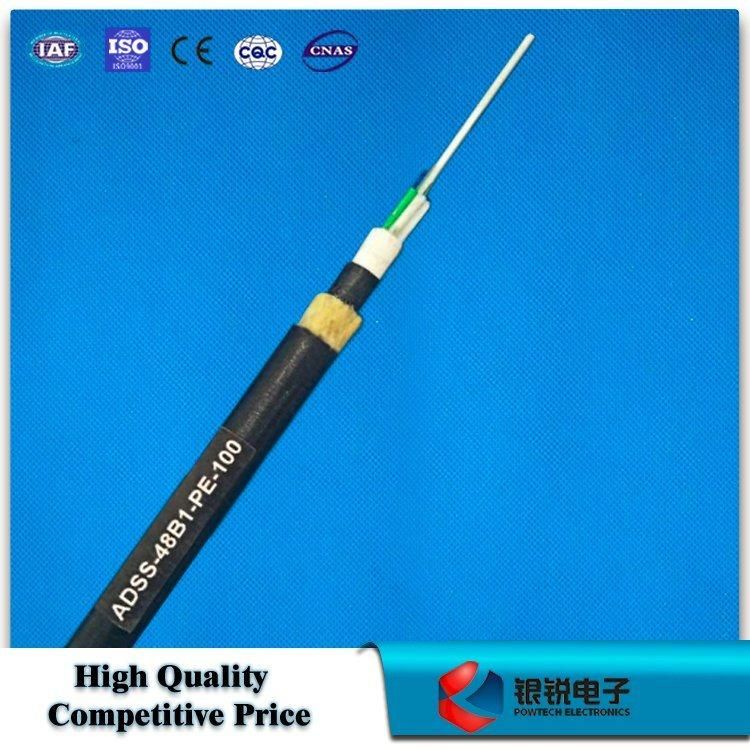

ADSS Cable


Model: All Dielectric Self-supporting Aerial Cable

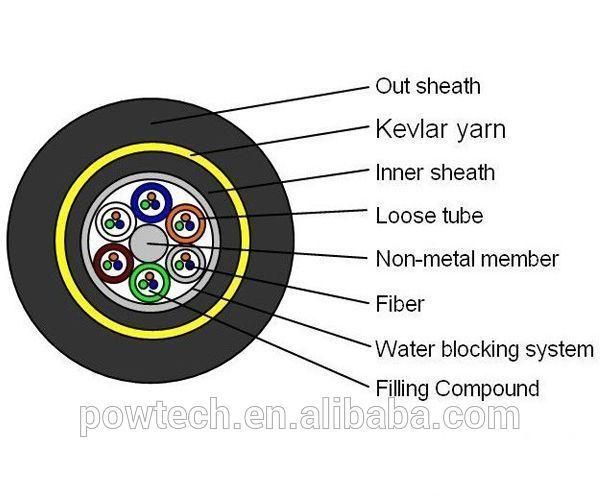

Drawings:

Application:
. Erect on the same pole with power line in new and old power line.
. A long span
. Areas of strong electric field, multi-thunder, etc

Characteristics:
. Small cable Dia, light weight, 1, 500m span, low attached load on tower.
. Tension strength is over 90KN.
. Non-metal structure, good insulation, anti-thunder.
. Fine production technology, even force for aramid fiber, with superior stress flexibility.
. Anti gun fire.
. Anti electro-corrosion.
. Adapt for bad climate.
. May construct without power cut, a power line failure doesn't influence cable's normal transfer.
. Loose cover GYTA cable core, non-metallic core reinforced.
. Tension units are elastic modulus aramid fiber.
. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤ 25KV/m.
Technical Specifications:

Item	ADSS-100M	ADSS-200M	ADSS-400M	ADSS-700M	ADSS-1000M	ADSS-1300M
Max. Span	50m ~ 100m	100m ~ 200m	200 to 400m	500 to 700m	800 to 1000m	1100 to  1300m
RTS	5.0KN	12.0KN	25.0KN	45.0KN	77.5KN	125.oKN
MAT	2.0KN	4.8KN	10.0KN	18.0KN	31.0KN	50.0KN
Fiber	24fiber/48fiber /72fiber	24fiber/48fiber /72fiber	24fiber/48fiber /72fiber	24fiber/48fiber /72fiber	24fiber/48fiber /72fiber	24fiber/48fiber /72fiber
Diameter (mm)	12.1/12.7/14	12.3/12.9/14.1	12.7/13.3/14.5	13.3/13.9/15	14.5/14.9/16	16.2/16.6/17.5
Weight (kg/km)	115/125/150	119/130/155	129/140/164	144/155/179	169/179/203	207/217/240

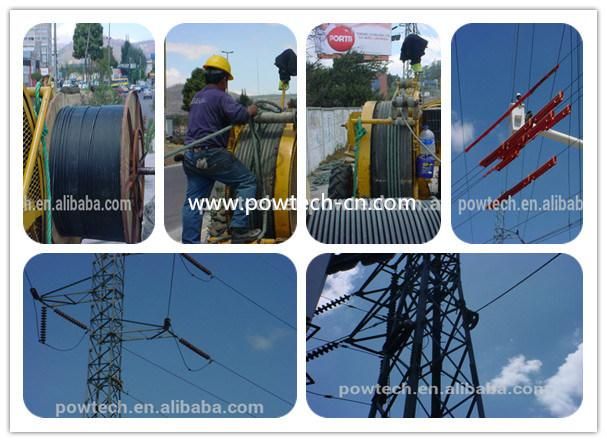

Installation Guide:

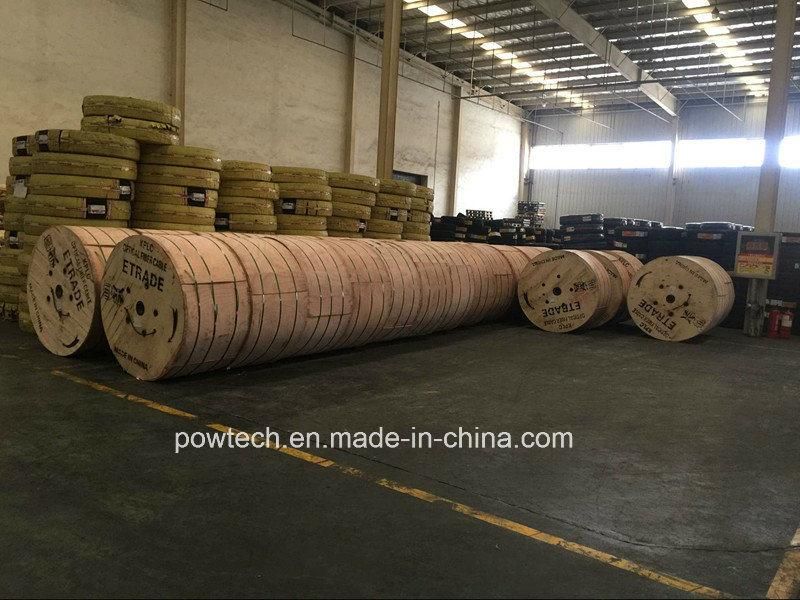

Package&Shipment:

Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?
1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated


FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.

Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.

Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.

Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.

Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.

Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
