200c 600V Multi FEP Insulated Electrical Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：FF
- Material Shape：Round Wire
- Range of Application：Internal Wiring
- Certification：ISO9001, CE, UL, CCC, RoHS, CSA
- Brand：Fongming
- Name：200c 600V Multi FEP Insulated Cable
- Rating Voltage：600V
- Working Temperature：200c
- Color：as Required, Red, Green, Yellow, Blue
- Sample：3 Meters Free, 3 Days
- Customize：Available
- MOQ：1000 Meters
- Transport Package：305m Per Roll, Carton Box Outside
- Specification：2*18~7*14AWG
- Trademark：Fongming
- Origin：Yangzhou, P. R China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. FF Material Shape Round Wire Range of Application Internal Wiring Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name 200c 600V Multi FEP Insulated Cable Rating Voltage 600V Working Temperature 200c Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 2*18~7*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product Description200C 600V Multi FEP Insulated Cable
Description
Name: 200C 600V Multi FEP Insulated Cable
Model: FF
Size: 2*18~7*14AWG
Feature
Ratings Voltage: 600V
Rated Temperature: 200C

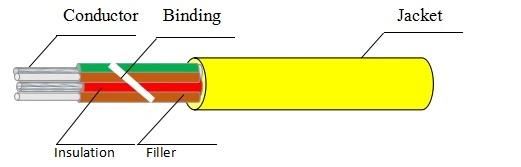

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.51 | 4.4±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.51 | 4.7±0.2 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.51 | 5.1±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.51 | 5.6±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.51 | 5.8±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.51 | 6.1±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.51 | 5.0±0.3 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.51 | 5.4±0.3 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.51 | 5.9±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.51 | 6.5±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.51 | 6.7±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.51 | 7.1±0.4 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.51 | 5.8±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.51 | 6.2±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.51 | 6.8±0.3 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.51 | 7.5±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.51 | 7.7±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.51 | 8.2±0.4 |
