ABC Cable Copper Conductor Insulated Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Construction, Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE
- Brand：Dayuan
- Transport Package：Use The Drum, We Can Make as Customer Requirement
- Specification：we can make as customer requirement
- Trademark：DAYUAN
- Origin：China
- HS Code：85444929
- Production Capacity：10000 Meters,Day
Description
ANSI/ICEA S-76-474Type Bare Conductor Code Word Ampacity Insulation Thickness Nominal Diameter Rated Strength Bare OD mils mils mils lbs A Duplex Service Drop AAC Pekingese 45 162 252 563 78 Collie 45 183 273 563 78 Cocker 60 183 303 563 78 Dachshund 45 204 294 881 103 Spaniel 45 231 321 881 103 Cairn 60 231 351 881 103 Doberman 45 292 382 1350 136 Airedale 60 332 452 --- 158 Basset 60 368 488 1990 182 Malemure 60 372 492 1990 182 AAAC Chihuahua 45 162 252 1100 78 Vizsla 45 183 273 1100 78 Harrier 45 204 294 1760 103 Whippet 45 231 321 1760 103 Schnauzer 45 292 382 2800 136 Afghan 60 368 488 4460 182 heeler 60 372 492 4460 182 ACSR Setter 45 162 252 1190 78 Shepherd 45 183 273 1190 78 Retriever 60 183 303 1190 78 Eskimo 45 204 294 1860 103 Terrier 45 231 321 1860 103 Yorkshire 60 231 351 1860 103 Chow 45 292 382 2850 136 Labrador 60 332 452 3550 158 Bloodhound 60 368 488 4380 182 Bull 60 372 492 4380 182
Packaging & Shipping
Customer Coming
Welcome come our factory at any time! we trust you will like it!
Contact us:
Max Shang (Sales Manager)
Luoyang Da Yuan Cable Factory Co., Ltd.
Tel: +86-0379-69991591
Mobile: +86-13803889574

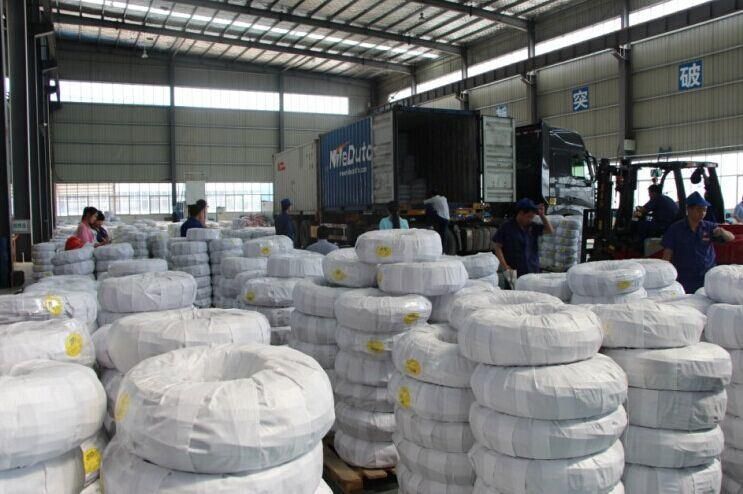

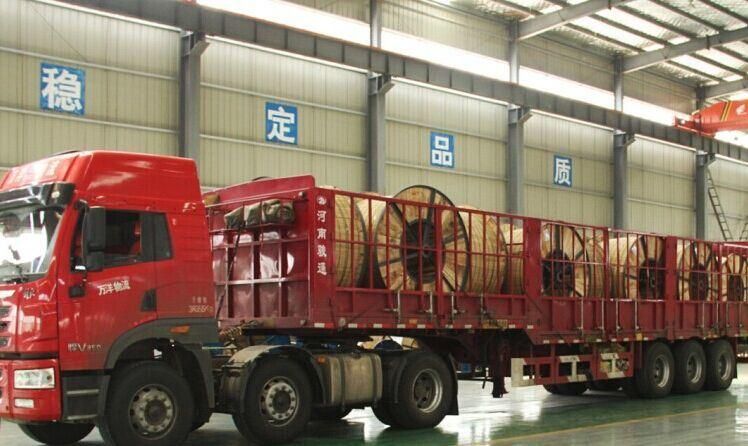

Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
