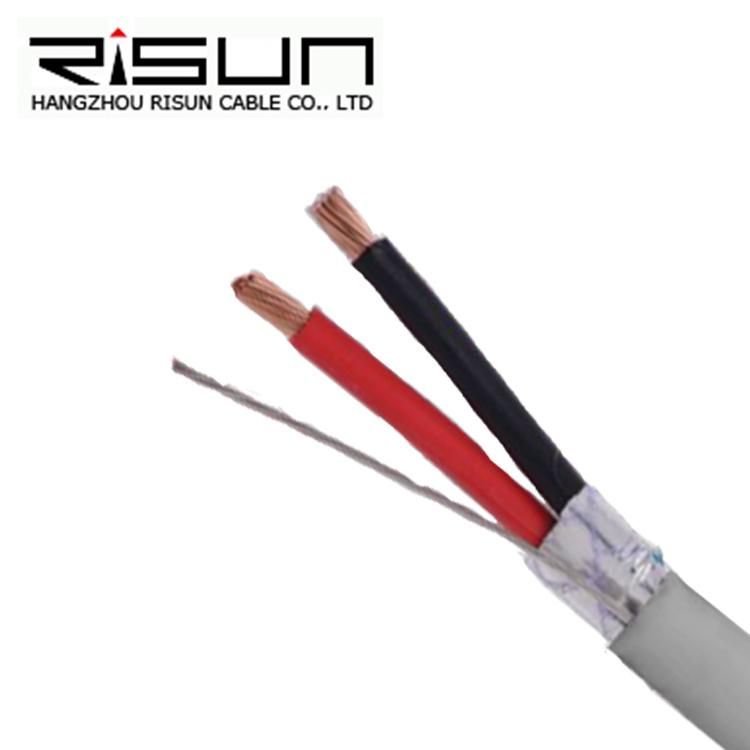

2 Core 20 AWG Shielded Multi Conductor Control Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Bus Cable
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Color：Red , Black
  • Inner Conductor：20AWG
  • Nom. Thick：1.32mm
  • Export Length：100m,Roll, 305m,Drum
  • Pairs：1 Pairs
  • Transport Package：Carton Box, Pallet
  • Specification：2 Core 20 AWG Shielded Multi Conductor Cabl TC PVC
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

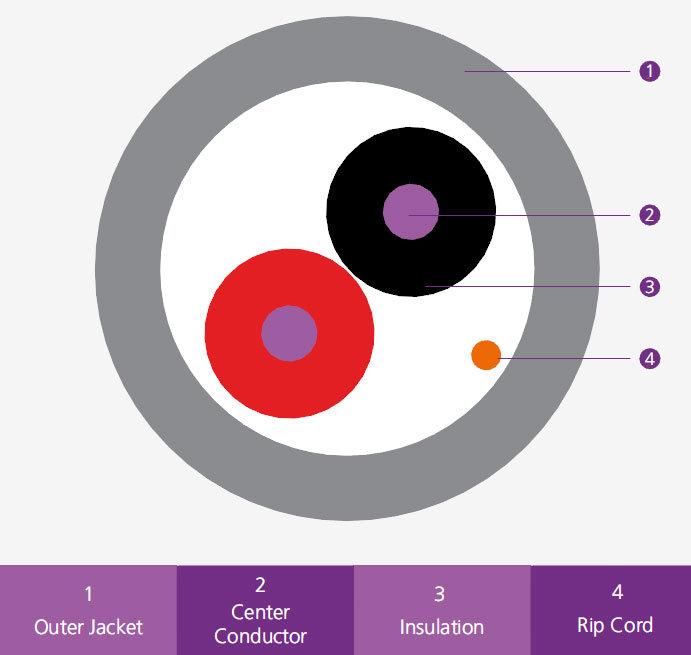

ConductorShielding Outer  JacketBare Copper100% Aluminum Foil Polyester TapePVC(Polyvinyl Chloride)/LSZHInsulationDrain WireJacket ColorPE(High Density Foam Polyethylene)Tinned copperGrey

2 Core 20 AWG Shielded Multi Conductor Control Cable
2 Core 20 AWG Shielded Multi Conductor Control Cable

PHYSICAL CHARACTERISTICS
CharacteristicValue
No.of conductor2
Conductor Size 20AWG,7*38AWG(0.32mm)
Insulation Diameter1.32mm)
Drain Wire Size22AWG,7*30AWG(0.25mm)
Jacket Thickness0.44mm
Jacket Diameter3.50mm
Max.Recommended Pulling Tension80N
Min.Bending Radius Minor Axis28.0mm
Operating Temperature-10°C to +60°C

Electrical  Characteristics
CharacteristicUnitValue
Nom.Conductor DCRΩ/km33.8
Dielectric Strength between PairsKV/5min1.5
Max.Operating Voltage V/min300

Mechanical Characteristics
CharacteristicValue
Test MaterialPVC/LSZH
Before Tensile Strength (Mpa)≥ 13.8
Aging Elogation(5%)≥ 100
After Tensile Strength(Mpa)≥ 10.35
Aging Elongation(%)≥ 75
Cold Bend (-20±°C x 4 hrs)No Crack

Insulation Colour Code
Individual PairColour
Core1Red
Core2Black
 2 Core 20 AWG Shielded Multi Conductor Control Cable

Application:

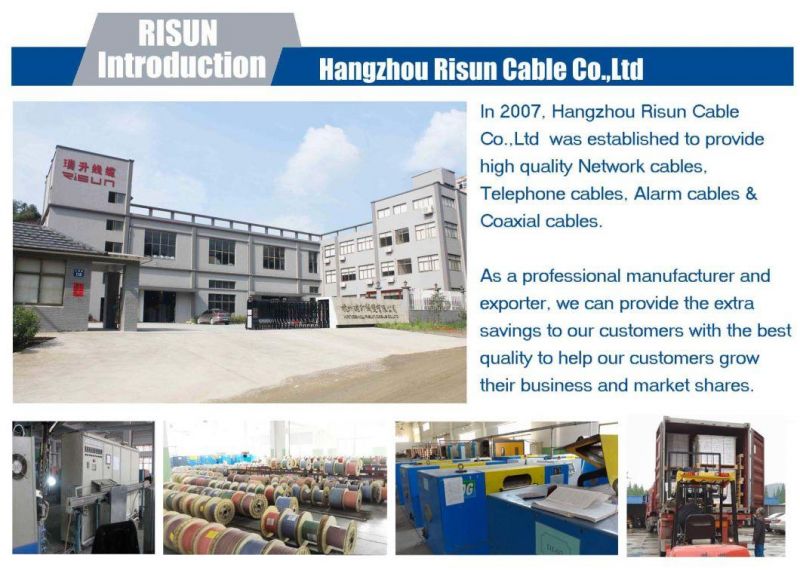

2 Core 20 AWG Shielded Multi Conductor Control CableCompany Introduction
2 Core 20 AWG Shielded Multi Conductor Control Cable
2 Core 20 AWG Shielded Multi Conductor Control Cable


Packing:

2 Core 20 AWG Shielded Multi Conductor Control Cable


2 Core 20 AWG Shielded Multi Conductor Control Cable

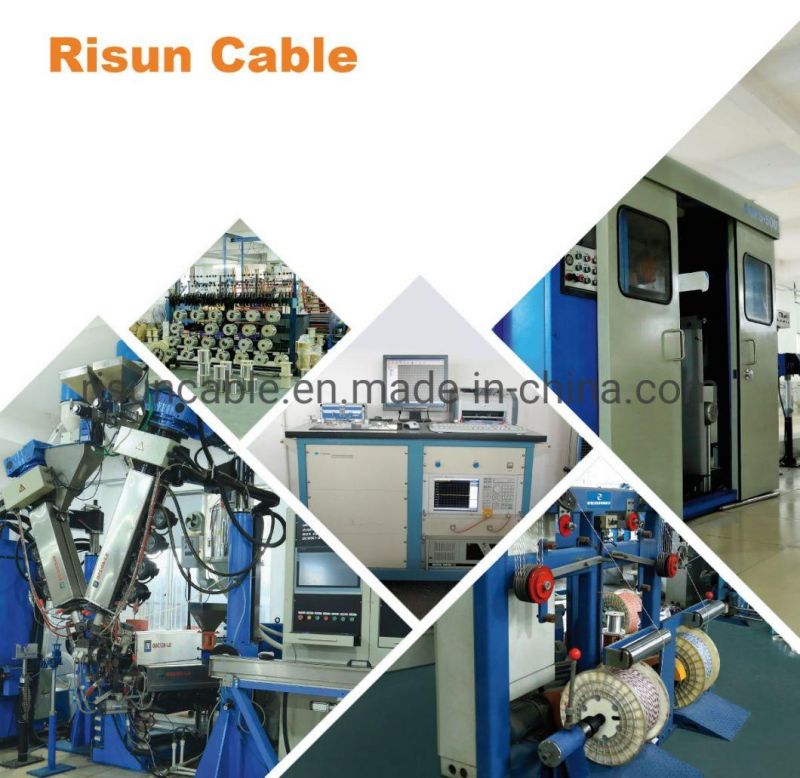

Production line:
2 Core 20 AWG Shielded Multi Conductor Control Cable


FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
