3X35mm2 4X25mm2 Multi Core Aluminum Copper Armored XLPE PE Power Cable
Henan Hongda Cable Co., Ltd.- Application：Industrial
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YJLV
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：Yjv32
- Brand：Hongda
- Standard：IEC60227
- Transport Package：Steel Wooden Drum
- Specification：3*35mm
- Trademark：hongda
- Origin：Henan,China
- HS Code：8544492100
- Production Capacity：10km,Day
Description
TYPE
NAME
Main Application
CU core
AL core
YJV/YJY
YJLV/YJLY
XLPE insulated,PVC/PE sheathed power cable
For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23
YJLV22/YJLV23
XLPE insulated,steel tape armored,PVC/PE sheathed power cable
For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33
YJLV32/YJLV33
XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable
For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43
YJLV42/YJLV43
XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable
For laying in water and seabed.Able to bear positive pressure and pulling force
6. Advantage:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs
Rated Voltage,Core Numbers & Nominal Cross-section Area:
U0/Um(kv) |
|
No.of Core |
1st class
0.6/1
1.8/3
3.6/6
2nd class
1/1
3/3
6/6
1 Core
Section
area(mm2)
1.5-800
25-800
25-800
2 Core
Section
Area(mm2)
1.5-185
/
/
3 Core
Section
area(mm2)
1.5-400
25-400
25-400
4 Core
Section
Area(mm2)
2.5-400
25-400
/
5 Core
Section
area(mm2)
2.5-400
25-400
/
All above can do as every different standards OR as your special request

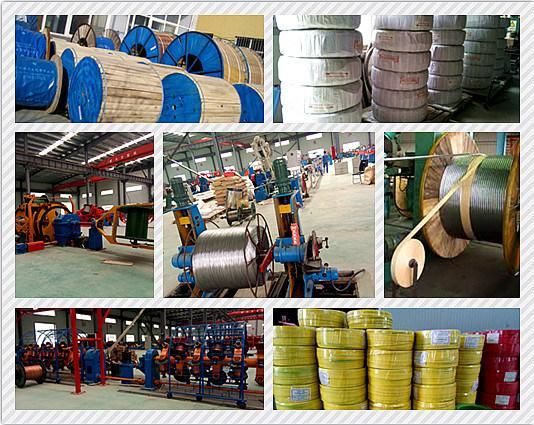

Company Information
