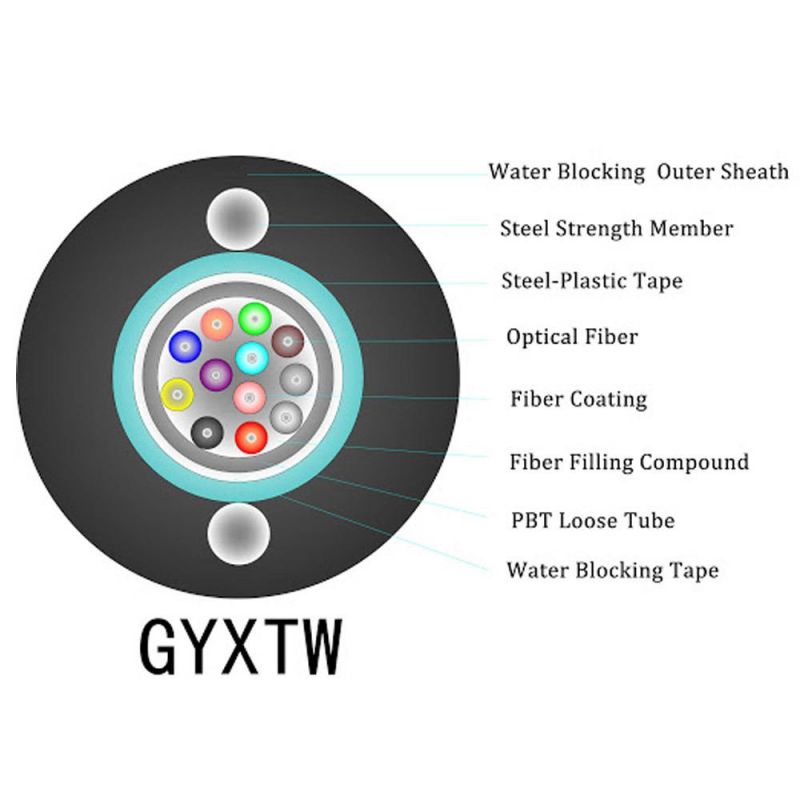

Direct Burial G652D GYXTW Fiber Cable

Hangzhou Softel Optic Co., Ltd.
  • Application：Fiber Optic Cable
  • Conductor Material：Fiber
  • Cover Material：PE
  • Type：G652D
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：GYXTW Fiber Cable
  • Wire Core Material：Steel
  • Certification：CE, ISO
  • Model：MHYV-xx
  • Apply for：Aerial, Duct ,Direct Burial
  • Fiber Count：12cores
  • Cable Type：Sm or Mm
  • Fiber Type：G652,G655
  • Material of Jacket：MDPE,HDPE
  • Fiber Optic Cable Tube：Central Loose Tube
  • Model Name：Fiber Optic Cable
  • Model No.：GYXTW
  • Delivery Time：10 Days
  • MOQ：2 Drum
  • Transport Package：4km Wooden Drum
  • Trademark：SOFTEL
  • Origin：China
  • HS Code：85176229
  • Production Capacity：1000km Per Month

Description

Fiber
count
 Cable
dia.(mm)Cable net
weight(Kg/km)Min. bending
radius(mm)Min. tensile
strength(N)Min. crush
pressure(N/100mm)Static stateDynamic
stateShort termLong termShort termLong
term2-610.1104110220150060010003008-1210.61141102201500600100030014-2411.212812024015006001000300Direct Burial G652D GYXTW Fiber Cable
