• Model NO.：RG6 RG11 RG8
• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, UL
• Model：RG6
• Brand：Libo or OEM
• Color：Black or White
• Braiding：40%~100%
• Inner Conductor：Bc or CCS
• Transport Package：100,200m,305,1000FT, According to Client′s Reque
• Specification：RG6
• Trademark：LIBO or OEM
• Origin：China
• HS Code：854420000
• Production Capacity：12000kms,Month

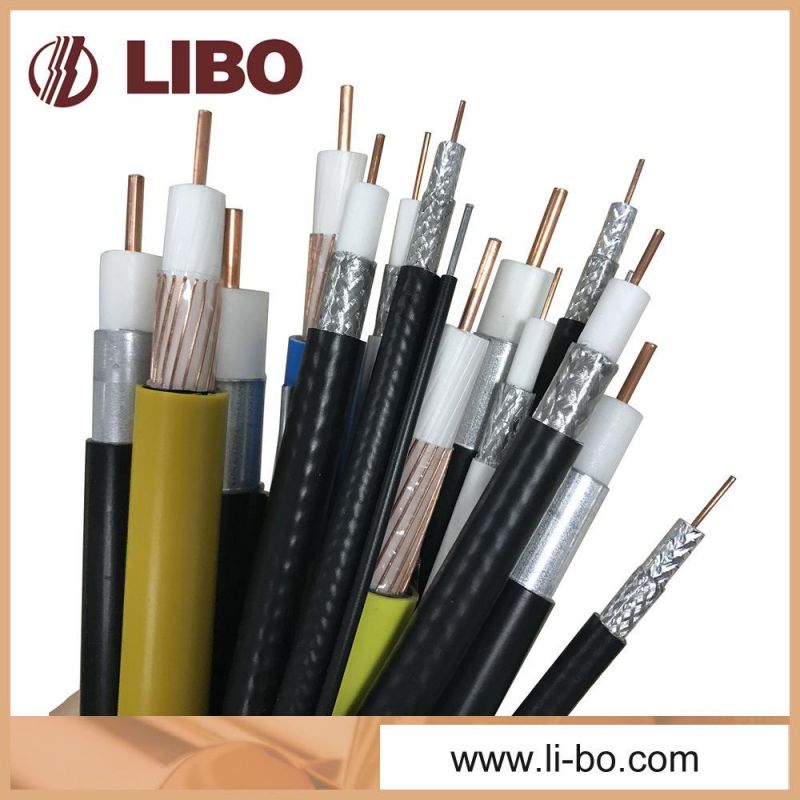

CATV Coaxial Cable RG6 Standard Shield PE Jacket 34 AWG Aluminum Wire Braiding

RG6 Drop Cable
18AWG CCS
Polyethylene Insulation
Bonded aluminum PET foil
60% braiding coverage
Standard shield
PE / PVC jacket



Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PE jacket.

Applications:

F660 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18 AWG copper clad steel

Nominal diameter: 0.040 inches(1.02mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.180inches (4.57mm)

Shield:

1^st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.187 inches (4.57mm)

2st shield: 34 AWG aluminum braid wire, 60% coverage.

PE or PVC Jacket:

Nominal diameter over jacket: 0.272 inches (6.91mm)

Nominal jacket thickness: 0.030 inches (0.76mm)

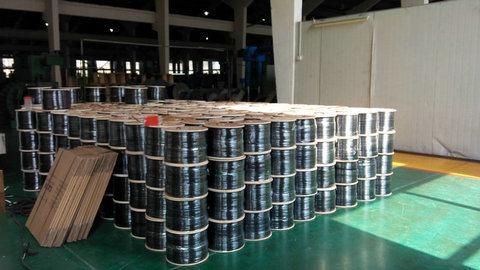

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.58

1.90

55MHZ

1.60

5.25

83MHZ

1.95

6.40

187MHZ

2.85

9.35

211MHZ

3.05

10.00

250MHZ

3.30

10.82

300MHZ

3.55

11.64

350MHZ

3.85

12.63

400MHZ

4.15

13.61

450MHZ

4.40

14.43

500MHZ

4.66

15.29

550MHZ

4.90

16.08

600MHZ

5.10

16.73

750MHZ

5.65

18.54

865MHZ

6.10

20.01

1000MHZ

6.55

21.49
