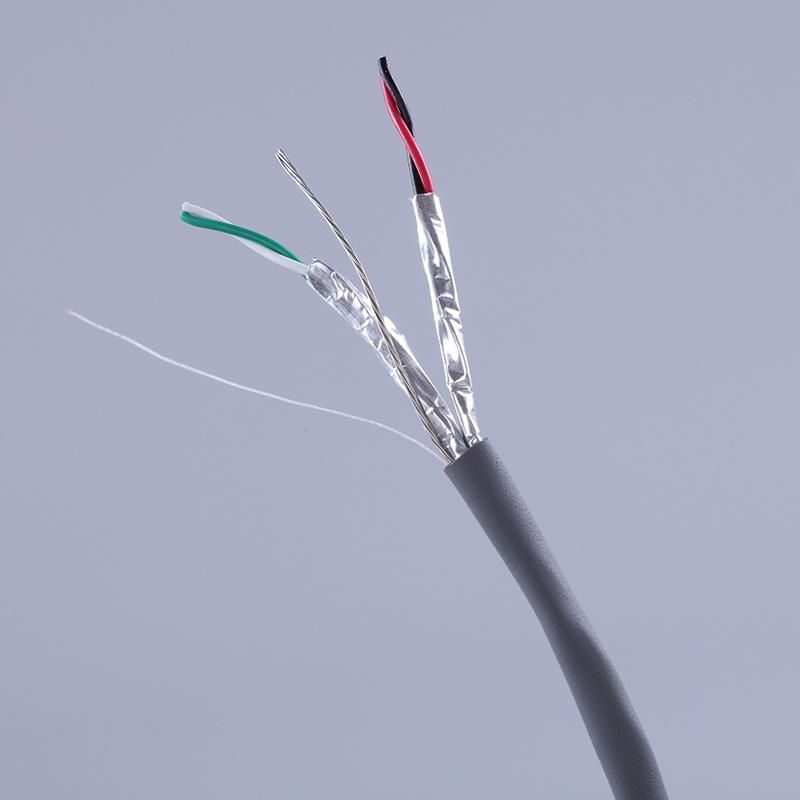

2 Pair 0.33 mm2 Screened Multipair Industrial Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable, Industrial Cable
- Conductor Material:Tinned Copper
- Cover Material:PVC
- Type:Computer Cable
- Material Shape:Round Wire
- Conductor Type:Stranded
Base Info
- Model NO.:Industrial Cable
- Certification:CE, ISO, RoHS, CCC, ETL,CPR
- Model:2 Pair Screened Multipair Industrial Cable
- Brand:Risun or OEM
- Insulation:HDPE
- Conductor:22 AWG Stranded (7X30) Tc Conductors
- Shielded:100% Aluminum Polyester Foil
- Drain Wire:22 AWG Stranded (7X30) Tc
- Transport Package:305m
- Origin:Hangzhou, Zhejiang, China
- HS Code:8544491100
- Production Capacity:20000 Boxes , Month
Description
Basic Info.
Model NO. Industrial Cable Certification CE, ISO, RoHS, CCC, ETL,CPR Model 2 Pair Screened Multipair Industrial Cable Brand Risun or OEM Insulation HDPE Conductor 22 AWG Stranded (7X30) Tc Conductors Shielded 100% Aluminum Polyester Foil Drain Wire 22 AWG Stranded (7X30) Tc Transport Package 305m Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
24 AWG 2 Pair Shielded Low Capacitance Computer Cable
Specifications
Attribute | Value |
Number of Pairs | 2 |
Cross Sectional Area | 0.33 mm² |
Cable Type | Twisted Pair |
American Wire Gauge | 22 AWG |
Outer Diameter | 4.06mm |
Shield Type | U/STP |
Outer Sheath Material | PVC |
Sheath Colour | Chrome |
Characteristic Impedance | 45 Ω |
Core Strands | 7/30 |
Screened/Unscreened | Screened |
Voltage Rating | 300v |
FEATURES:
- Finely Stranded, Tinned copper conductors
- 100% Aluminum polyester foil with a stranded tinned copper drain wire with cables that have individually shielded pairs
- Color coded PVC Insulation
- Grey PVC jacket
APPLICATIONS:
- Computers, Data Transmission
- Industrial Equipment, Control Circuits where total isolation of signal is required
packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
Company Profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
