• Model NO.：GYTC8S fiber optic cable
• Core：Double Core
• Certification：RoHS, ISO9001, Reach
• Sheath Material：LSZH, HDPE, MDPE
• Jacket Material：Black PE
• Messenger Material：Steel Wires
• Installation Style：Aerial Fiber Optic Cable
• Brand Name of Fiber：Corning, Yofc, Draka,...as Your Request
• Loose Tube Material：PBT with Jerry
• Waterblocking Material：Water Blocking Tape or Filling Compound
• Outer Sheath Material：MDPE , HDPE , LSZH
• Armour Material：Corrugated Steel Tape
• Stranding Member：Steel Wire or FRP
• Fiber Count：2-288 Core
• Transport Package：Wooden Drum
• Specification：GYTC8S
• Trademark：TW-SCIE or OEM
• Origin：Dongguan China
• HS Code：8544700000
• Production Capacity：150km,Day

GYTC8S Fiber Optic Cable Technology Specification:Out sheathTight buffer WeightMinimum allowable   Minimum allowable Crush Load   Minimum Bending RadiusStorageDiameterDiameter

TensileStrength(N)
 (N/100mm)(MM) temperature(°C)  (MM)  (MM)  (KG)short termlong Term  short termlong termshort termlong term   -40+602-69.5*18.32181500 6001000300 20D 10D  -40+608-129.5*18.3 218 1500 600 1000 300 20D 10D  -40+6014-189.5*18.3 218 1500 600 1000 300 20D 10D  -40+6020-249.5*18.3 218 1500 600 1000 300 20D 10D  -40+6026-309.5*18.3 218 1500600 1000 300 20D 10D  -40+60 GYTC8S optic fiber cable Optical Characteristics: :Fiber Sort      MultimodeG.651A1a:50/125Graded-index fiber  A1b:62.5/125Singlemode    G.652(A,B,C)B1.1:Conventional fiberG.652D B2: Zero  dispersion shiftedG.655 B1.2 :Cut-off wavelength shiftedG.657(A1,A2 ,B3)  B4: Main technical data for positivedispersion shifted single-mode fiber

Competitive Advantages:

1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING.
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam  telecom, Thai telecom, Singapore telecom, Dubai telecom and  other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service
GYTC8S 6 Core Optical Fiber Cable Main Export Markets
· Central/South America
· Mid East/Africa
· Eastern Europe
· North America
· Asia
· Western Europe
· Australasia


Cable Performance


Item	Testing	Test Method	Test Result
1	Tensile strength IEC 60794-1-E1	Long term: 2500N Short term: 4950N Cable length: ≥50m	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
2	Impact IEC 60794-1-E4	Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
3	Repeated Bending IEC 60794-1-E6	Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
4	Torsion IEC 60794-1-E7	Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
5	Water Penetration IEC 60794-1-F5B	Water height: 1m Cable length: 3m Keeping time: 24hours	No water leaked from the opposite end of cable
6	Temperature IEC 60794-1-F1	Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
7	Compound flow IEC 60794-1-E14	Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours	No compound flow

Why Choose Us:

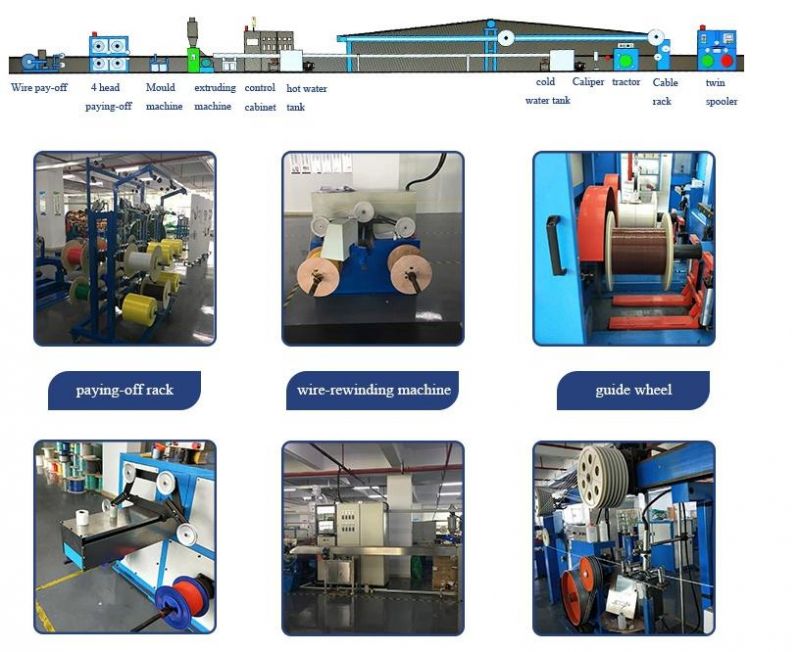

1.Introduction of foreign advanced production equipment and technology, have 20 years production  experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With more than 20 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.
Contact us:
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.

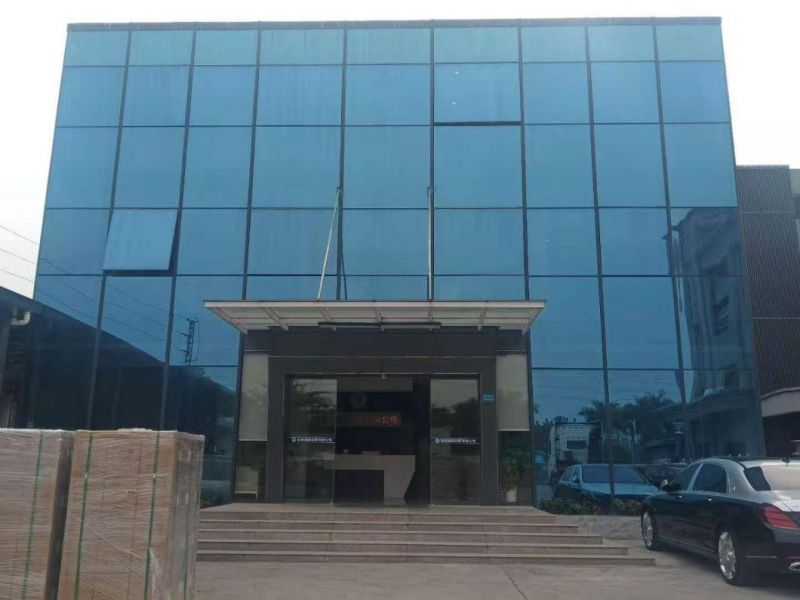

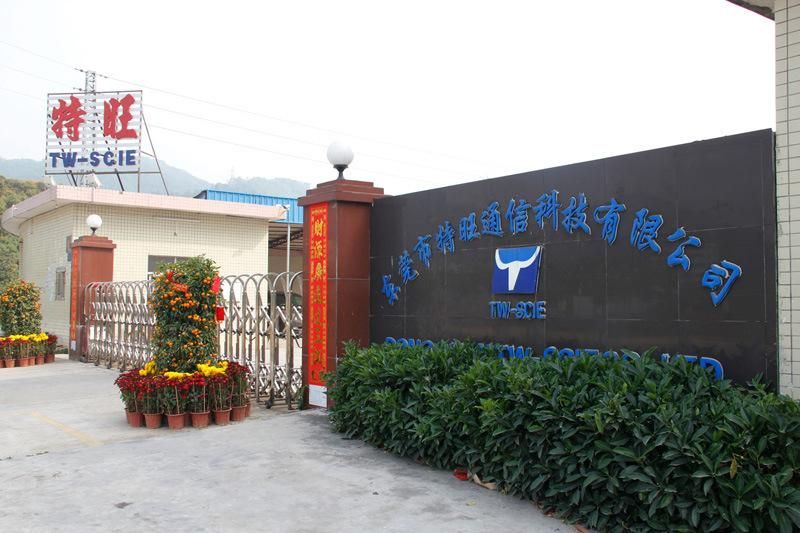

Company Show:





Transportation:
   · All available shipping ways could be applied, by courier, air or sea.
   · Appointed shipping company or our own forwarders all could be used in shipment.
   · Full-way tracking the cargos for you before the goods arrive.



 LOOKING FORWARD TO HEARING FROM YOU!
