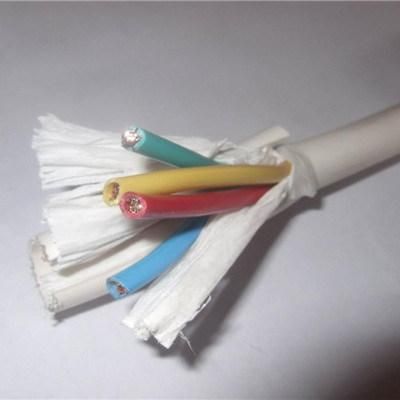

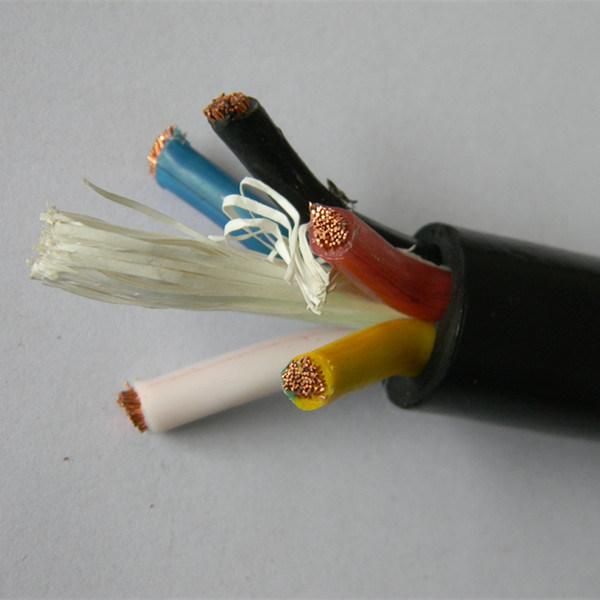

1.5mm2, 10mm2, 16mm2 PVC Insulated and Jacket Flexible Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Flexible Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, UL
- Model：Flexible Wire
- Brand：Yifang
- Sheath Color：Black or White
- Standard：IEC 60227
- Conductor：Class 5 Type Copper Wire
- Core：2~5

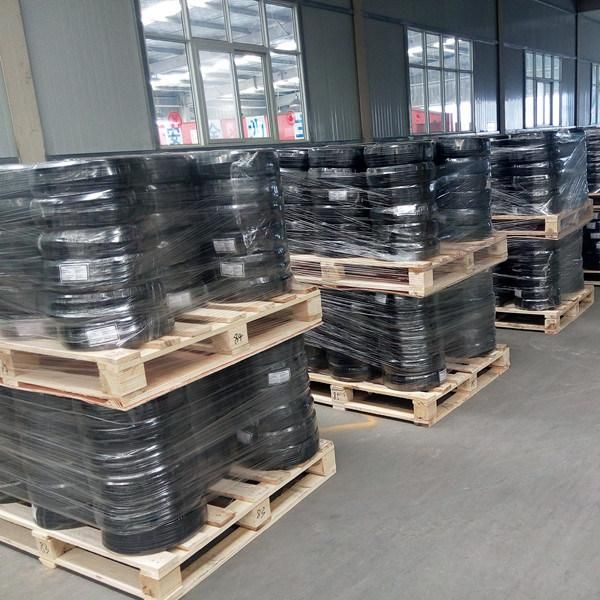

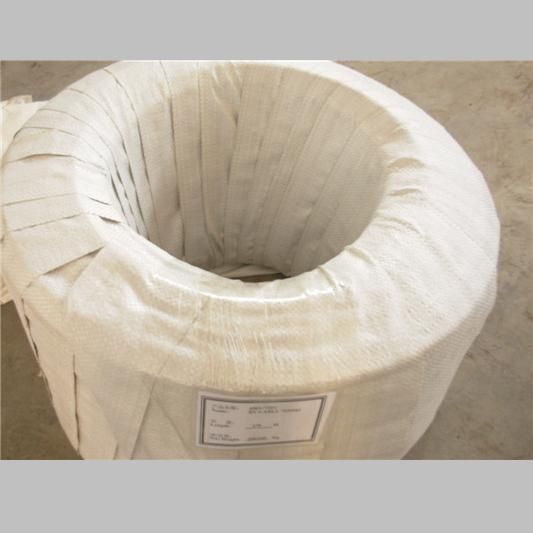

- Transport Package：Coil or Drum
- Specification：1.5 2.5 4 6 10 16 MM2
- Trademark：Yifang cable
- Origin：Henan Zhengzhou
- HS Code：8544492100
- Production Capacity：10000 Kilometer, Year
Description
Basic Info.
Model NO. Flexible Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, UL Model Flexible Wire Brand Yifang Sheath Color Black or White Standard IEC 60227 Conductor Class 5 Type Copper Wire Core 2~5 Transport Package Coil or Drum Specification 1.5 2.5 4 6 10 16 MM2 Trademark Yifang cable Origin Henan Zhengzhou HS Code 8544492100 Production Capacity 10000 Kilometer/ YearProduct Description
1.5mm2, 10mm2, 16mm2 PVC Insulated and Jacket Flexible CableSpecifications:
Twin and Earth cable is a general fixed wiring and lighting cable, containing three conductors.
Standards:
BS 6500
Structure:
Conductor
Annealed copper class 5 flexible condcutor according to IEC60228(BS EN 60228)
Insulation
PVC
Sheath
PVC
Physical and Thermal Properties
Voltage Rating: 300V/500V
Test Voltage: 2000V
Temperature range During operation: 0C - +70°C
Short Circuit: 160°C
Minimum bending radius: 6 X Overall Diameter
Insulation resistance: 20 MΩ x km

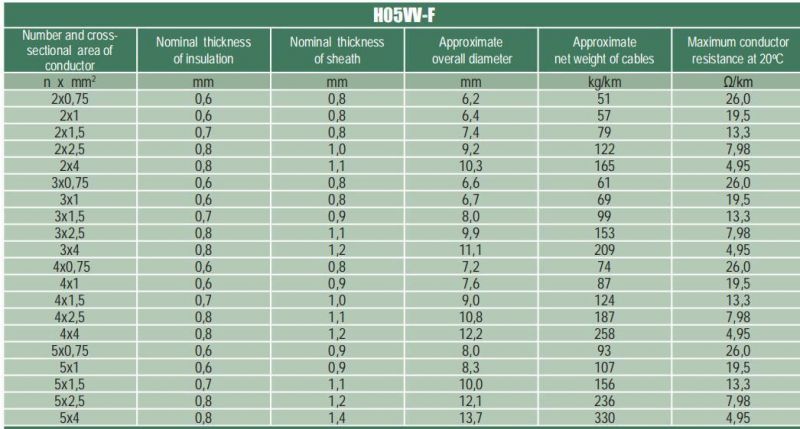

Cable Parameter:
