• Model NO.：THHW-LS Cable
• Range of Application：Equipment or Building
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Yifang
• Conductor：Class1, Class 2
• Cores Number：Single
• Colour：Black or Other as Per Required
• Standard：UL 83
• Transport Package：Coil, Drum, Pallet
• Specification：14AWG-1000 KCMiL
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. THHW-LS Cable Range of Application Equipment or Building Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Yifang Conductor Class1/ Class 2 Cores Number Single Colour Black or Other as Per Required Standard UL 83 Transport Package Coil, Drum, Pallet Specification 14AWG-1000 KCMiL Trademark Yifang cable Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

THW-LS THHW-LS Cable Copper Electric Cable for Equipment or Building

1. Applications
THW-LS and THHW-LS cables and wires are used generally in building wiring, feeder and branch circuits, and internal secondary industrial distribution.

2. Construction

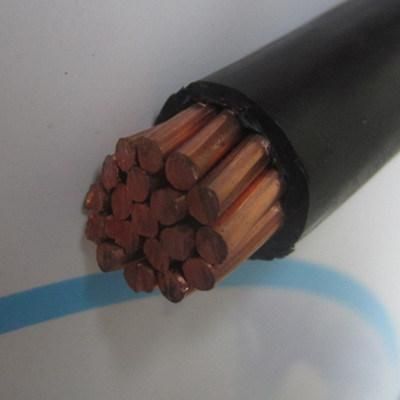

Conductor: Soft Copper, Solid or stranded compacted/compressed
Insulation: THW-LSPVC 75 degree, flame retardant, Low smoke
THHW-LSPVC 90 degree, flame retardant, Low smoke

3. Characteristics
Operating Temperature Dry Locations THHW-LS 90° C, THW-LS 75° C Wet Locations THHW-LS 75° C, THW-LS 75° C
Operating Voltage 600 V.

4. Standards
ASTM B3, ASTM B8, ASTM B787, UL1581, UL83

5. Colors
Sizes 14 to 6 AWG: Black, white, red, green, yellow, blue. Sizes 4 AWG and greater: Black

6. Packaging

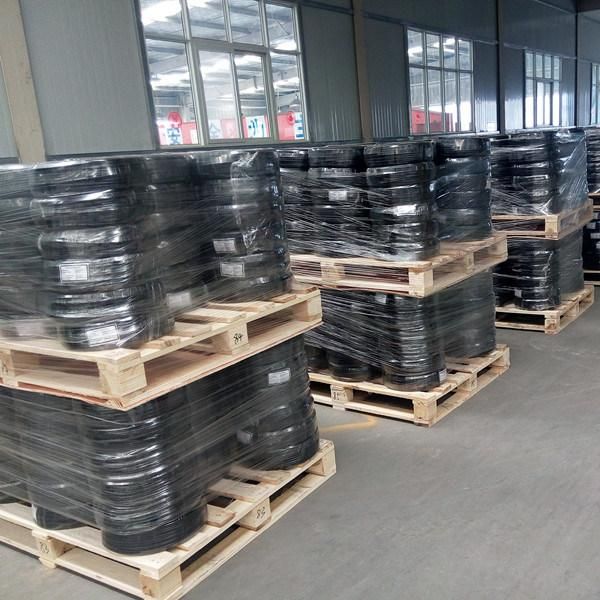

Roll / Wooden drum / Iron-wooden drum
Note: Other configurations, sizes, colors and length not specified herein are available upon request

For further information, pls contact us directly.
