• Model NO.：Aerial Bundle Cable
• Wire Core Material：Aluminum or ACSR
• Certification：ISO, CCC, CE
• Model：ABC Cable
• Brand：Yifang
• Core：1core ~ 6core
• Colour：Black or as Per Requirements
• Standard：IEC, Icea S-74-674, NFC 33 209
• Conductor：Compacted Round Aluminum
• Transport Package：Coil, Drum
• Specification：16mm2-630mm2
• Trademark：Yifang
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Aerial Bundle Cable Wire Core Material Aluminum or ACSR Certification ISO, CCC, CE Model ABC Cable Brand Yifang Core 1core ~ 6core Colour Black or as Per Requirements Standard IEC, Icea S-74-674, NFC 33 209 Conductor Compacted Round Aluminum Transport Package Coil, Drum Specification 16mm2-630mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

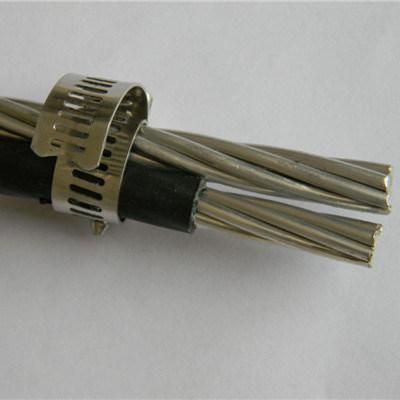

Aerial Bundle Cable, 0.6/1kv XLPE Insulation Aluminum Cable

Aerial Bundle Cable standard available such as ASTM/ICEAS, IEC, NFC, DIN, CSA, BS, and other standards required.

Aerial Bundle Cable belongs to the serious of low voltage aerial bundled cables.

1. These cables are used for electric power transmission, extensively used for rebuilding of urban and forest regions. They can improve safety and reliance of electrified wire netting.

2. Type: Two core (1 Phse core +1 Neutral Core)/Three core (2 Phse core +1 Neutral Core)/Four core (3 Phse core +1 Neutral Core)/Five core(3 Phse core +1 Neutral Core +1 Street lighting core)/Six core(3 Phse core +1 Neutral Core +2 Street lighting core)

3. Cable structure:

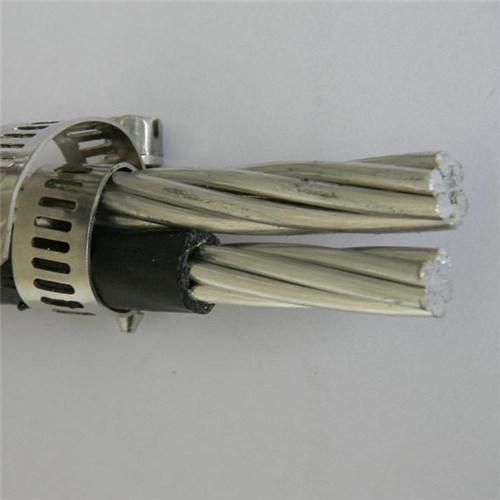

3.1 Two core-LV ABC CABLE
One phase core stranded around a bare or insulated neutral messenger core. Detailed as following:
3.1. 1 Rated voltage 0.6/1KV
3.1. 2 Phase Conductor: Stranded Alu conductor 1350-H19
3.1. 3 Phase Insulation: XLPE/ PVC / PE, Weather resistant
3.1. 4 Neutral messenger: AAC /AAAC /ACSR /STEEL WIRE
3.1. 5 Neutral messenger insulation(optional): XLPE/ PVC / PE, Weather resistant
3.1. 6 Core identification: Colour / Print marking / Colour stripes, others as per required

3.2 Three core-LV ABC CABLE
Two phase core stranded around a bare or insulated neutral messenger core. Detailed as following:
3.2. 1 Rated voltage 0.6/1KV
3.2. 2Phase Conductor: Stranded Alu conductor 1350-H19
3.2. 3 Phase Insulation: XLPE/ PVC / PE, Weather resistant
3.2. 4 Neutral messenger: AAC /AAAC /ACSR /STEEL WIRE
3.2. 5 Neutral messenger insulation(optional): XLPE/ PVC / PE, Weather resistant
3.2. 6 Core identification: Colour / Print marking / Colour stripes, others as per required

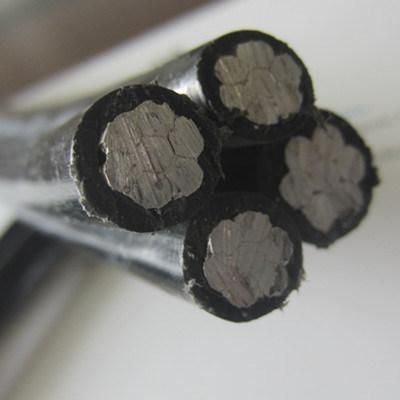

3.3 Four core-LV ABC CABLE
Three phase core stranded around a bare or insulated neutral messenger core. Detailed as following:
3.3.1 Rated voltage 0.6/1KV
3.3.2 Phase Conductor: Stranded Alu conductor 1350-H19
3.3. 3Phase Insulation: XLPE/ PVC / PE, Weather resistant
3.3.4Neutral messenger: AAC /AAAC /ACSR /STEEL WIRE
3.3.5 Neutral messenger insulation(optional): XLPE/ PVC / PE, Weather resistant
3.3. 6 Core identification: Colour / Print marking / Colour stripes, others as per required

3.4 Five core-LV ABC CABLE
Three phase core and one street lighting core stranded around a bare or insulated neutral messenger core. Detailed as following:
3.4. 1 Rated voltage 0.6/1KV
3.4. 2 Phase Conductor: Stranded Alu conductor 1350-H19
3.4. 3Phase Insulation: XLPE/ PVC / PE, Weather resistant
3.4. 4Neutral messenger: AAC /AAAC /ACSR /STEEL WIRE
3.4. 5 Neutral messenger insulation(optional): XLPE/ PVC / PE, Weather resistant
3.4. 6 Street lighting conductor: Stranded Alu conductor 1350-H19, 16mm2
3.4. 7 Street lighting insulation: XLPE/ PVC / PE, Weather resistant
3.4. 8 Core identification: Colour / Print marking / Colour stripes, others as per required

3.5 Six core-LV ABC CABLE
Three phase core and two street lighting core stranded around a bare or insulated neutral messenger core. Detailed as following:
3.5. 1 Rated voltage 0.6/1KV
3.5. 2 Phase Conductor: Stranded Alu conductor 1350-H19
3.5. 3Phase Insulation: XLPE/ PVC / PE, Weather resistant
3.5. 4Neutral messenger: AAC /AAAC /ACSR /STEEL WIRE
3.5. 5 Neutral messenger insulation(optional): XLPE/ PVC / PE, Weather resistant
3.5. 6 Street lighting conductor: Stranded Alu conductor 1350-H19, 16mm2
3.5. 7 Street lighting insulation: XLPE/ PVC / PE, Weather resistant
3.5. 8 Core identification: Colour / Print marking / Colour stripes, others as per required

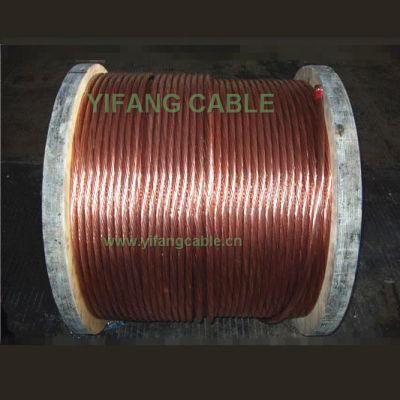

4. Packing: Roll / Wooden drum / Iron-wooden drum

For further information, pls contact us directly.
