• Model NO.：24KV overhead cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Overhead Cable
• Brand：Yifang
• Color：Black
• Standard：NFC 33226
• Insualtion Screen：Extruded Thermsetting Semi-Conductor Layer, Applie
• Metal Screen：Longitude Aluminum Plastic Tape

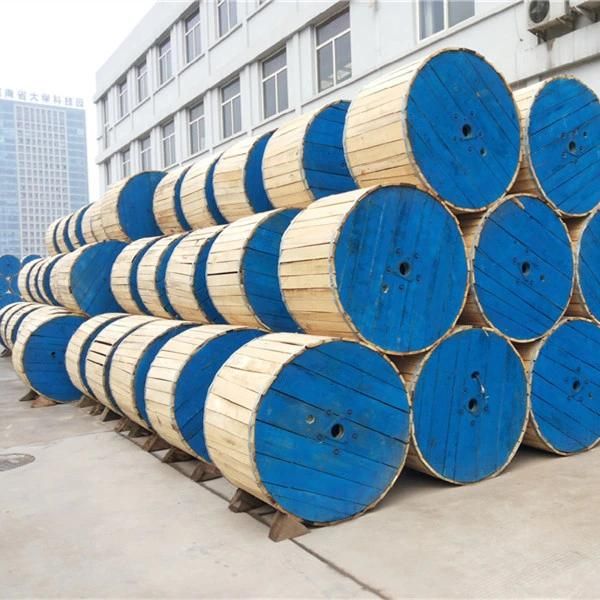

• Transport Package：Steel Drum
• Specification：3X185MM2
• Trademark：Yifang cable
• Origin：China
• HS Code：8544601200
• Production Capacity：3000km,Year

Basic Info.

Model NO. 24KV overhead cable Wire Core Material Aluminum Certification ISO, CCC, CE, RoHS, UL, VDE Model Overhead Cable Brand Yifang Color Black Standard NFC 33226 Insualtion Screen Extruded Thermsetting Semi-Conductor Layer, Applie Metal Screen Longitude Aluminum Plastic Tape Transport Package Steel Drum Specification 3X185MM2 Trademark Yifang cable Origin China HS Code 8544601200 Production Capacity 3000km/Year

Product Description

24kV MV ABC Cable XLPE Insulated Longitudinally Aluminum Tape Power Cable

1. Scope
The Specification covers three core overhead insulated cables, rate 12/20(24)KV generally conforming to IEC60502-2

2. Constuction

2.1 Conductor
Aluminium, Circular stranded and compacted confriming to IEC 60228- class 2

2.2 Conductor Screening
Extruder thermosetting semi-Conductor layer conforming to IEC 60502-2

2.3 Insulation
XLPE thermosetting material Conforming to IEC 60502-2

2.4 Insulation Screening
2.4. 1 Semi conductor screen:
Extruded thermsetting semi-conductor layer, applied unde a swellable semi-conductingtape for watertightness.
2.4. 1Metal screen
Plain soft copper wire and /or copper tape applied helically, or aluminiu tape applied longitudinally bonded to the outer PE sheath.

2.5 Outer Sheath
Extruded black PE sheath, or PVC upon specific customer requirements, conforming to IEC60502-2

2.6 steel messenger
50 or 70 mm2 steel stranded wires covered with black PE, or PVC opon specific customers' requirement

3. Tests
All Tests required by the IEC 60502-2, either on raw material or on finished products.

4. Dimensional Characteristics(Size):

3x50/16, 3x70/16, 3x95/16, 3x120/16, 3x150/25, 3x185/25, 3x240/25
