• Model NO.：RG58
• Wire Core Material：Steel
• Certification：CE, RoHS, CCC
• Model：RG6 Rg11
• Brand：Softel
• MOQ：20km
• Module Number：Rg59,6
• Dielectric：4.57+ 0.05mm Foam PE
• Center Conductor：1.02mm + 0.01mm
• Shield：Bonded Al Foil
• Outer Conductor Thickness：0.343mm
• Braid Coverage：60%
• Jacket：6.91+0.05mm PVC
• Messenger：1.30mm
• Jelly/Apd：Per Customer′ Special Requirement
• Transport Package：Packed with Polyfoam, Outer Packed with Brown Box
• Specification：CE; ISO9001
• Trademark：Softel
• Origin：Hangzhou, Zhejiang, China
• HS Code：85176229
• Production Capacity：10000km Per Month

Basic Info.

Model NO. RG58 Wire Core Material Steel Certification CE, RoHS, CCC Model RG6 Rg11 Brand Softel MOQ 20km Module Number Rg59/6 Dielectric 4.57+ 0.05mm Foam PE Center Conductor 1.02mm + 0.01mm Shield Bonded Al Foil Outer Conductor Thickness 0.343mm Braid Coverage 60% Jacket 6.91+0.05mm PVC Messenger 1.30mm Jelly/Apd Per Customer′ Special Requirement Transport Package Packed with Polyfoam, Outer Packed with Brown Box Specification CE; ISO9001 Trademark Softel Origin Hangzhou, Zhejiang, China HS Code 85176229 Production Capacity 10000km Per Month

Product Description

RG58/RG59 BC/CCS Quad-Shield House Drop Coaxial Cable from High Technology Manufacture in China

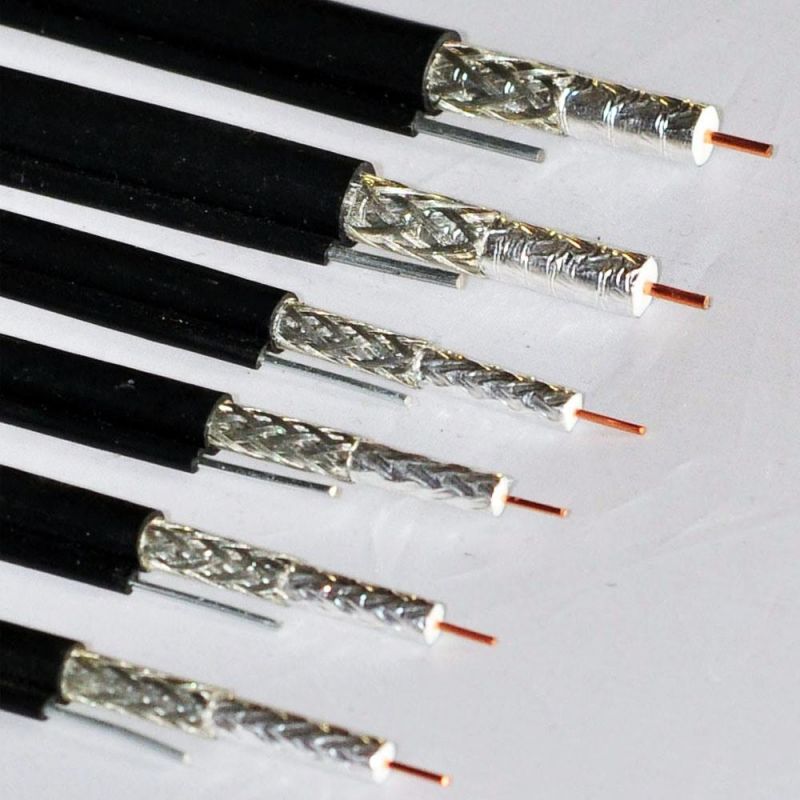

-Product Display

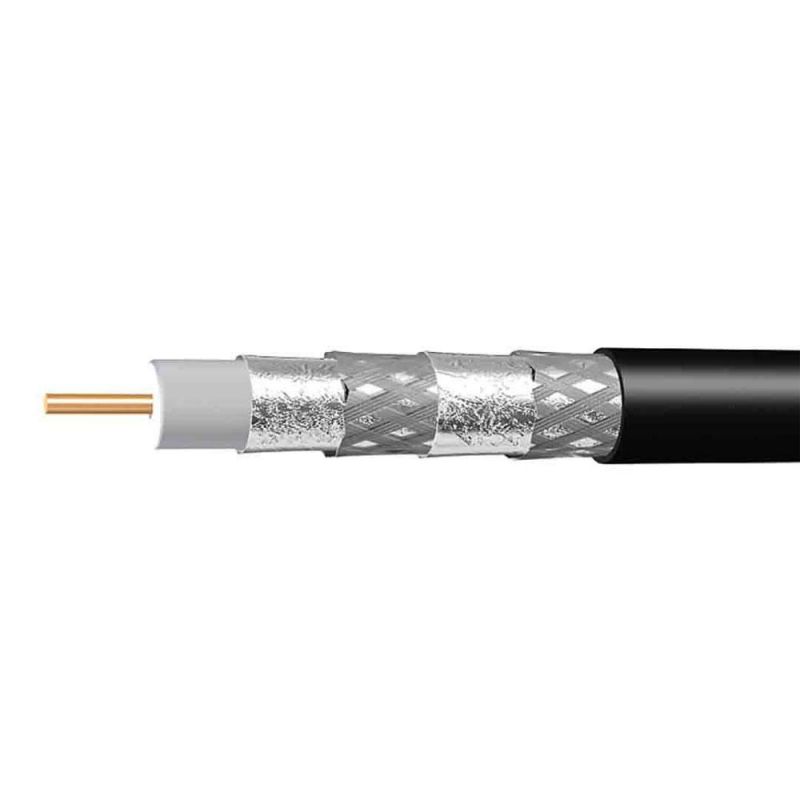

-Construction

• Min. bending radius:      8.9mm(jacketed)
• Max. pulling tension:      68kgf
• Min. thickness strength
• Of messenger:            816kgf
• Impedance:             75+2Ohm
• Capacitance:              50+3nF/km, 15.3+1pF/ft
• Velocity of Propagation:  88%

-CharacteristicsSparker test: 4000VAC Impedance: 75+2 Ohm Capacitance: 54+3pF/m Velocity of Propagation:85% Return Loss: 20dB min (5-2300MHz)
-Nominal D.C. resistance @20

• Copper clad:
• Inner conductor       4.43ohms/km
• Outer conductor      1.21ohms/km
• Loop                        5.64ohms/km

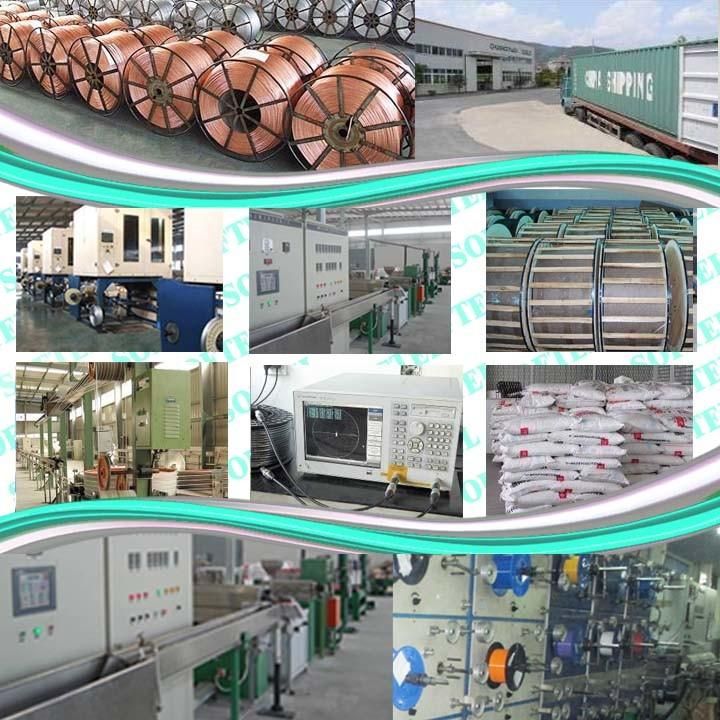

-Workshop

-Our Team
