Silicone Heating Cable Wire UL Approved
Jiangyin Senphus Electrical Material Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Overhead, Heating
- Conductor Material:Alloy
- Sheath Material:Silicone
- Insulation Material:Silicone Rubber
Base Info
- Model NO.:SH-BSR-20
- Material Shape:Round Wire
- Range of Application:Heating
- Certification:CE, UL
- Brand:Senphus
- Color:White, Orange
- Diameter:1 to 5mm
- Conductor:Nichrome Wire, Copper Nickel Wire
- Core:One, Two and Three Core

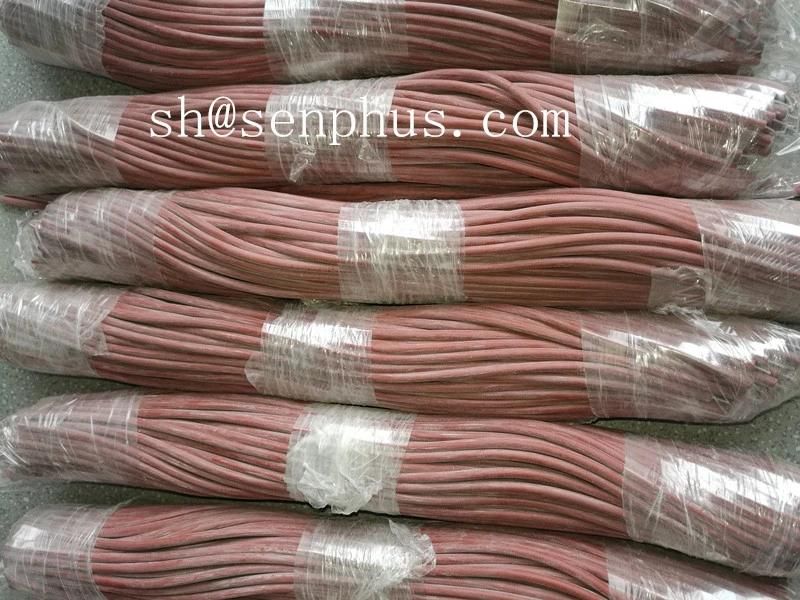

- Transport Package:Roll, Carton, Plastic Bag
- Specification:CE, ul
- Trademark:SENPHUS
- Origin:China
- HS Code:85168000
- Production Capacity:50 0000meters,Day
Description
Basic Info.
Model NO. SH-BSR-20 Material Shape Round Wire Range of Application Heating Certification CE, UL Brand Senphus Color White, Orange Diameter 1 to 5mm Conductor Nichrome Wire, Copper Nickel Wire Core One, Two and Three Core Transport Package Roll, Carton, Plastic Bag Specification CE, ul Trademark SENPHUS Origin China HS Code 85168000 Production Capacity 50 0000meters/DayProduct Description

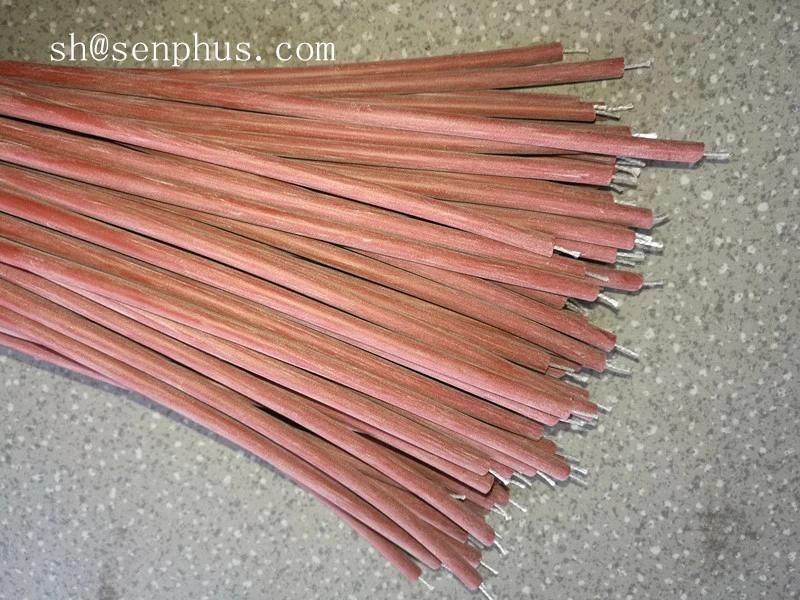

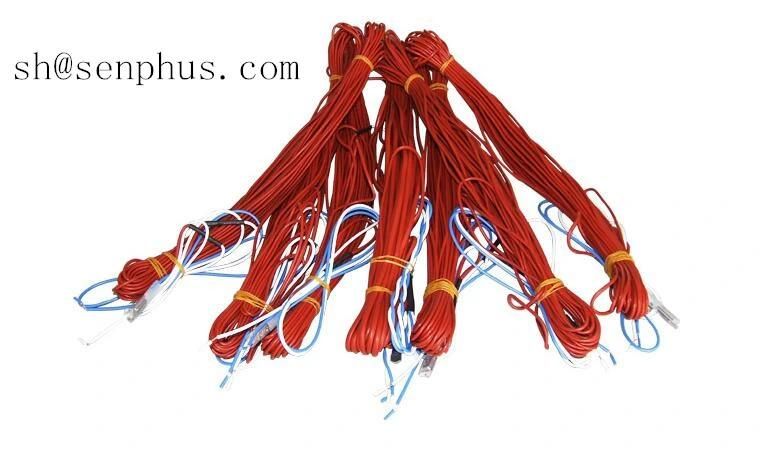

UL of Silicone Heating CableProduct Description
External diameter of cover: 1.2~6 mm
Wire Dia: 1* 0.75
Conductor: Ni-Cr, constantan
Temperature Rating: 200C degree
Color: White, black, red, grey, etc
Insulator: Silicone rubber
Isulation voltage: 3000V
Rated voltage: 600V
Resister range: 0.1-20000Ω /m
Diameter range: 1.2-6.0mm
Product life: More than 10000h
Apply:
Refrigeratory, air-conditioner, electric cooker, defrost, electric blanket, electric oven, teapot, flowerpot, anti-icing, etc
Structure&test
1. Core: Glass fiber or polyester fiber
2. Heating thread: Constantan, nickel-chromium, iron chromium, copper nickel
3. Insulator: Silicon rubber of different thickness
5. Bend test: 5000 times (according to UL/IEC standard)
5. Circumnutating test: 250000 times ( according to UL/ IEC standard)
Voltage | Watt | Length |
V | W | M |
220-240/110 | 15 | 3 |
220-240/110 | 15 | 3.5 |
220-240/110 | 15 | 4 |
220-240/110 | 25 | 3.5 |
220-240/110 | 25 | 4.3or4.5 |
220-240/110 | 50 | 6 |
220-240/110 | 50 | 7 |
220-240/110 | 80 | 9 |
220-240/110 | 100 | 12 |
220-240/110 | 110 | 15 |
220-240/110 | 250 | 20 |
