5kV 8kV SHD-GC EPR Insulation Rubber Cable MV 3X4/0AWG Mining Cable
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Underwater, Portable, Mining
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：8KV SHD-GC rubber cable
- Material Shape：Round Wire
- Range of Application：Mine
- Certification：ISO9001, CE, CCC
- Brand：Yifang
- Insulation：Rubber, TPE, Silicone Rubber, Epr
- Size：1.5, 2.5, 4, 6, 10....240
- Transport Package：Drum, Steel Drum
- Specification：3x4,0 AWG
- Trademark：Yifang cable
- Origin：Henan Zhengzhou
- HS Code：8544601200
- Production Capacity：20000km,Year
Description
Grounding Conductor:
Coated copper, rope-laystranded per ASTM B172
Two conductors in contact with the flexible copper braid shield
Jacket:
Reinforced, two-layer, extra heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
Jacket Marking:
MINE CABLE SERVICES CORPORATION (SIZE), 3/C TYPE SHD-GC 5000 VOLTS (-50°C) FT1 FT5 CSA LR27161 P- 7K102-046 MSHA
Options:
- Colored jackets are available
- TPU (Thermoplastic Polyurethane) jacket
- Other jacket materials available upon request
Applications:
Designed for use as a trailing cable on AC mining equipment:
- Where service conditions are severe and maximum safety is mandatory (such as power shovels and draglines in open-pit mines, quarries, gantry cranes and slag reclaiming)
- For high-voltage distribution in underground mines where frequent relocation is necessary
Features:
- Simultaneous extrusion and vulcanization of both strand shield and insulation form a virtually perfect electrode, eliminating unequal electrical stresses
- Excellent heat, moisture, steam, oil, corona, chemical and radiation resistance
- Flexible for easy handling
- High dielectric strength
- Electrical stability under stress
- Low dielectric loss
- Resists cutting, impact, abrasion, flame and sunlight
- Excellent thermal stability and physical properties over a broad temperature range
- Two-layer jacket is reinforced to provide maximum protection from mechanical damage-the cause of most portable cable failures
Compliances:
- ICEA S75-381 Portable and Power Feeder Cables for se in mines and similar applications
- Meets flame test requirements and is accepted for listing by MSHA
- Approved by the Pennsylvania Department of Environmental Protection
- Meets CAN/CSA-C22..2 No. 96 Portable Power Cables.

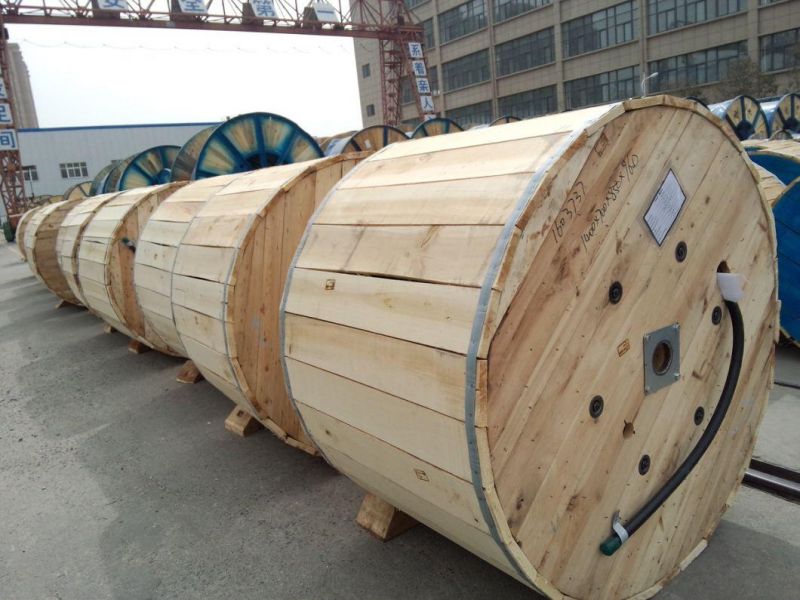

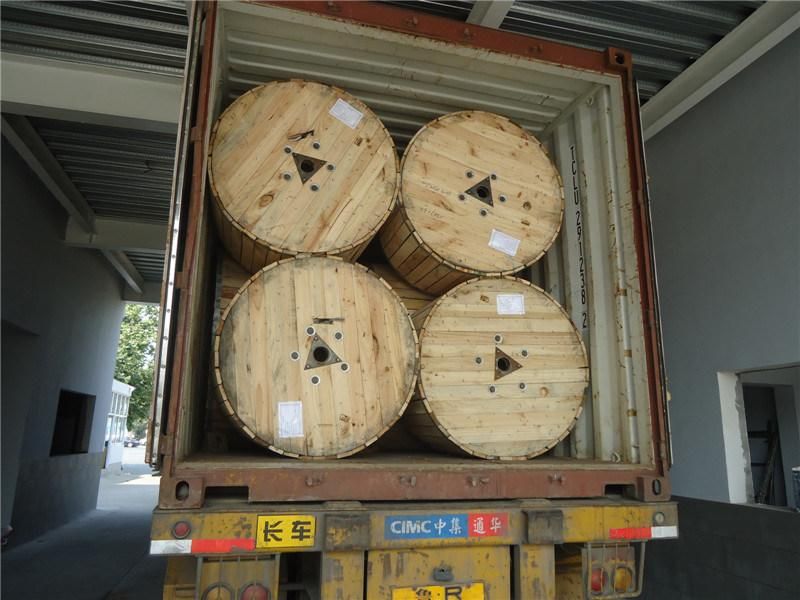

Packaging:
Material cut to length and shipped on nonreturnable reels
