2X0.22mm Security Alarm Cable

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Alarm
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：alarm cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Model：Rvv
  • Brand：Fuu
  • Transport Package：100m
  • Specification：12awg Conductor
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：3500km,Month

Description

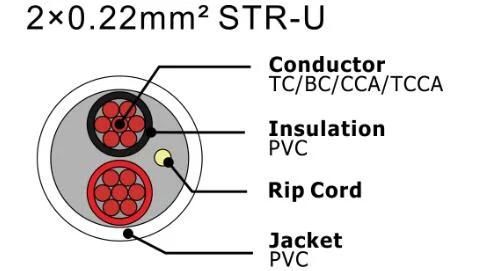

Cable construction :Conductor:2 x (7/0.20mm TC/BC/CCA/TCCA)Dielectric:Type: PVCDiameter: 0.95mmColor Code:1.Blk2.Red Rip CordCotton Wire Jacket:Type: PVCDiameter: 3.00mmPrint Legend:0.22mm² 2C Unshielded Security Alarm Cable ××× MElectrical Properties :Temperature Rating (-20ºC ~ +60ºC)Operating Voltage300 Volts maxCapacitance15 pf/ft nom.Impedance100 Ohms nom.DC Resistance16.5 Ohms/M' at 20ºC Cross Section :2X0.22mm Security Alarm Cable
   Order Informations :PackageInquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …Delivery timeNormally 25 days after received the deposit.


2X0.22mm Security Alarm Cable
