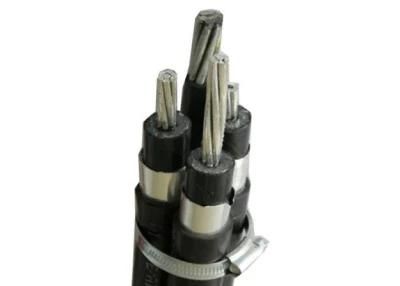

- Model NO.:Primary UD Cable
- Wire Core Material:Aluminum 1350 Wire
- Certification:ISO, CCC
- Model:Primary Ud Cable
- Brand:Boan
- Rated Voltage:35 Kv
- Size Range:1,0-1000 AWG or Kcmil
- Insulation Level:100% or 133%
- Neutral Level:1,3 or Full
- Neutral Type:Copper Wire
- Size of Neutral:14,12,10,9 AWG
- Transport Package:Heated Steel-Wooden Drum,Steel Drum
- Specification:SGS
- Trademark:DingAn or OEM
- Origin:Jiangsu Yixing, China
- HS Code:8544601200
- Production Capacity:12000 Km,Year
Size AWG or kcmil | Number of Strands | Nominal OD Over Insulation in | 1/3 Neutral | Full Neutral |
Number of Wires | Size AWG | Jacket Thickness mil | Approximate Outside Diameter in | Approximate Net Weight lb/kft | Number of Wires | Size AWG | Jacket Thickness mil | Approximate Outside Diameter in | Approximate Net Weight lb/kft |
Aluminum 100% Insulation Level (345 mil) |
1/0 | 19 | 1.10 | 6 | 14 | 80 | 1.49 | 948 | 16 | 14 | 80 | 1.49 | 1082 |
2/0 | 19 | 1.14 | 7 | 14 | 80 | 1.53 | 1026 | 13 | 12 | 80 | 1.57 | 1214 |
3/0 | 19 | 1.19 | 9 | 14 | 80 | 1.58 | 1129 | 16 | 12 | 80 | 1.62 | 1354 |
4/0 | 19 | 1.25 | 11 | 14 | 80 | 1.64 | 1247 | 13 | 10 | 110 | 1.78 | 1660 |
250 | 37 | 1.30 | 13 | 14 | 110 | 1.76 | 1465 | 16 | 10 | 110 | 1.84 | 1849 |
350 | 37 | 1.40 | 18 | 14 | 110 | 1.86 | 1722 | 16 | 9 | 110 | 1.96 | 2186 |
500 | 37 | 1.53 | 16 | 12 | 110 | 2.06 | 2137 | 29 | 10 | 110 | 2.10 | 2786 |
750 | 61 | 1.74 | 15 | 10 | 110 | 2.30 | 2756 | - | - | - | - | - |
1000 | 61 | 1.89 | 16 | 9 | 110 | 2.48 | 3317 | - | - | - | - | - |
Aluminum 133% Insulation Level (420 mil) |
1/0 | 19 | 1.25 | 6 | 14 | 80 | 1.64 | 1132 | 16 | 14 | 80 | 1.64 | 1266 |
2/0 | 19 | 1.29 | 7 | 14 | 110 | 1.75 | 1322 | 13 | 12 | 110 | 1.78 | 1512 |
3/0 | 19 | 1.34 | 9 | 14 | 110 | 1.80 | 1434 | 16 | 12 | 110 | 1.83 | 1662 |
4/0 | 19 | 1.40 | 11 | 14 | 110 | 1.86 | 1563 | 13 | 10 | 110 | 1.93 | 1872 |
250 | 37 | 1.45 | 13 | 14 | 110 | 1.91 | 1684 | 16 | 10 | 110 | 1.99 | 2069 |
350 | 37 | 1.56 | 18 | 14 | 110 | 2.04 | 2001 | 16 | 9 | 110 | 2.15 | 2466 |
500 | 37 | 1.68 | 16 | 12 | 110 | 2.21 | 2389 | 29 | 10 | 110 | 2.25 | 3038 |
750 | 61 | 1.89 | 15 | 10 | 110 | 2.46 | 3034 | - | - | - | - | - |
1000 | 61 | 2.04 | 16 | 9 | 110 | 2.63 | 3613 | - | - | - | - | - |
