• Model NO.：ACSR AW-OC
• Wire Core Material：AAC, AAAC, ACSR
• Certification：ISO, CCC
• Model：ACSR,Awoc
• Brand：Hongda Cable
• Useful：Fixed Installations, Preferably in Cable Ducts, in
• Transport Package：Steel & Wooden Drum
• Specification：1 core
• Trademark：Hongda cable, oem
• Origin：China
• HS Code：8544601200
• Production Capacity：200km,Week

TypeApplicationConstructionACSR/AW-TR/OCUsed for weather-resistant cable for the distribution lines on normal condition of overhead line serviceAluminium-Clad Steel Wire/Aluminium Stranded Conductor /Outdoor Tracking Retardant XLPE InsulationACSR/AW-OCUsed for high voltage aerial transmission linesConductors - Aluminium Clad Steel Wire / Aluminium Stranded XLPE Insulated WireACSR/OCUsed for high voltage aerial transmission linesConductors - Aluminium Conductor Steel Reinforced XLPE Insulated Wire

Classification

• Outside
  Diameter

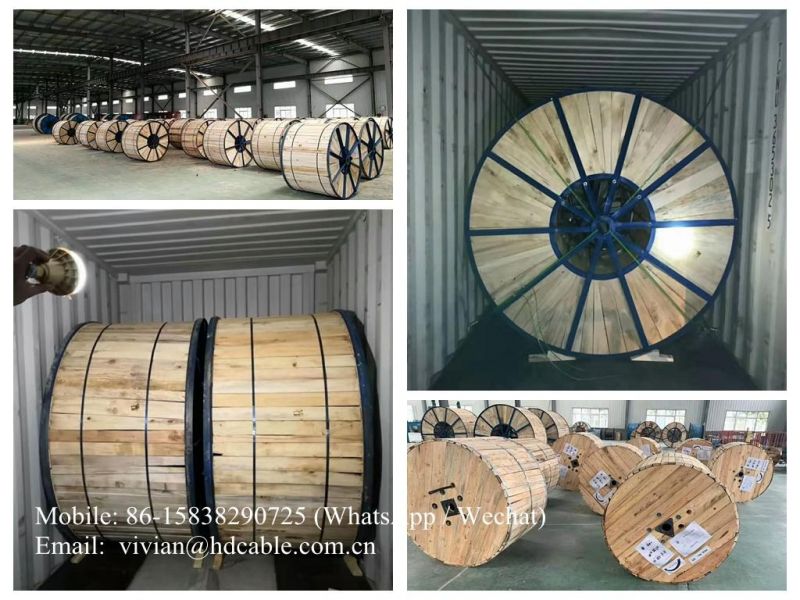

  (mm)(mm²)AlSt(mm)(mm)(Ω/km,20°C)(MΩ·km, 20°C)(kV)(kgf)(kg/km)(m/reel)586/SB *1/3.59.73.015.70.4841,500251,900330600,1000956/SB1/3.512.03.519.00.3021,500252,360530600,100016018/SB1/3.215.44.023.40.1831,500253,080730600.100024018/SB1/4.018.94.027.00.1231,500254,5001,040600,1000PACKINGThe cable shall be wound on reel with wooden drum (or Plastic drum) such as to prevent damage during transportation. The batten shall be tightly fixed to the drum. Following description shall be marked on a flange of the reel.
  1. Direction of rotation of the reel
  2. Position of the winding finish end of cable
  3. Type of the cable
  4. Number of conductors and size
  5. Cable length
  6. Net and Gross weight



  More information and other cable inquiry, pls contact Vivian as follows:
