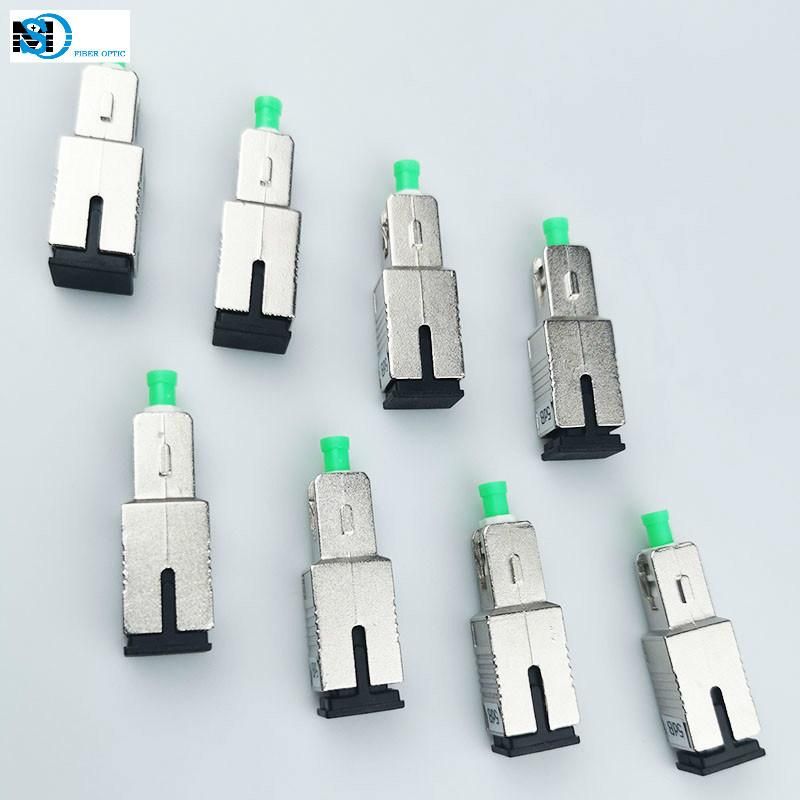

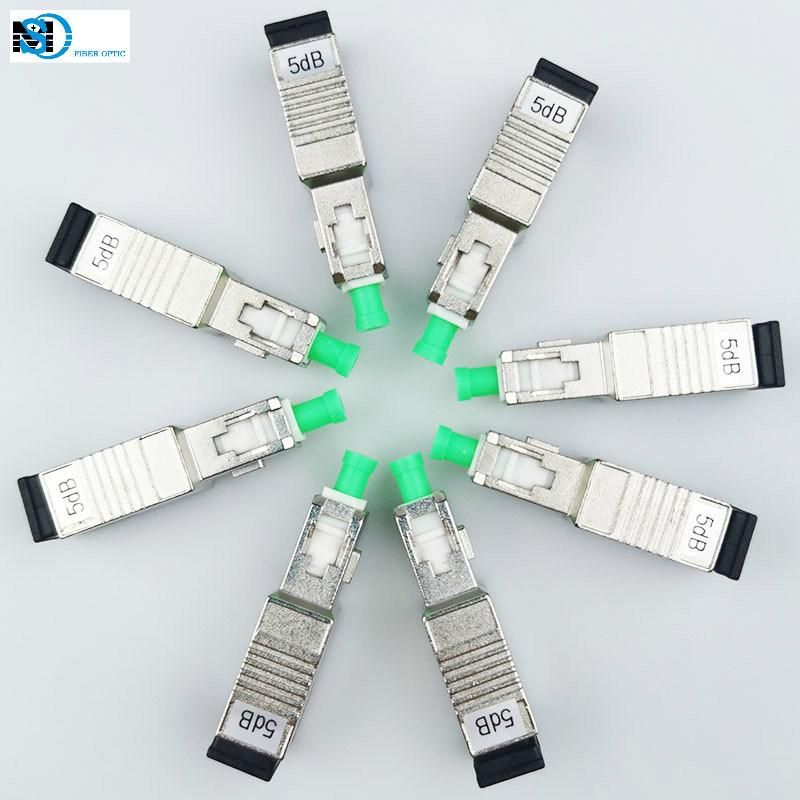

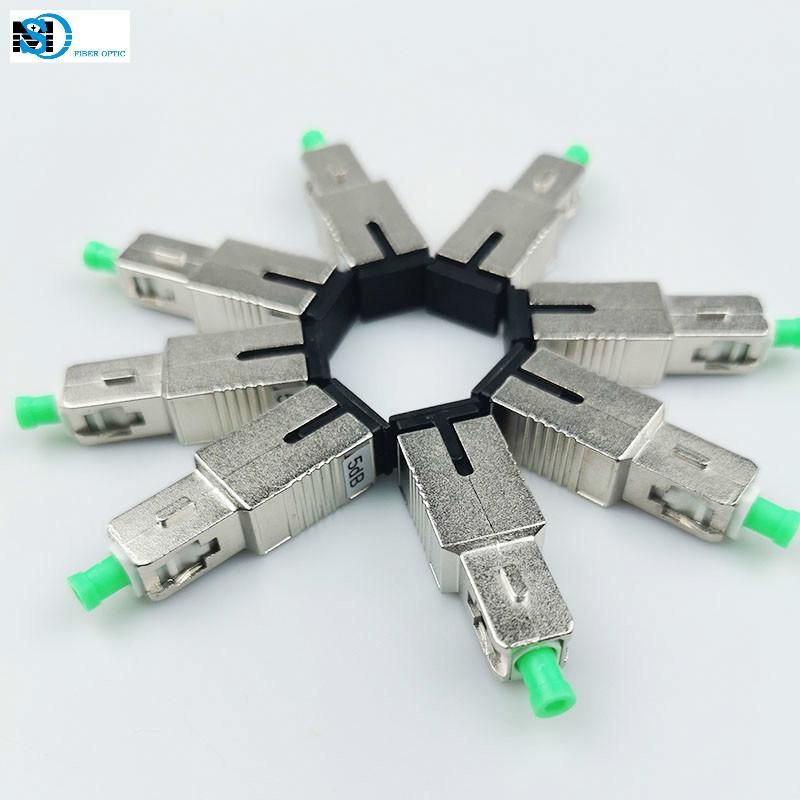

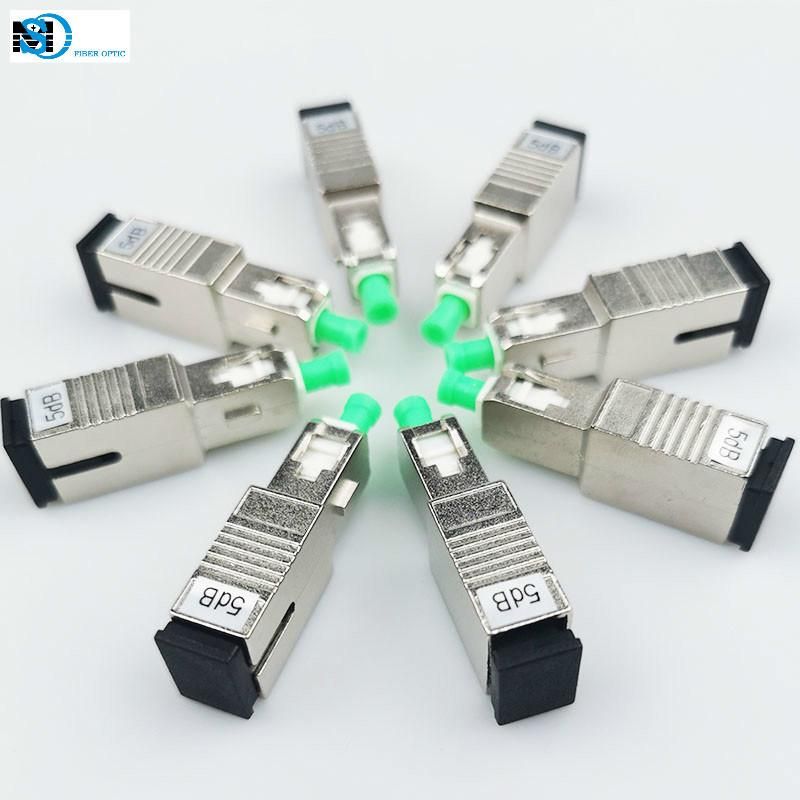

1-30dB Sc/APC Singlemode Fiber Optic Attenuator for FTTH
Shenzhen Shengmeida Communication Co., Ltd.- Application：Communication, Sensor, Medicine, Network
- Type：Sc APC
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：SC APC
- Core：Single Core
- Certification：RoHS, ISO9001
- Warranty：One Year
- Lead Time：2-5 Working Days
- Data：1~25dB
- Transport Package：1 Piece PE Bag
- Specification：0-25db
- Trademark：SMD
- Origin：China
- HS Code：8544700000
- Production Capacity：20000,Month
Description
Basic Info.
Model NO. SC APC Core Single Core Certification RoHS, ISO9001 Warranty One Year Lead Time 2-5 Working Days Data 1~25dB Transport Package 1 Piece PE Bag Specification 0-25db Trademark SMD Origin China HS Code 8544700000 Production Capacity 20000/MonthProduct Description
1-30dB SC/APC Singlemode Fiber Optic Attenuator for FTTHProduct Description
Fiber optic attenuator is a kind of optical device which can reduce the energy of optical signal. For the attenuation of the input optical power, to avoid the input optical power is too strong and make the optical receiver distortion.
Features
- High return loss
- Simple structure
- Max operation power(1W)
- Low wavelength relativity
- Low polarization related loss
Area of Applications
- Fiber optical distributing frame
- Fiber optical network system
- High speed fiber optical transmission system
- CATV system
- Long distance DWDM system
- Optical add-drop multiplexers(OADM)
Function instruction
| Attenuation value | 1, 3, 5, 10, 15, 20,25 dB |
| Attenuation precision | <5dB±0.3dB <10dB±1dB >10dB±10% |
| Return loss | PC>45dB APC>60dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | <0.1dB |
| Operation temperature | -40ºC ~ +75ºC |
| Storage temperature | -40ºC ~ +85ºC |
