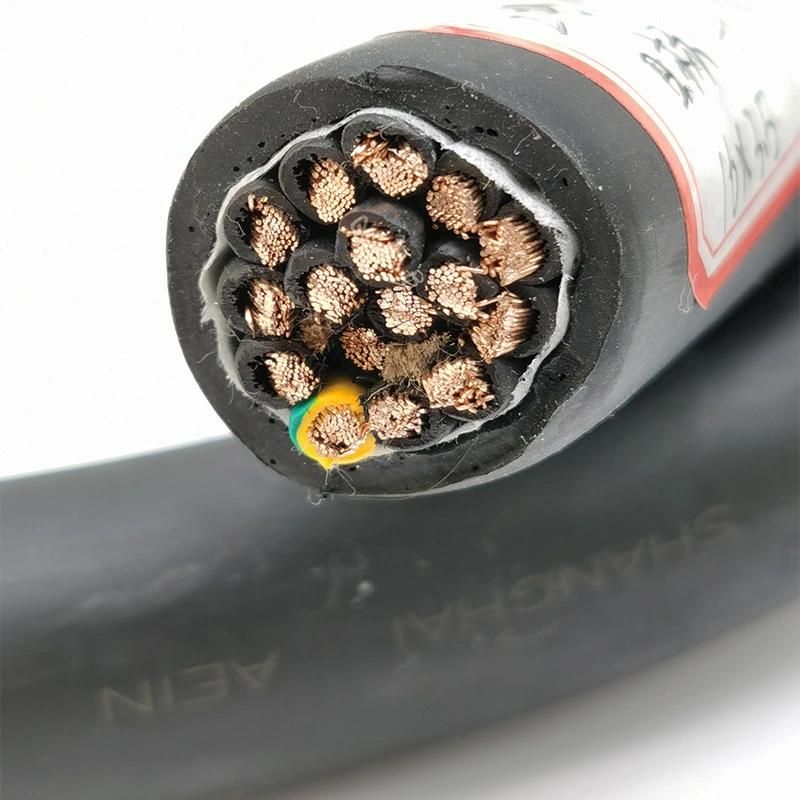

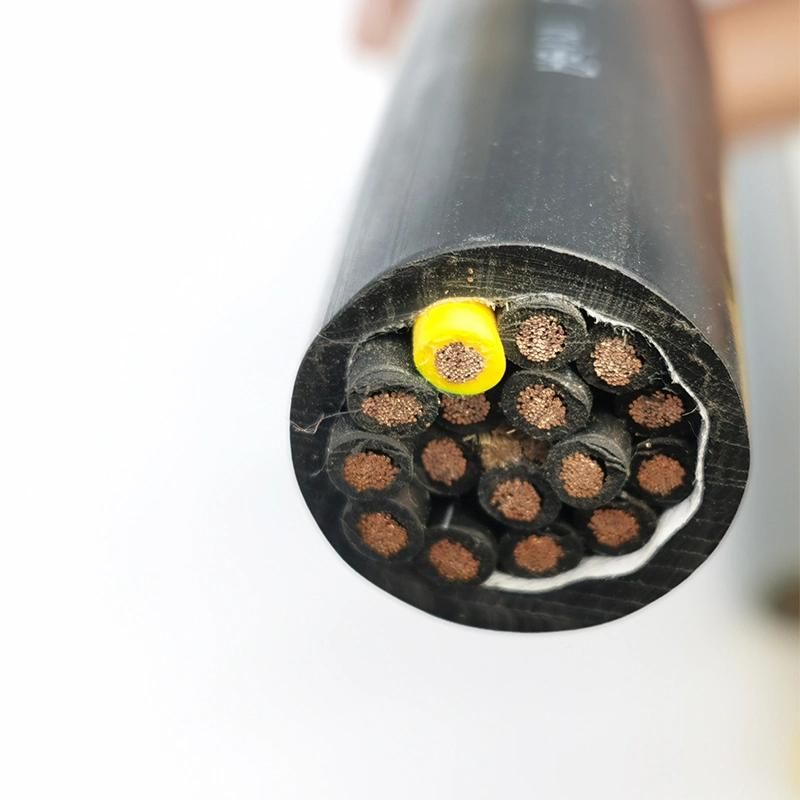

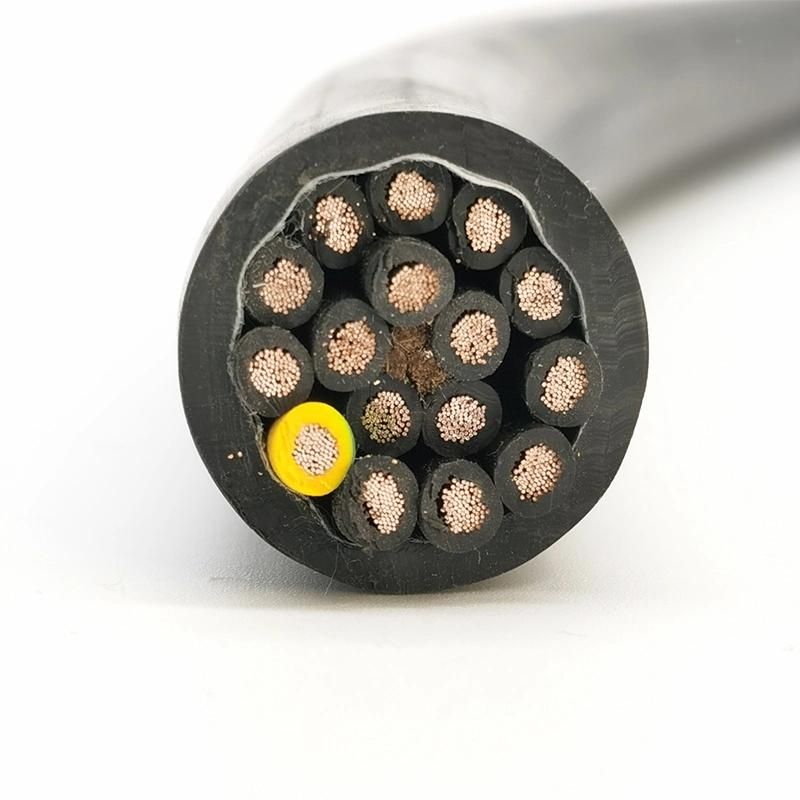

Tkd Alternative Opvc-Jz/Oz 0.6/1kv Schwarz Power Cable 16X1.5mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：OPVC-JZ,OZ SCHWARZ Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTKD Alternative OPVC-JZ/OZ 0.6/1KV SCHWARZ Power and Connecting Cable ConductorBare copper strandInsulationPVCOuter sheathPVCCore NumberMulticores (As client's requirement)Rated VoltageUo/U 0.6/1 kVTest Voltage4000 VTemperature RangeFixed min/max -40 °C / +80 °C
Moved min/max -15 °C / +70 °CBending RadiusFixed 4 x d
Moved 15 x dColorOptionalSpecial Features• Operation voltage 0.6/1 KV
• 4 KV testing voltage
• Largely resistant to acids, bases and specified types of oil
• UV-proofed PVC outer sheathApplicationPower, control and connecting cable in electrical facilities, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use but no laying underground.
