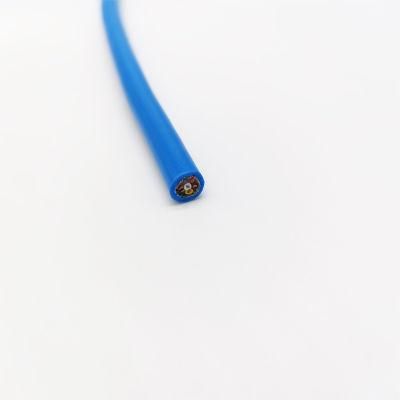

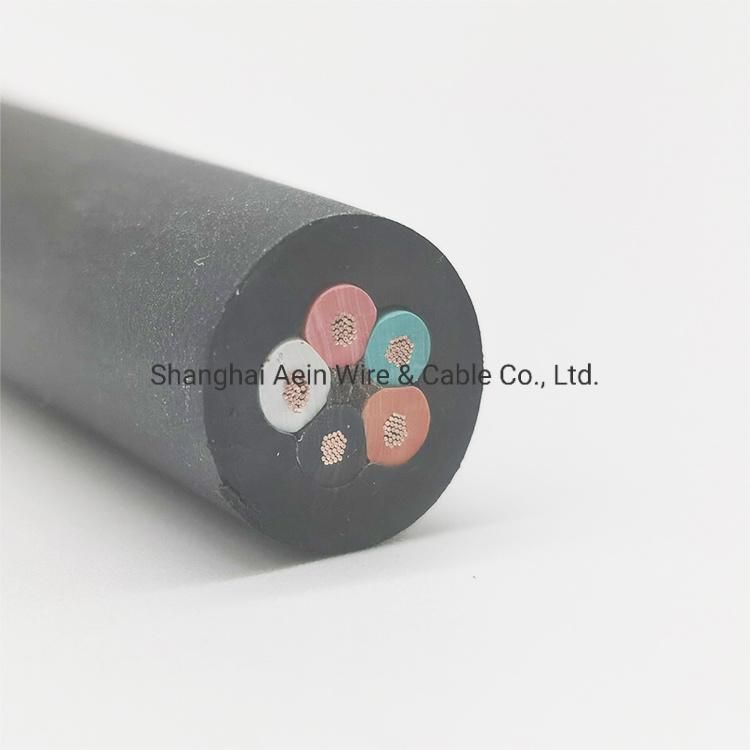

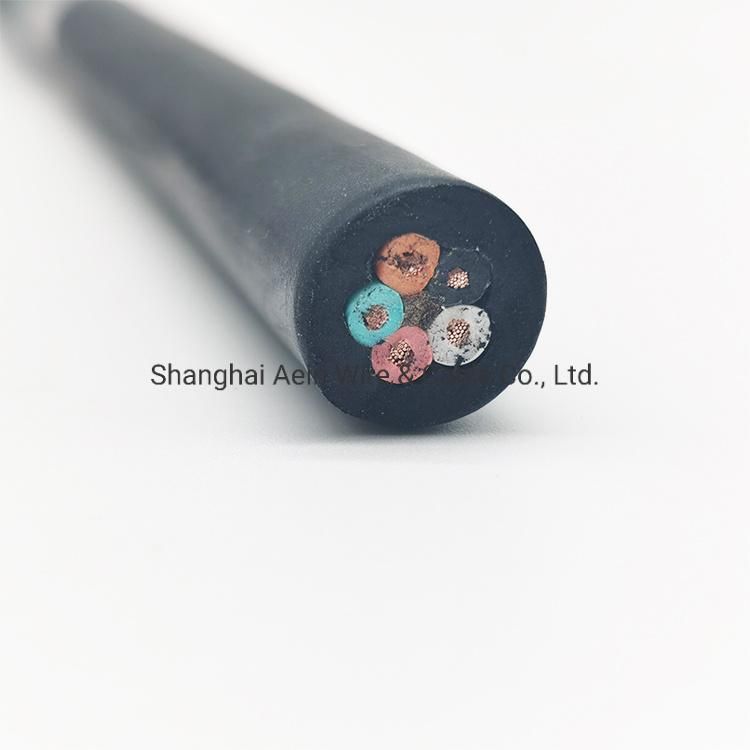

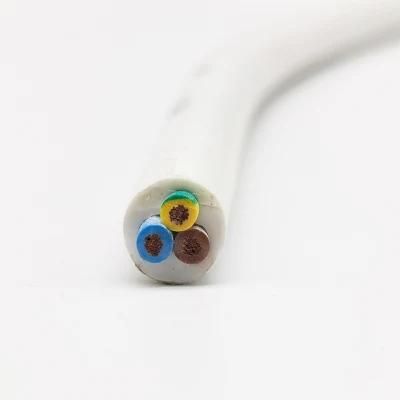

H05bz5-F Robust Flexible Multicore PUR Sheathed Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Reeling Application
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：Rubber

Base Info

  • Model NO.：H05BZ5-F Cable
  • Material Shape：Round Wire
  • Range of Application：Reeling Application
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH05BZ5-F CableConductorCopper wire bareInsulationRubber compoundOuter sheathPUR-HF (Polyurethane, Halogen-Free)Peak operating voltageUo/U 300/500VTest Voltage2000 VTemperatureOperating: -40°C to +90°C
Minimum installation and use temperature: -40°C
Maximum temperature of short circuit: +250°CColorOptionalApplicationRobust flexible multicore PUR sheathed cable compatible with European standard electric vehicle AC charging modes 1 (single phase - domestic), 2 and 3 (single/three phase - commercial/public) installations. Suitable for trailing EV plug connections to vehicle.
