4 Pair CAT6A F/FTP LSZH Cable
Jiangsu Hengxin Technology Co., Ltd.- Application：Local Communication Cable, LAN Cable, Data Cable
- Conductor Material：Copper
- Cover Material：LSZH
- Type：Cat 6
- Material Shape：Flat Wire
- Conductor Type：Solid
Base Info
- Model NO.：CAT6A
- Wire Core Material：Bare Copper Wire
- Certification：ISO, RoHS
- Model：CAT6A
- Brand：Hengxin
- Transport Package：Pallet, Cartoon
- Specification：305 meter per pallet
- Trademark：HENGXIN
- Origin：Jiangsu Province, China
- HS Code：85442000
- Production Capacity：30 Km Per Day
Description
Temperature Rating installation0~50ºC Temperature Rating Operation -20~60ºC Application:10/100/1000/10GBase-T,1000Base-TX,ATM,FDDI,Video,
ISDN,Multimedia,PoE Reference Standard IEC61156-5&ISO/IEC 11801
Conductor Solid Bare Copper AWG 23 Conductor Dia. (±0.01mm) 1/0.56 Insulation FMPE Average Thickness(mm) 0.395 Insulation Dia.(±0.1mm) 1.35 Twisted 2C Al foil(Each Pair) YES Assembly 4P Drain wire Solid Tinnde Copper Conductor Dia. (±0.01mm) 1/0.40 Overall AL foil YES Jacket LSZH Average Thickness(mm) 0.6 Min.Point Thickness(mm) 0.5 Outer Dia.(±0.03mm) 7.6 Rip Cord NO Insulation colors White, Blue White, Orange White, Green White, Brown Jacket color Accordong to the customer Electrical characteristics Impedance 1~300MHz 100±15 300~500MHz 100±22 Max.Condtctor DC Resistance 20ºC(ohms/Km) 95 Min.Instlation Resistance (Mohm*Km) 5000 Max.Delay Skew(ns/100m) 45 Pair-to-Cround Capacitance Unbalance (pF/100m) ≤330 Capacitance unbalance pair to ground(pf/Km) <1600 Resistance Unbalance within a pair 0.02 Mutual Capacitance(Nf/Km) <56(1KHz) Frequency Attenuation NEXT PSNEXT Return loss ELFEXT PSELFEXT (MHz) (dB/100m) (dB/100m) (dB) (dB) (dB/100m) (dB/100m) 1 2.1 75.3 72.3 20 68 65 4 3.8 66.3 63.3 23 56 53 10 5.9 60.3 57.3 25 48 45 16 7.5 57.2 54.2 25 43.9 40.9 20 8.4 55.8 52.8 25 42 39 31.25 10.5 52.9 49.9 23.6 38.1 35.1 62.5 15 48.4 45.4 21.5 32.1 29.1 100 19.1 45.3 42.3 20.1 28 25 200 27.6 40.8 37.8 18 22 19 300 34.3 38.1 34.1 17.3 18.5 15.5 500 45.3 34.8 31.8 17.3 14 11 Mechanical characteristics Minimum elongation at break of the sheath >300% Tensile strength of Sheath >10Mpa

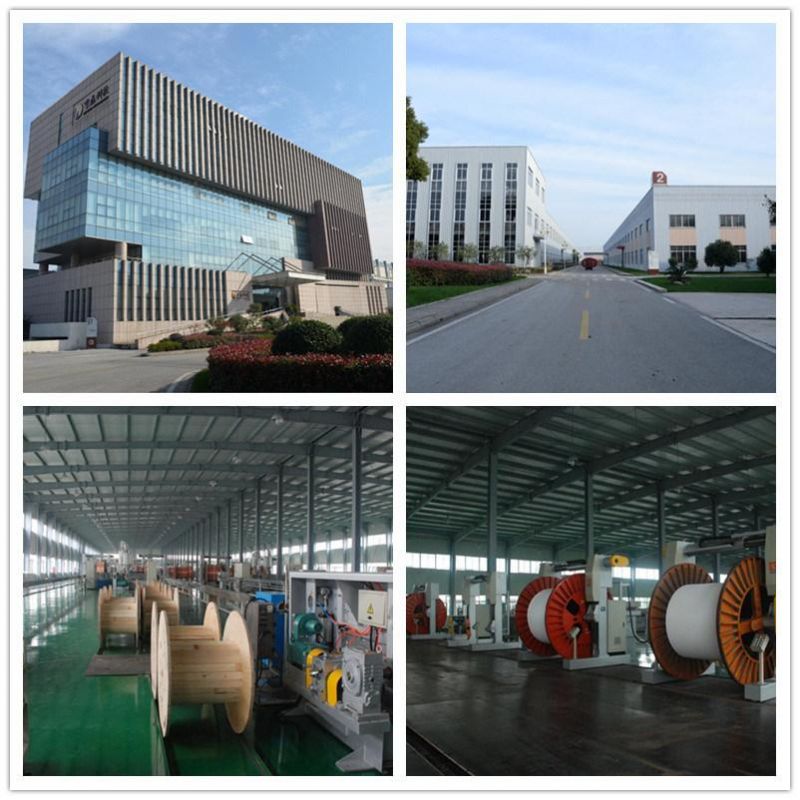

OUR COMPANY/HENGXIN TECHNOLOGY
Hengxin was listed on the Main Board of the Singapore Exchange Securities Trading Limited (SGX-ST) on 11 May 2006, and was primarily dual listed on the Main Board of The Stock Exchange of Hong Kong Limited (SEHK) on 23 December 2010. Founded in 1996 with its manufacturing base in Yixing City alongside Taihu Lake, Jiangsu Province, China, it is involved in the research, manufacture and sale of antennas, RF Cables and accessories for wireless communication applications, accessories consisting of connector, jumper cable, arrester, coupler and splitter, etc. Quality and safety are handled with the highest regard by Hengxin. Since 1996, it has been certified with ISO9001 Quality Management System Certification, ISO14001 Environment Management System, OHSAS 18001 Occupational Health and Safety Management Certification, and has also been appraised as a Hi-Tech Enterprise of China National Torch Planning , obtained 29 utility type patents from the Property Rights Bureau of National Information.
OUR EXHIBITIONS
OUR CERTIFICATES
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available. Q: May I visit your factory?
A: Sure, welcome any time with prior notice. Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us. Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity. Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you. Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.
