• Model NO.：spiral cable
• Conductor Material：Copper
• Sheath Material：PU, PUR TPU
• Insulation Material：PVC, Speical PVC, PUR, PP, TPE
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, RoHS, VDE
• Brand：Wellde
• Produceing Experience：15 Years
• Size：Customized According to Your Request
• OEM：Yes
• Customized：Yes
• Export Experience：Thailand, Indonesia, Germany, Russia, Poland, UK
• Hot Sale：UK, Poland, Malaysia, UAE, USA, India
• AWG：AWG22 AWG20 AWG24 AWG26 AWG18 28
• Hot Sale Specification：0.25mm 0.5mm 0.75mm 1.0mm 1.5mm
• Transport Package：Coil, Drum or as Per The Customer′s Request
• Specification：SGS
• Trademark：Wellde Kable
• Origin：Henan
• HS Code：8544492100
• Production Capacity：500km Per Month
• Package size per unit product：40.00cm * 38.00cm * 35.00cm
• Gross weight per unit product：2.000kg

Basic Info.

Model NO. spiral cable Conductor Material Copper Sheath Material PU, PUR TPU Insulation Material PVC, Speical PVC, PUR, PP, TPE Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, RoHS, VDE Brand Wellde Produceing Experience 15 Years Size Customized According to Your Request OEM Yes Customized Yes Export Experience Thailand, Indonesia, Germany, Russia, Poland, UK Hot Sale UK, Poland, Malaysia, UAE, USA, India AWG AWG22 AWG20 AWG24 AWG26 AWG18 28 Hot Sale Specification 0.25mm 0.5mm 0.75mm 1.0mm 1.5mm Transport Package Coil, Drum or as Per The Customer′s Request Specification SGS Trademark Wellde Kable Origin Henan HS Code 8544492100 Production Capacity 500km Per Month

Packaging & Delivery

Package size per unit product 40.00cm * 38.00cm * 35.00cm Gross weight per unit product 2.000kg

Product Description

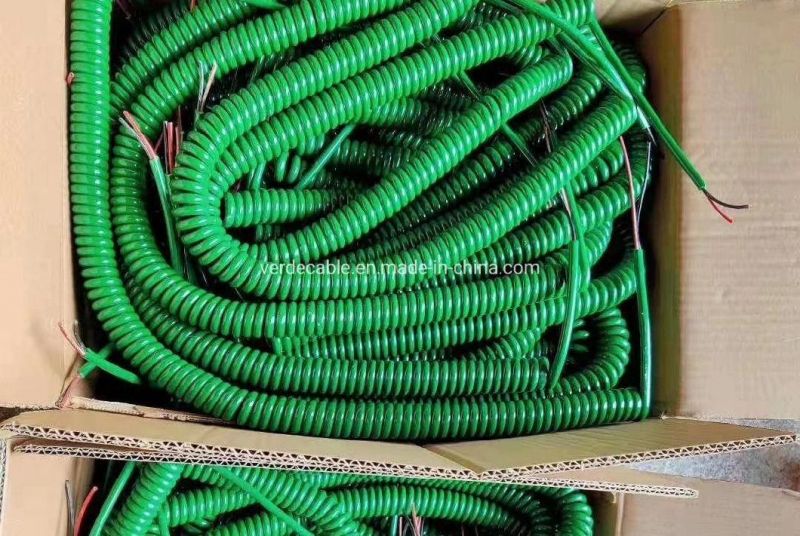

Multicore Flexible PUR Jacket Retractable Cables Spiral Coiled Cable

Curly Spiral Cable Hot Sale to UK, Poland, Germany , France , USA Thailand , Malayisa ,Russia

1. Application of Spiral Coiled Cable:

For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.

2. Structure & Specifications:

Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP / PU /TPE
Sheath material: PU / TPU / PA / PVC
Expanding length: 1.0 m-25.5m
Color: black , Red, Gre en, Blue , Orange , White, different colors can be customized.

Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

Spring Length: arbitrary (customized according to customer requirements)

Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.

3. Range we can produce:
Nominal cross section: 0.12~4mm2
Nmubers of cores:       1~30 core
Length of Spring: customized as per your request

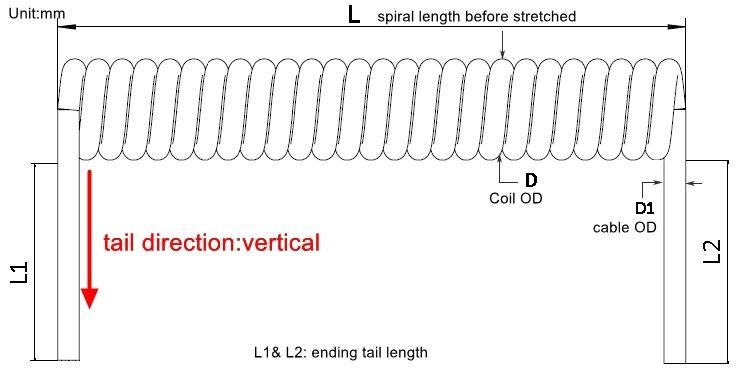

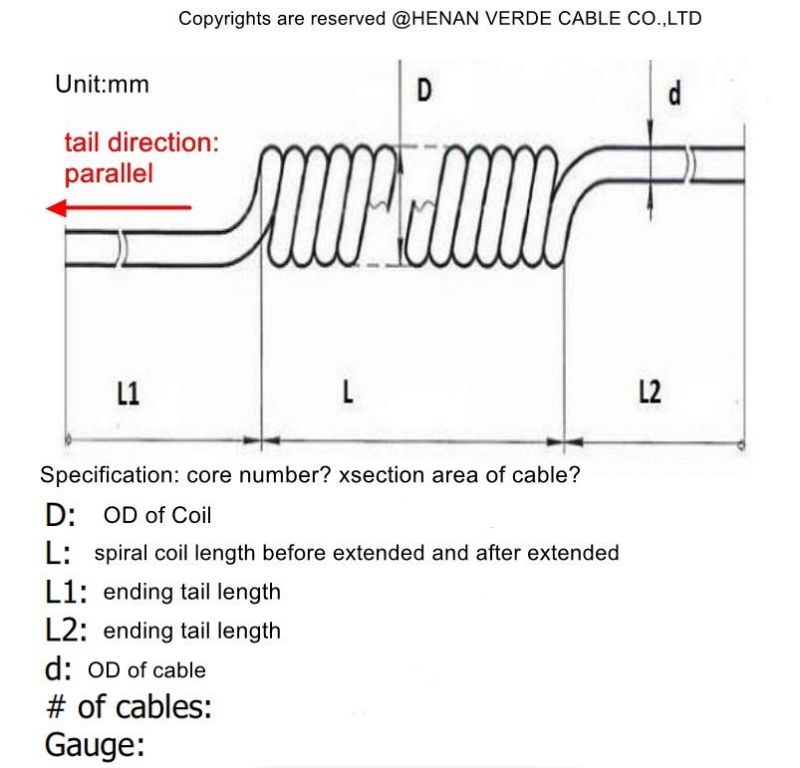

4.Drawing of spiral cable














1. Q:How to choose the sheath type of spiral cable?
     A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.

2. Q.:Are you a factory or trading company?
    A: We are a factory, and we establised in 2007.

3. Q: What kind of electric wire and cable do you produce?
    A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),Teflon wire and High temperature Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)

4. Q: Is sample supplied if requested?
    A: Yes!

5. Q: What certificates do you have?
     A: We have been qualified with IEC, CCC, CE, RoHS.

6. Q.:Which markets do you mainly involve in?
      A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico,   Guatemala, Nicaragua.



If you want to know more about us and our products,pls contact us.
