• Model NO.：spiral cable
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, RoHS, VDE
• Produceing Experience：15 Years
• Size：Customized According to Your Request
• OEM：Yes
• Customized：Yes
• Export Experience：Thailand, Indonesia, Germany, Russia, Poland, UK
• Hot Sale：UK, Malaysia, UAE, USA, India
• Customized Size：0.1mm2 0.25mm 0.5mm 0.75mm 1.5mm
• AWG Size：AWG 28 AWG26 24 22 20 Gauge 18 16
• Hot Sale Size：0.25mm 0.75mm 1.0mm 1.5mm
• Transport Package：Coil, Drum or as Per The Customer′s Request
• Specification：SGS
• Trademark：Wellde Cable
• Origin：Henan
• HS Code：8544492100
• Production Capacity：500km Per Month

Basic Info.

Model NO. spiral cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, RoHS, VDE Produceing Experience 15 Years Size Customized According to Your Request OEM Yes Customized Yes Export Experience Thailand, Indonesia, Germany, Russia, Poland, UK Hot Sale UK, Malaysia, UAE, USA, India Customized Size 0.1mm2 0.25mm 0.5mm 0.75mm 1.5mm AWG Size AWG 28 AWG26 24 22 20 Gauge 18 16 Hot Sale Size 0.25mm 0.75mm 1.0mm 1.5mm Transport Package Coil, Drum or as Per The Customer′s Request Specification SGS Trademark Wellde Cable Origin Henan HS Code 8544492100 Production Capacity 500km Per Month

Product Description

Description of Electric Spiral Cable:

Factory Direct Sales Curly Cables PUR Jacket Spiral Coiled Power Cable,Multi core Coil Cable for different types of equipment
Flexible Easily Extended Fine Stretched  ROHS PVC ,PE or PP Insulated Spiral Coiled Power Cable

Application of  Spiral Coiled Power Cable:

For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.

Structure & Specifications of Retractable Spiral Cable:

Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP / PU /TPE
Sheath material: PU / TPU / PA / PVC
Expanding length: 1.0 m-25.5m

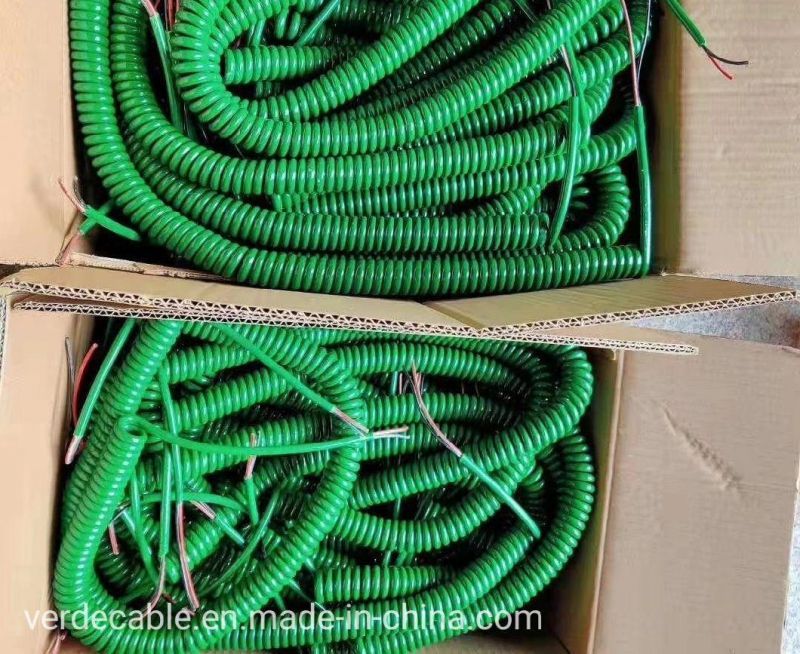

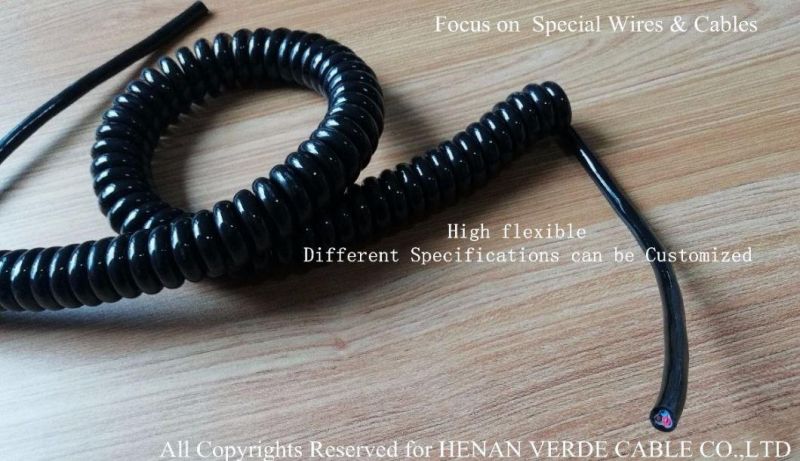

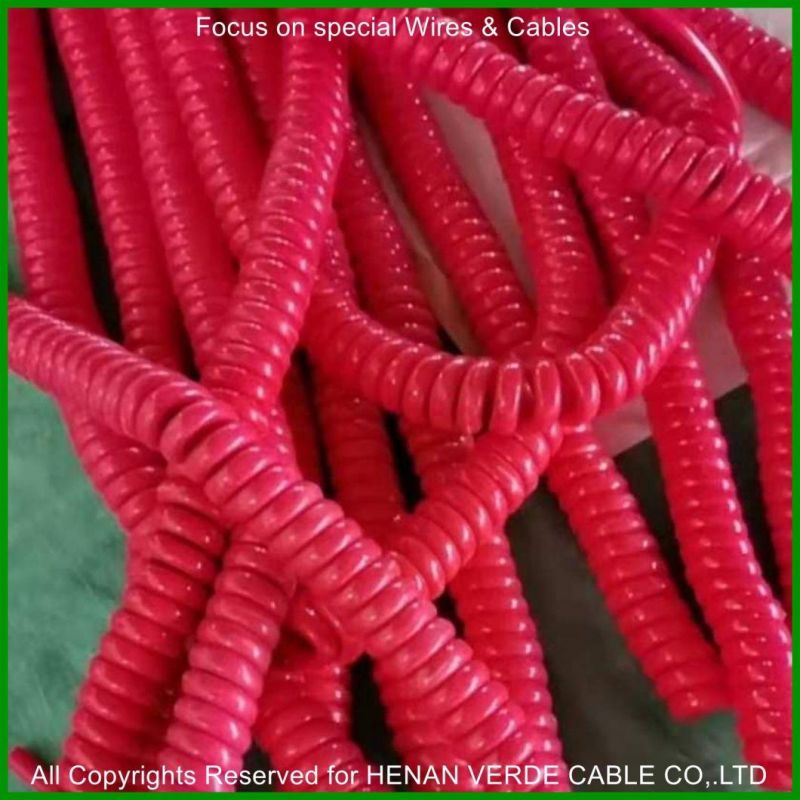

Color: black , Red, Gre en, Blue , Orange , White, different colors can be customized.

Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

Spring Length: arbitrary (customized according to customer requirements)

Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.

Spiral cable Specification Range we can produce:
Nominal cross section: 0.12 0.20mm 0.25mm 0.5mm 0.75mm 1.0mm till to 4mm2
Nmubers of cores:       1~30 core,
Hot customized core number: 3 core, 4 core, 5 core, 6 core, 7core, 8 core conductor
Gauge: AWG28 AWG 26 24# 22# AWG20 AWG18 AWG16 AWG14
Length of Spring: customized as per your request

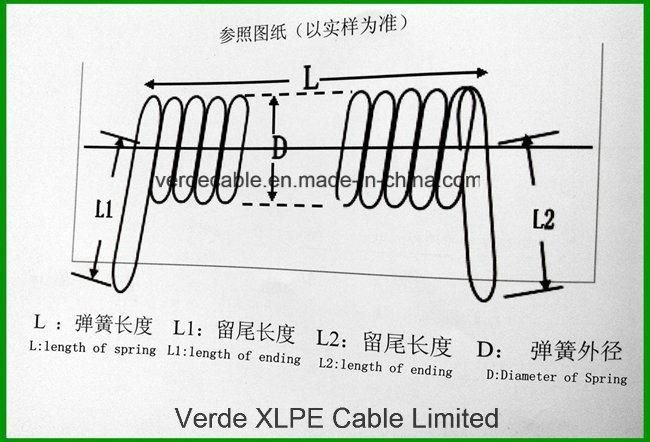

Drawing of Spiral Coiled cable






1. Q:How to choose the sheath type of spiral cable?
     A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.

2. Q.:Are you a factory or trading company?
    A: We are a factory, and we establised in 2007.

3. Q: What kind of electric wire and cable do you produce?
    A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),Teflon wire and High temperature Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)

4. Q: Is sample supplied if requested?
    A: Yes! free sample

5. Q: What certificates do you have?
     A: We have been qualified with IEC, CCC, CE, RoHS.

6. Q.:Which markets do you mainly involve in?
      A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico,   Guatemala, Nicaragua.


If you want to know more about us and our products,pls contact us.
