• Model NO.：CS-CB1po02
• Certification：TUV
• Wire Core Material：Red Copper Wire
• Transport Package：Standard Export Packing
• Specification：PV
• Trademark：Changsong
• Origin：Zhejiang, China
• Production Capacity：50000PCS,Year

Size

 Cross Section

 Conductor Structure

 Outer Diameter

 Max. DC Resistance at 20ºC

Rated Voltage

Rated Current

 mm² mm mm Ω/km V DCA 2 x 2.5mm² 2.5mm² 49 x ∅0.25 5.4 X 10.9 8.061000/150030A 2 x 4.0mm² 4.0mm² 56 x ∅0.285 6.1 X 12.3 4.97 1000/150050A 2 x 6.0mm² 6.0mm² 78 x ∅0.30 6.4 X 12.9 3.52 1000/150070ATechnical Date

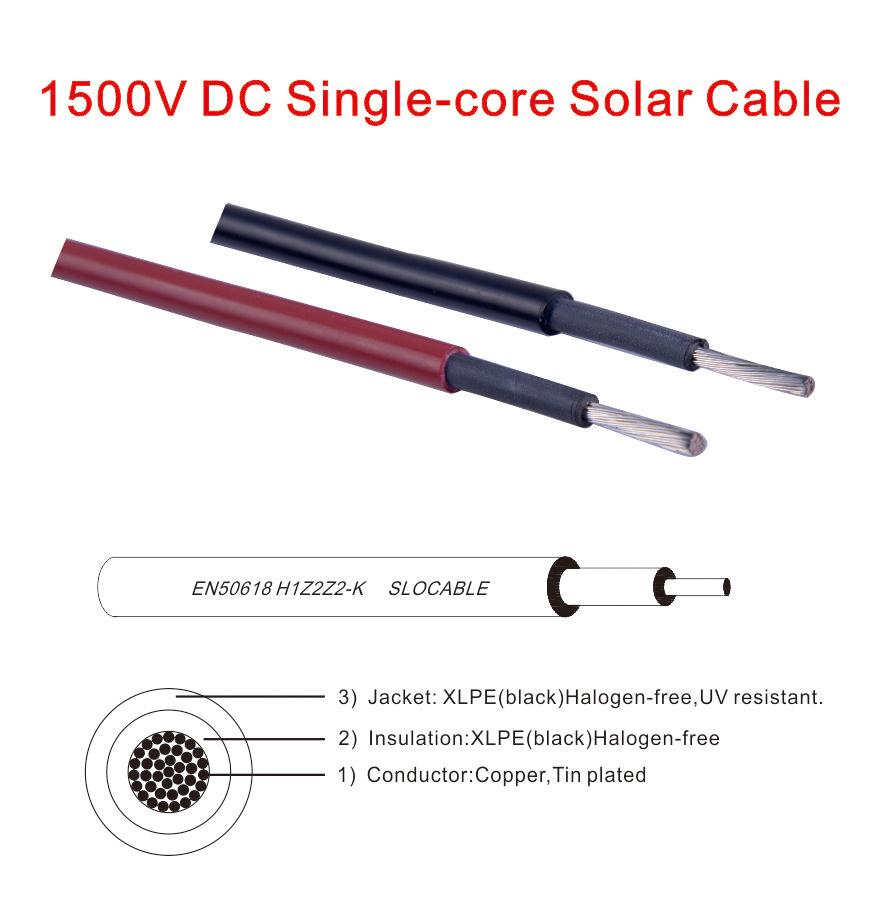

 Conductor: 99.7% copper, tinned

 UV resistance Insulation material: XLPE(XLPO) High voltage and High current Double walls insulation Temperature range: -40°C ~ +85°C Halogen-free material Color: Black Flame test according to: DIN EN 50265-2-1  UL 1571(VW-1) Smallest permissible bending radius: 5 x D

Advantages of Product

• Dual wall insulation,Electron beam cross-linked.
• Resistance to UV,water,ozone,fluids,salt,general weathering.
• Halogen free,flame,retardant,low toxicity.
• Flexibility and stripping performance.
• TUV approved.
• High current carrying capacity.
• Resistance to abrasion.
•
