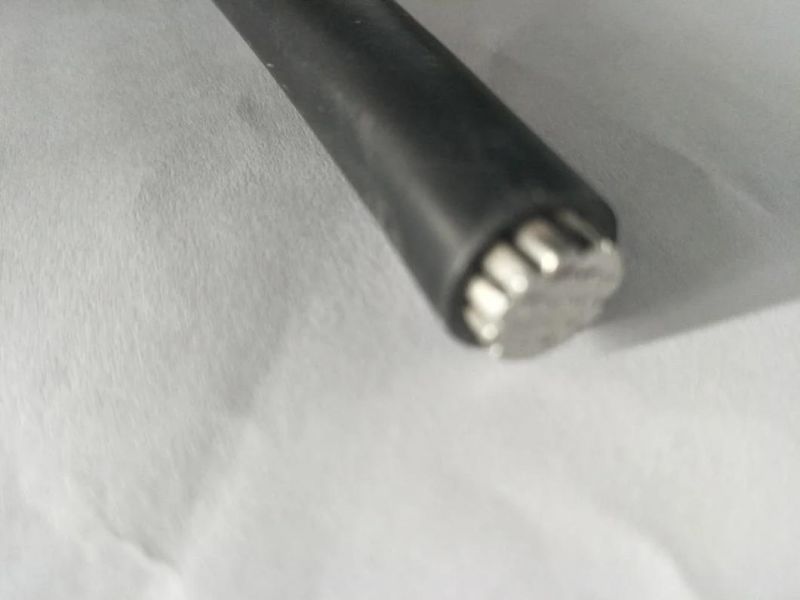

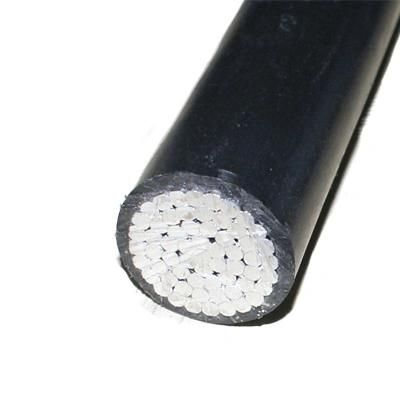

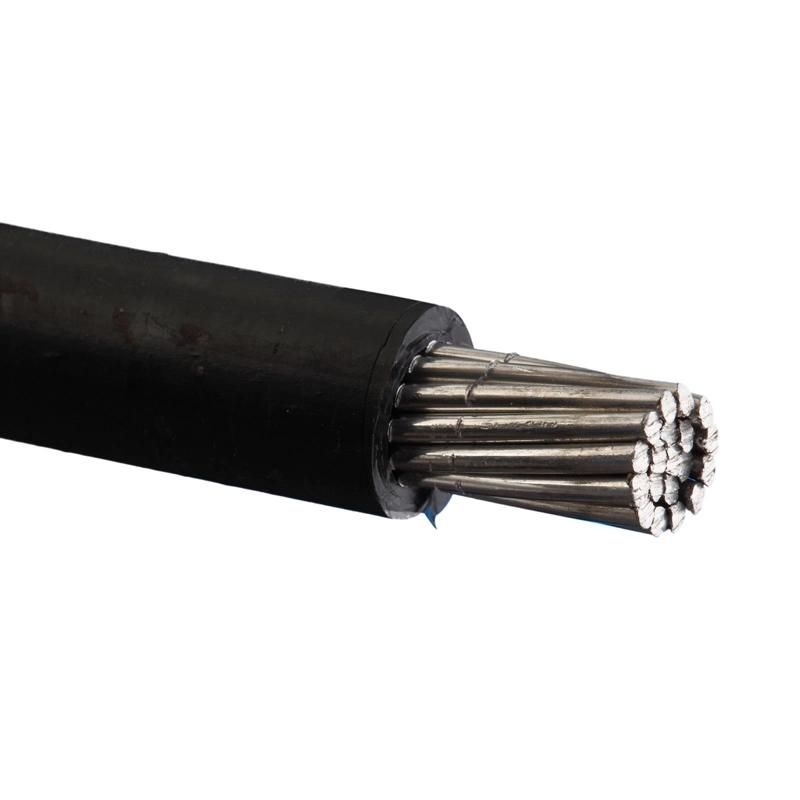

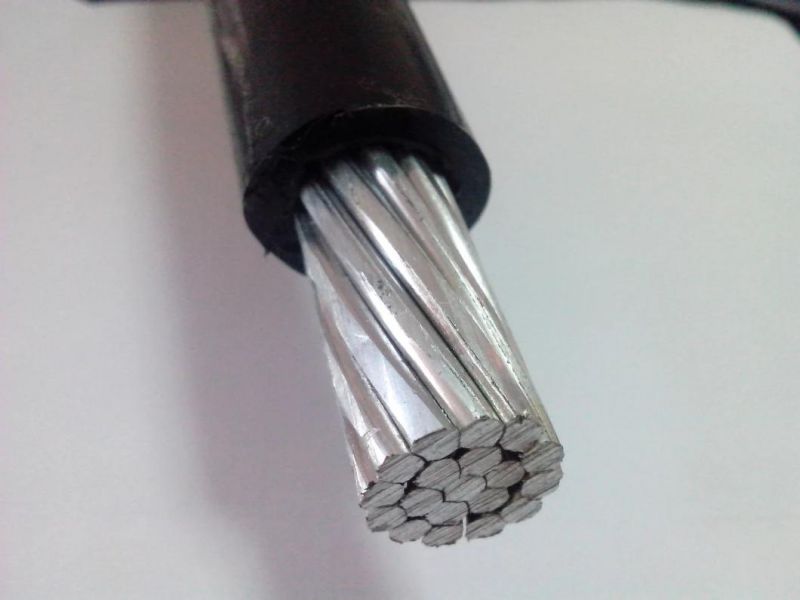

1*70 Aluminum Service Cable Stranded Aluminum Areal Cable
Henan Hongda Cable Co., Ltd.- Application:Overhead
- Voltage:Low and Medium Voltage Cable
- Current:DC & AC
- Insulation Material:XLPE,PVC
- Sheath Material:No Jacket
- Material Shape:Round Wire
Base Info
- Model NO.:BLV ABC YJLV JKLYJ
- Wire Core Material:Aluminum
- Certification:ISO, CCC
- Model:Jklyj
- Brand:OEM
- Transport Package:in Drum
- Specification:70
- Trademark:OEM
- Origin:Henan
- HS Code:8544492100
- Production Capacity:10000 M Per Day
Description
Basic Info.
Model NO. BLV ABC YJLV JKLYJ Wire Core Material Aluminum Certification ISO, CCC Model Jklyj Brand OEM Transport Package in Drum Specification 70 Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per DayProduct Description
ApplicationOverhead, outdoors or in some low voltage areas.
Aerial Bundle Cable(ABC Cable)
is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.
Standards
ASTM, BS, IEC, NFC, GB, AS/NZS
Construction
Conductor: Aluminum conductor, round stranded conpressed(RM).
Insulation: XLPE compound
Core identification: 1, 2 resp.3 raised longitudinal ribs on the surface of the cores. The surface of the neutral should have at least 12 ribs for cross-sections up to 50mm2 and a minimum of 16 ribs for cores above 50mm2. In the case of five core bundles the surface of the protective core should be smooth.
Models and descriptions
Covered line wire:
JKY: Copper core PE insulated aerial cable
JKYJ: Copper core XLPE insulated aerial cable
Service drop cable:
JKLY: Aluminum core PE insulated aerial cable
JKLYJ: Aluminum core XLPE insulated aerial cable
Secondary UD cable:
JKLHY: Aluminum alloy core PE insulated aerial cable
JKLHYJ: Aluminum alloy core XLPE insulated aerial cable
Nominal Cross-sectional Areas(sqmm)
10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
