Low Voltage Nyy Nyry Low Voltage Power Cable (4c X 185mm2) Copper Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Transport Package：Steel-Wooden Drum Packing
- Specification：90mm2 150mm2 185mm2 240mm2 300mm2
- Trademark：Yifang
- Origin：China
- HS Code：8544492100
Description
For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV
Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY
Copper conductor, XLPE insulated,PE sheathed power cable
YJLY
Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33
Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
Type
No. of cores
Nom. Cross-section of conductor
(mm2)
Copper conductor
Aluminum conductor
YJV YJY
-
1
1.5-800
-
YJLV YJLY
2.5-800
YJV22 YJV23
YJLV22 YJLY23
10-800
YJV YJY
-
2
1.5-300
-
YJLV YJLY
2.5-300
YJV22 YJV23
YJLV22 YJLY23
4.0-300
YJV32 YJV33
YJLV32 YJLY33
10-300
YJV YJY
-
3
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
4
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
3+1
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
5
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
4+1
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
3+2
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
The armoured single core cables are used for D.C. system only. As for A.C. system,non-magnetic armour material should be used, or a magnetic isolation should be applied.
Package

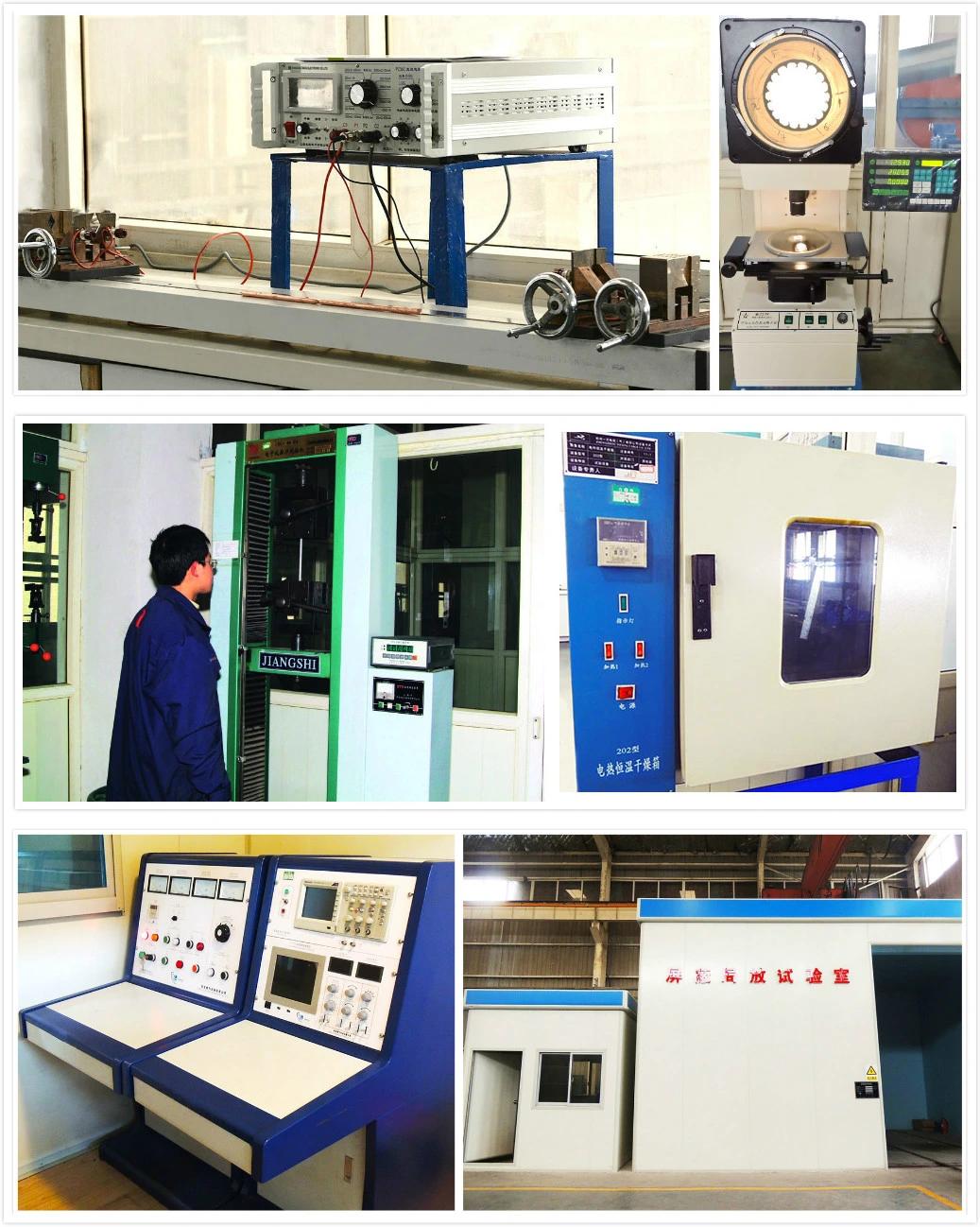

Equipment
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
