• Model NO.：H07V-K , H05V-K
• Material Shape：Round or Flat
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Standard：NF C 32-201-3
• Transport Package：Treated Wooden Drums
• Specification：16AWG TO 500MCM
• Trademark：YIFANG
• Origin：China
• HS Code：8544492100
• Production Capacity：10000m Per Week

Basic Info.

Model NO. H07V-K / H05V-K Material Shape Round or Flat Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Yifang Standard NF C 32-201-3 Transport Package Treated Wooden Drums Specification 16AWG TO 500MCM Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 10000m Per Week

Product Description



H07V-K H05V-K French Standard Insulated Wires


H05V-K

Application and Description

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

Standard and Approval

• NF C 32-201-3
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC

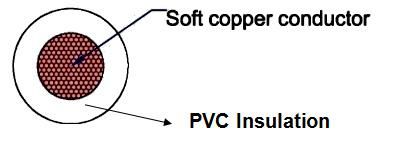

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart



Technical Characteristics

Working voltage	300/500v
Test voltage	2000 volts
Flexing bending radius	12.5 x O
Static bending radius	12.5 x O
Flexing temperature	-5oC to +70oC
Static temperature	-30oC to +80oC
Flame retardant	NF C 32-070
Insulation resistance	10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	# x mm^2	mm	mm	kg/km	kg/km
20(16/32)	1 x 0.5	0.6	2.1	4.9	10
18(24/32)	1 x 0.75	0.6	2.4	7.2	13
17(32/32)	1 x 1	0.6	2.6	9.6	15

H07V-K


Application and Description

These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits.

These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.

Standard and Approval

• NF C 32-201-3
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC

Technical Characteristics

Working voltage	450/750V
Test voltage	2500 volts
Flexing bending radius	12.5 x O
Static bending radius	12.5 x O
Flexing temperature	-5o C to +70o C
Static temperature	-30o C to +80o C
Short circuit temperature	+160o C
Flame retardant	NF C 32-070
Insulation resistance	10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	# x mm^2	mm	mm	kg/km	kg/km
16(30/30)	1 x 1.5	0,7	3.1	14.4	20
14(50/30)	1 x 2.5	0,8	3.6	24.0	31
12(56/28)	1 x 4	0,8	4.3	38.0	48
10(84/28)	1 x 6	0,8	4.9	58.0	69
8(80/26)	1 x 10	1,0	6.4	96.0	121
6(128/26)	1 x 16	1,0	8.1	154.0	211
4(200/26)	1 x 25	1,2	9.8	240	303
2 (280/26)	1 x 35	1,2	11.1	336	417
1 (400/26)	1 x 50	1,4	13.1	480	539
2/0 (356/24)	1 x 70	1,4	15.5	672	730
3/0 (485/24)	1 x 95	1,6	17.2	912	900
4/0 (614/24)	1 x 120	1,6	19.7	1152	1135
300 MCM (765/24)	1 x 150	1,8	21.3	1440	1410
350 MCM (944/24)	1 x 185	2,0	23.4	1776	1845
500MCM(1225/24)	1 x 240	2,2	27.1	2304	2270
