All Dielectric Self-Supporting Optical Cable / ADSS Cables36 Fibers

Qingdao Powtech Electronics Co., Ltd.
  • Application：Communication, Art, Sensor, Medicine
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：ADSS
  • Core：Multicore
  • Certification：RoHS, UL, ISO9001, VDE, CCC
  • Brand：OEM
  • Sheath Material：PE Sheath
  • Jacket：Double Jackets Protection
  • Tube：Stranded Loose Tube
  • Fiber Count：2-288 Cores
  • Transport Package：Iron Wooden Drum
  • Specification：IEEEP1222, SGS, ISO
  • Trademark：Powtech
  • Origin：Qingdao, China
  • HS Code：85477000
  • Production Capacity：500km,Month

Description

ADSS with grade A sheath (Parts)Structure drawingOrder Type ModelADSS-PE 24B1-100MADSS-PE 24B1-200MADSS-PE 24B1-300MFiber count24fiber24fiber24fiberSize of tubeφ2.0mmφ2.0mmφ2.0mmCable diameterφ12.3 mmφ12.4mmφ12.6mmCable weight124kg/km128kg/km134kg/kmRTS6kN12kN18kNLinear expansion coefficient9.0×10-6/degC8.0×10-6/degC5.6×10-6/degCYoung's modulus5.8kN/mm28.8kN/mm211.6kN/mm2ADSS with grade B sheath (Parts)Structure drawingOrder Type ModelADSS-AT 24B1-100MADSS-AT 24B1-200MADSS-AT 24B1-300MFiber count24fiber24fiber24fiberSize of tubeφ2.0mmφ2.0mmφ2.0mmCable diameterφ12.3 mmφ12.4mmφ12.6mmCable weight124kg/km128kg/km134kg/kmRTS6kN12kN18kNLinear expansion coefficient9.0×10-6/degC8.0×10-6/degC5.6×10-6/degCYoung's modulus5.8kN/mm28.8kN/mm211.6kN/mm2

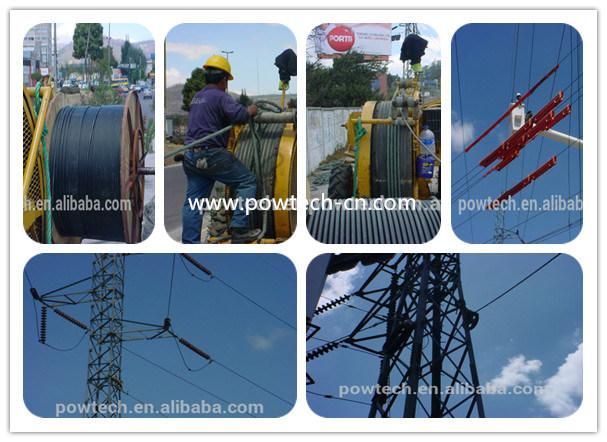

Installation Guide:
 All Dielectric Self-Supporting Optical Cable / ADSS Cables36 Fibers
Package&shipment:
All Dielectric Self-Supporting Optical Cable / ADSS Cables36 Fibers
All Dielectric Self-Supporting Optical Cable / ADSS Cables36 Fibers
