• Model NO.：Instrumentation Cable
• Brand：Yifang
• Product Name：Telephone Cable(Twisted Cable,Armoured Type)
• Transport Package：Drum, Reel or According to Customers′ Request
• Specification：IEC, BS, NFC, GOST, DIN, etc.
• Trademark：Yifang
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：5000km Per Month

Basic Info.

Model NO. Instrumentation Cable Brand Yifang Product Name Telephone Cable(Twisted Cable,Armoured Type) Transport Package Drum, Reel or According to Customers′ Request Specification IEC, BS, NFC, GOST, DIN, etc. Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 5000km Per Month

Product Description

Application: For reducing interference in computers, control systems, transmission of analogue
signal and other measuring devices.
Rated Voltage: 300/500V
                         600/1000V special and customer designated
Test Voltage: AC 1000V/1Min for 300/500V,AC 3500V/1Min for 600/1000V
Max. conductor operating temperature: 90^oC
Insulation resistance: Not less than 5000Mohm.km
Core's color: One pair: Black/white pair
Two pairs and above:  Black/white pairs with numbers 1, 2...n or color
Color of sheath: Black or blue and customer designated
Manufactured sdandards: BS 5308-1978, IEC 60331-2009, IEC 60332-2009
Conductor type: IEC 60228-2004 class 1 or class 2
Nominal Cross-section area: 0.5~2.5mm²
We can produce according to your need and provide technical data.
Packing: Cable can be supplied in any length required.
XLPE/Mica tape/Multi-pair/ Collectively screened/Unarmored/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/Unarmored/LSHF
XLPE/Mica tape/Multi-pair/ Collectively screened/Galvanized steel wire armored/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/Galvanized steel wire armored/LSHF
XLPE/Mica tape/Multi-pair/ Collectively screened/Galvanized steel wire braiding/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/ Galvanized steel wire braiding/LSHF

Notes: 1. Ambient temperature for insulation shall not be lower than 0^oC.
           2. Anti-termite, anti-rodent and ultra-violet (UV) stabilizer additives are available upon request.
           3. Special size and sheath color also available upon request.
           4. Flame/Fire resistant wire conform to IEC 60331/IEC 60332-2009.
           5. Blue sheath will be used for intrinsically safe circuit.
XLPE/Mica tape/Multi-pair/ Collectively screened/Unarmored/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/Unarmored/LSHF
XLPE/Mica tape/Multi-pair/ Collectively screened/Galvanized steel wire armored/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/Galvanized steel wire armored/LSHF
XLPE/Mica tape/Multi-pair/ Collectively screened/Galvanized steel wire braiding/LSHF
XLPE/Mica tape/Multi-pair/ Individually & Collectively screened/ Galvanized steel wire braiding/LSHF

1. Application
   For reducing interference in computers, control systems, transmission of analogue signal and other
   measuring devices.
2. Rated Voltage
   300/500V, 600/1000V special and customer designated
3. Test Voltage
   AC 1000V/1Min for 300/500V,AC 3500V/1Min for 600/1000V
4. Max. conductor operating temperature: 90^oC
5. Insulation resistance: Not less than 5000Mohm.km
6. Core's color:
   1) One pair: Black/white pair
   2) Two pairs and above:  Black/white pairs with numbers 1, 2...n or color
7. Color of sheath: Black or blue and customer designated
8. Manufactured sdandards: BS 5308-1978, IEC 60331-2009, IEC 60332-2009
9. Conductor type:
   IEC 60228-2004 class 1 or class 2
   Nominal Cross-section area: 0.5~2.5mm²
   We can produce according to your need and provide technical data.
10. Packing: Cable can be supplied in any length required.
11. Notes:
   1) Ambient temperature for insulation shall not be lower than 0^oC.
   2) Anti-termite, anti-rodent and ultra-violet (UV) stabilizer additives are available upon request.
   3) Special size and sheath color also available upon request.
   4) Flame/Fire resistant wire conform to IEC 60331/IEC 60332-2009.
   5) Blue sheath will be used for intrinsically safe circuit.

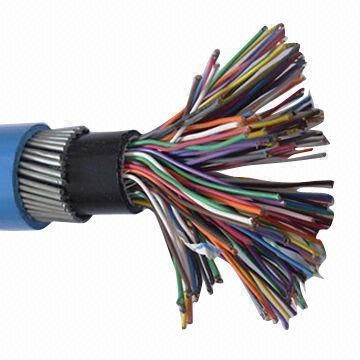

Telephone Cable(Twisted cable, Armoured type)
Construction:Copper conductor, PE insulated, SWA, PVC sheath
Application:For the power transmission of the telephone line
Voltage:1KV or Below
Standards: IEC, BS, DIN, ASTM, NFC, GOST, CSA, etc.
