Tkd Alternative Cable Ysstcy/ Ysstvcy Cable Lift Control Cable 300 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：YSSTCY, YSSTVCY Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

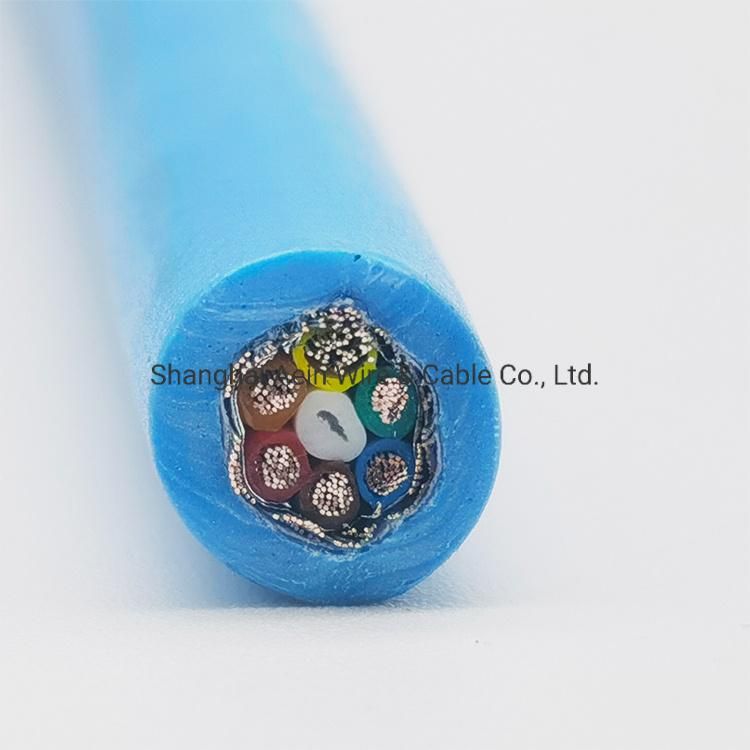

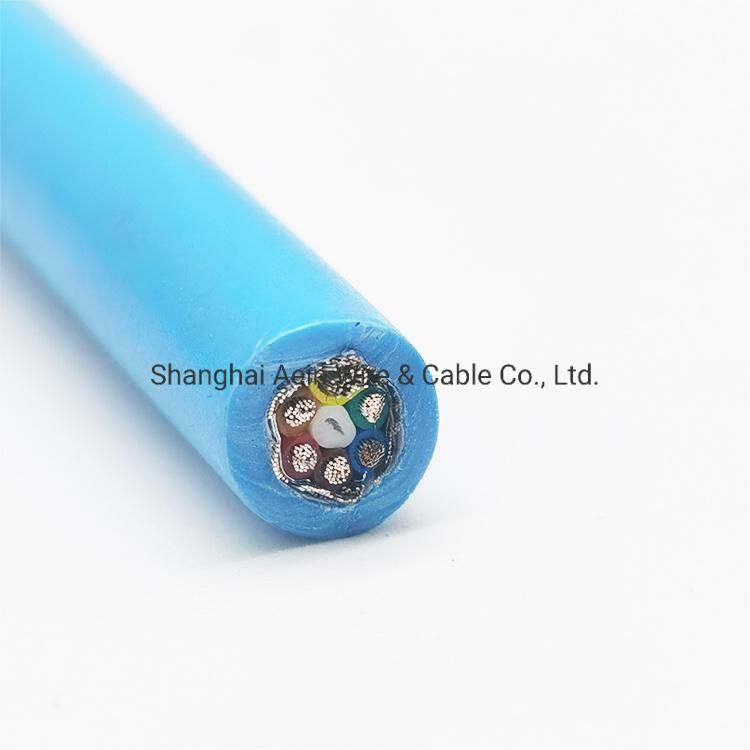

ItemTKD alternative cable YSSTCY/ YSSTVCY Cable Lift Control Cable 300 VConductorBare copper stranded condutorInsulationPVCSupporting element Galvanised steel rope Stranding2 cores stranded to 1 pair; pairs stranded in layers ShieldCopper braid tinned; coverage ca. 70% Outer sheathPVCCore numberMulticores (As client's requirement)Rated voltage Max. 300V Min. bending radius fixed 12 x dMin. bending radius moved18 x dOperat. temp. fixed min/max -5 °C / +70 °COperat. temp. moved min/max -5 °C / +70 °CBurning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationHigh-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
