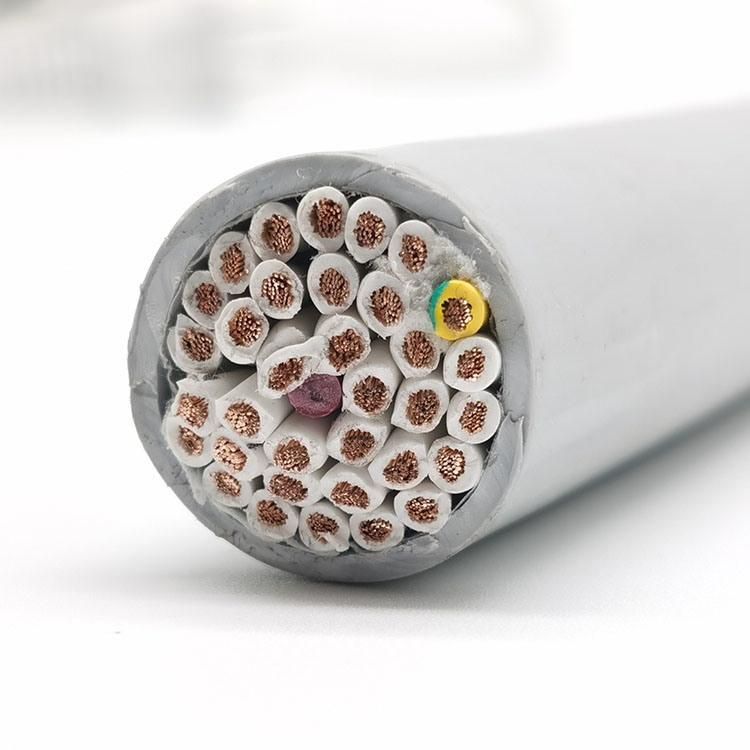

Kysty/ Kystuy Cable High-Flexible Lift Control Cable with Textile Supporting Element

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：KYSTY, KYSTUY Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemKYSTY/ KYSTUY Cable High-flexible Lift Control Cable with Textile Supporting ElementConductorBare copper stranded condutorInsulationPVCSupporting element Central supporting element of textile fibres StrandingStranded to layers Outer sheathPVCCore numberMulticores (As client's requirement)Rated voltage Uo/U: 300/500 V Testing voltage 2 kV Min. bending radius fixed 12 x dMin. bending radius moved12 x dOperat. temp. fixed min/max KYSTY: -30 °C / +70 °C; KYSTUY: -40 °C / +70 °C Operat. temp. moved min/max KYSTY: -5 °C / +70 °C; KYSTUY: -30 °C / +70 °C Burning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationHigh-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
