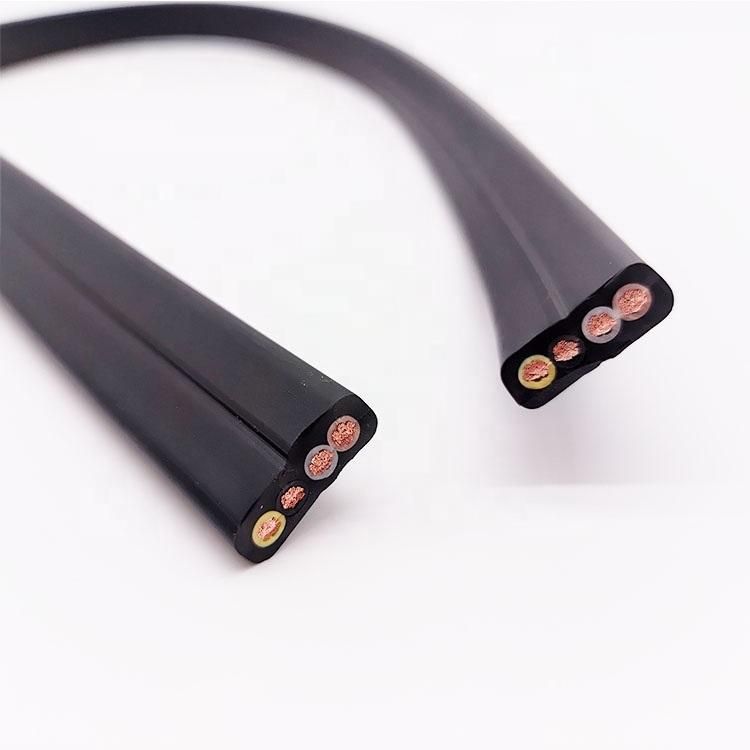

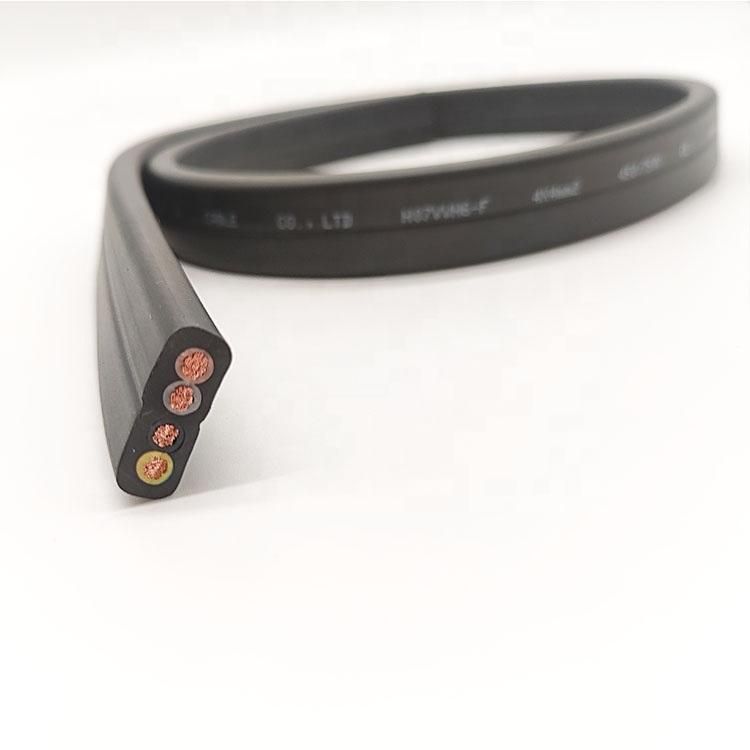

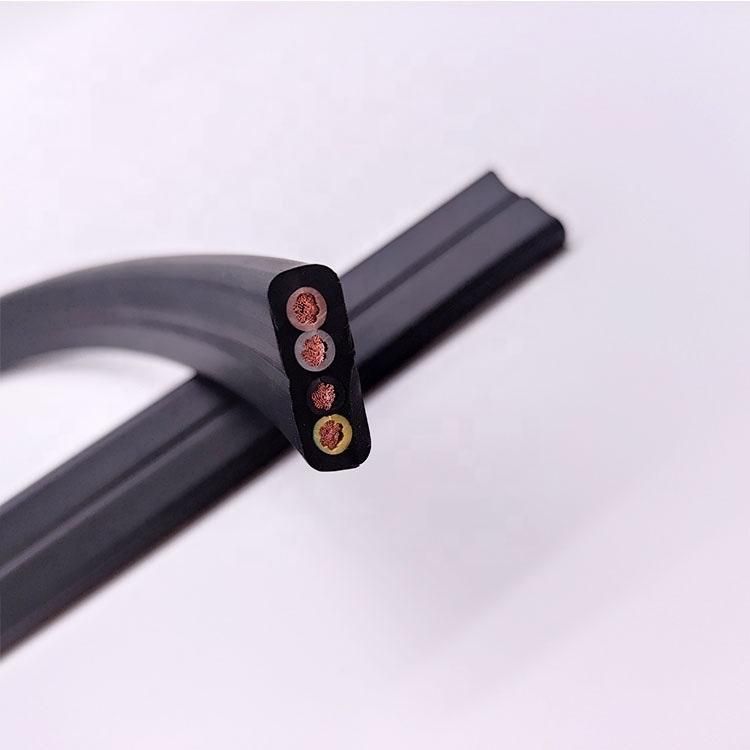

Tkd Alternative Cable Lsoh Cable Power and Control Cable 1mm2 300/500 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Polyolefin
  • Insulation Material：Special Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：LSOH Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemTKD Alternative Cable LSOH Cable Power and Control Cable 1mm2 300/500 VConductorBare copper stranded condutorInsulationSpecial compoundStrandingCores parallel side by sideShieldLSOH-C: bare copper braid, coverage approx. 85 % Outer sheathPolyolefinCore numberMulticores (As client's requirement)Rated voltage on 1 mm²: Uo/U 300/500 VTesting voltage LSOH: 2,5 kVMin. bending radius fixed 10 x dMin. bending radius moved10 x dSuspension heightMax. 35 mOperat. temp. fixed min/max -40 °C / +70 °C Operat. temp. moved min/max -25 °C / +70 °C Temp. at conductor+90 °CHalogen free acc. to IEC 60754-1 Smoke densityacc. to IEC 61034-2Burning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
