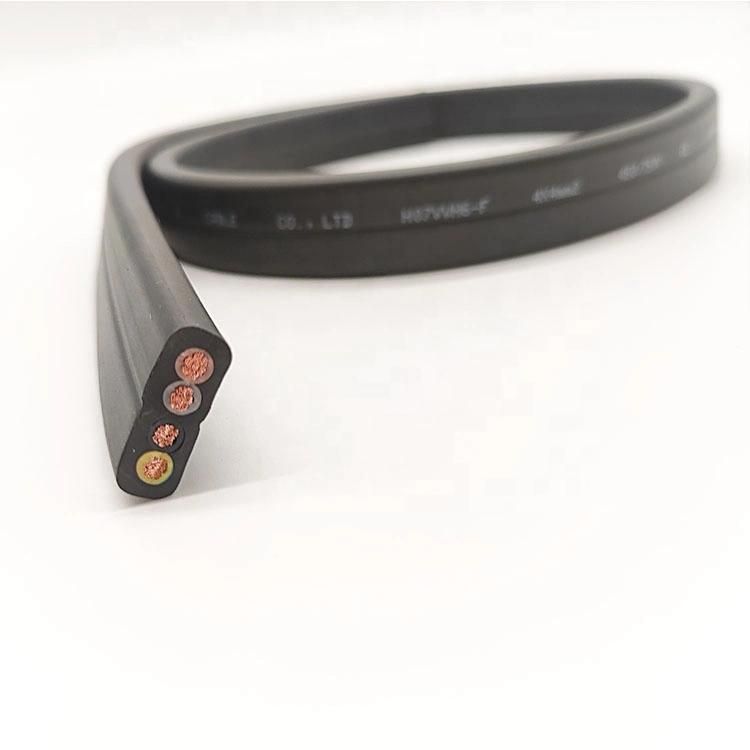

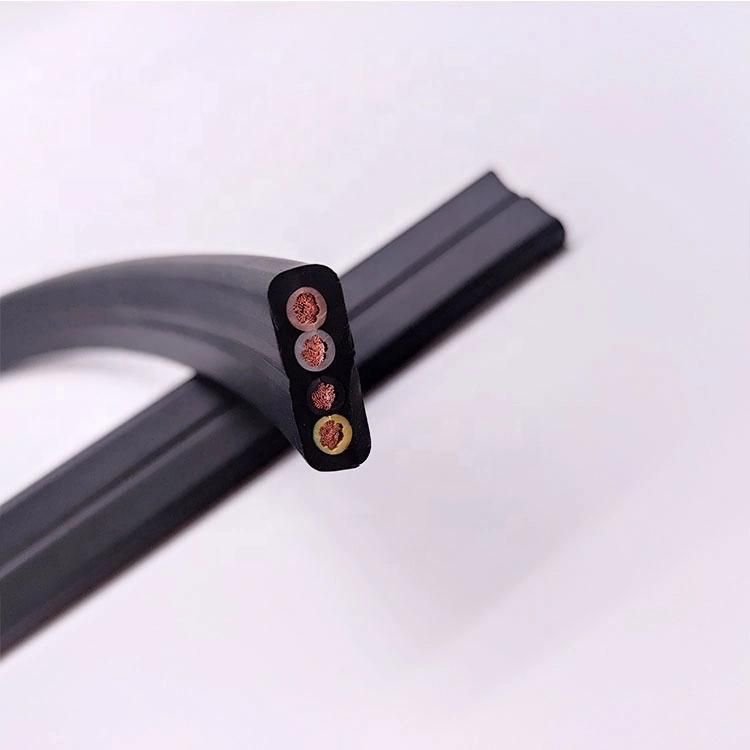

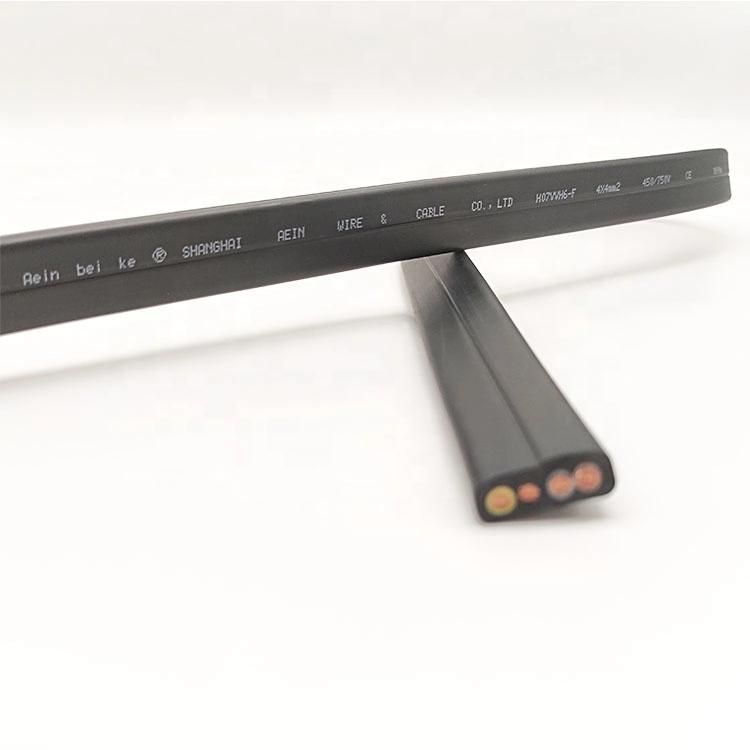

M (StD) Hou (EMV) Cable for Lift Crane and Container Bridges Tkd Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Rubber-Compound
  • Insulation Material：Rubber Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：M(StD)HOU (EMV) Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemM(StD)HOU (EMV) Cable for Lift Crane and Container Bridges TKD AlternativeConductorBare copper stranded condutorInsulationRubber compoundStrandingCores parallel side by sideShieldCoated foil + wrapped tinned wireOuter sheathSpecial rubber-compound Core numberMulticores (As client's requirement)Rated voltage 0,6/1 kV Testing voltage 2 kVMin. bending radius fixed acc. to DIN VDE 0298 part 3 Min. bending radius movedacc. to DIN VDE 0298 part 3 Operat. temp. fixed min/max -40 °C / +80 °C Operat. temp. moved min/max -40 °C / +80 °C Temp. at conductor+90 °CHalogen free acc. to IEC 60754-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
