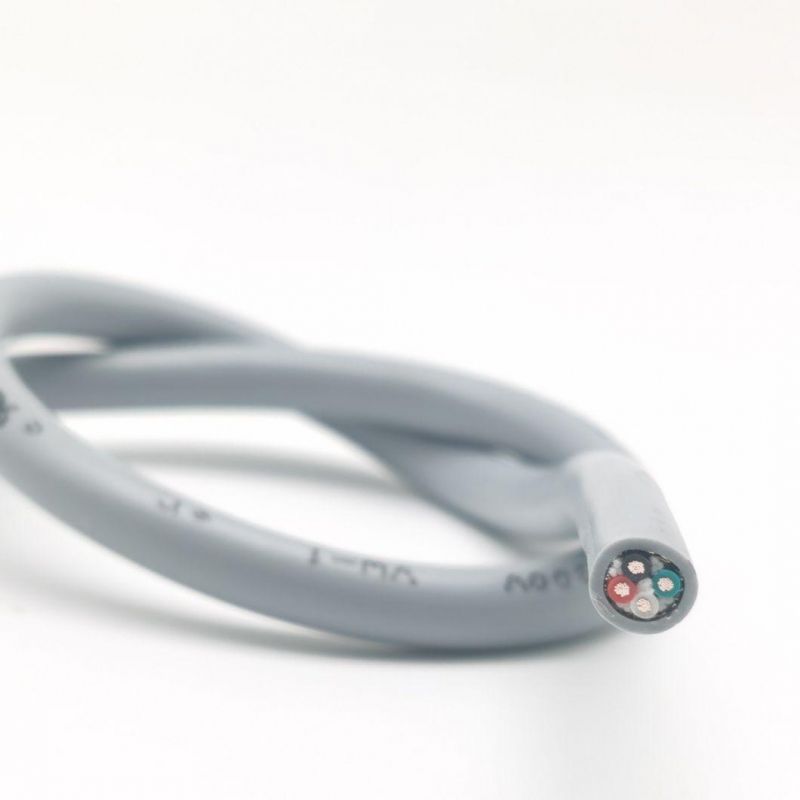

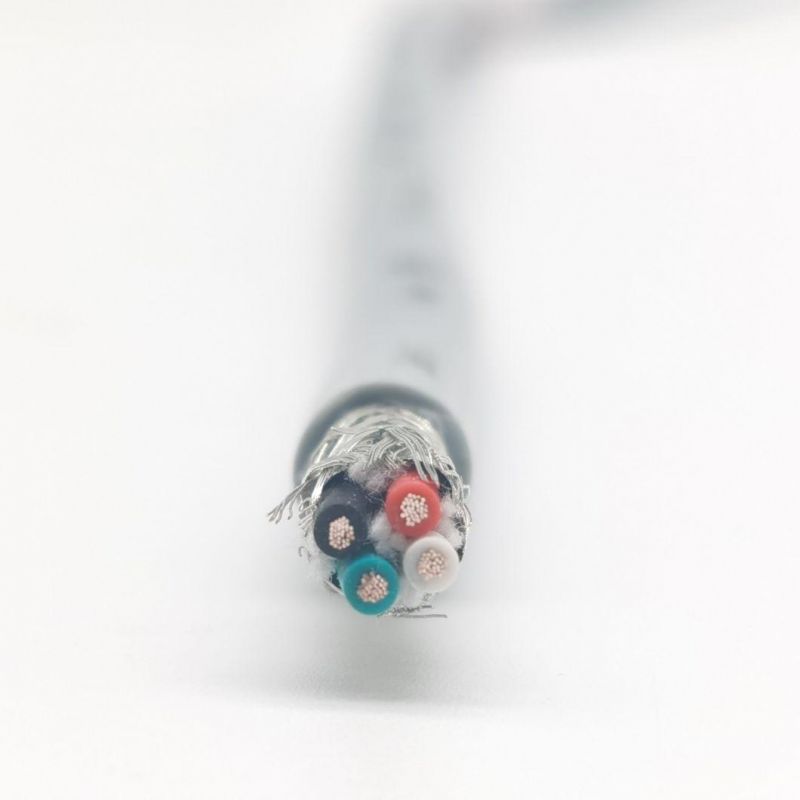

Ngflgou/ (N) Gflgou Rubber Cable 300/500 V Power and Control Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Rubber-Compound
  • Insulation Material：Rubber Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：NGFLGOU, (N)GFLGOU Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemNGFLGOU/ (N)GFLGOU Rubber Cable 300/500 V Power and Control CableConductorBare copper stranded condutorInsulationRubber compoundStrandingCores resp. bundles parallel side by side Outer sheathSpecial rubber-compound Core numberMulticores (As client's requirement)Rated voltage Uo/U 300/500 V Testing voltage 2 kVMin. bending radius fixed acc. to DIN VDE 0298 part 3 Min. bending radius movedacc. to DIN VDE 0298 part 3 Operat. temp. fixed min/max -40 °C / +85 °C Operat. temp. moved min/max -35 °C / +85 °C Temp. at conductor+90 °CHalogen free acc. to IEC 60332-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
