• Model NO.：solar cable
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Rneda
• Sheath Material：PVC
• Model Number：H1z2z2-K Cable
• Standard：En50618
• Cross Section：1-240mm2
• Rated Voltage：DC1.5kv
• Certificate：En50618
• Sheath：Sunlight Resistant Xlpo
• Insulation：Halogen-Free
• Transport Package：Standard Export Drums
• Specification：1.5-35mm2
• Trademark：RNEDA
• Origin：China
• HS Code：8544492100
• Production Capacity：1000000meter Per Month

Basic Info.

Model NO. solar cable Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Rneda Sheath Material PVC Model Number H1z2z2-K Cable Standard En50618 Cross Section 1-240mm2 Rated Voltage DC1.5kv Certificate En50618 Sheath Sunlight Resistant Xlpo Insulation Halogen-Free Transport Package Standard Export Drums Specification 1.5-35mm2 Trademark RNEDA Origin China HS Code 8544492100 Production Capacity 1000000meter Per Month

Product Description

TUV Certificate 2pfg 1169 PV1-F 1X4mm2 Solar Cable

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

H1Z2Z2-K

Tinned Copper Conductor Crosslinked LSZH insulation and jacket. DC 1.5kV
Single core cables, for photovoltaic and solar system use, LSZH insulated and sheathed flame retardant, halogen free and low smoke flexible cables for fixed laying, lifetime testing 20.000 h.120°

Application

Cable suitable for the interconnection of the various elements of photovoltaic systems. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems. High resistance against Ozone
U.V rays, oils, moisture and weather inclemencies. Suitable for use at an ambient temperature up to 90°C (120°C overload), thanks to the use of materials with temperature-index of 120°C, determined according to Norm IEC 60216 (20,000 h and 50% of residual elongation). Estimated lifetime of these cables is at least 25 years.

Insulation colour: Black
Sheath colour: Black/Red
Operating temperature: -40°C - 90°C on the conductor
Overload temperature: 120°C on the conductor
Expected lifetime: >25 years
Rated voltage: Uo/U AC 0.6/1 kV DC 1,5 kV
Max temperature in case of short circuit: 250°C on the condu ctor (max duration 5 seconds)
Min bending radius: 4 x outer diameter of the cable
Max installation temperature: -25°C

Print

Huatong Cables   TUV EN50618 H1Z2Z2-K DC 1.5kV 1×**mm2 ***M


Specification

Size	Max. of copper wires	Insulation thickness	Sheath thickness	Max.Outer diameter	Max cond. Resistance at 20oC	Approx.. cable weight
mm2	mm	mm	mm	mm	Ohms/km	Kg/km
1.5	0.31	0.7	0.8	5.4	13.70	37
2.5	0.31	0.7	0.8	5.9	8.21	49
4	0.31	0.7	0.8	6.6	5.09	67
6	0.31	0.7	0.8	7.4	3.39	90
10	0.41	0.7	0.8	8.8	1.95	134
16	0.41	0.7	0.9	10.1	1.24	199
25	0.41	0.9	1	12.5	0.795	316
35	0.41	0.9	1.1	14.0	0.565	428
50	0.41	1.0	1.2	16.3	0.393	594
70	0.51	1.1	1.2	18.7	0.277	803
95	0.51	1.1	1.3	20.8	0.210	1049
120	0.51	1.2	1.3	22.8	0.164	1304
150	0.51	1.4	1.4	25.5	0.132	1634
185	0.51	1.6	1.6	28.5	0.108	2012
240	0.51	1.7	1.7	32.1	0.0817	2575

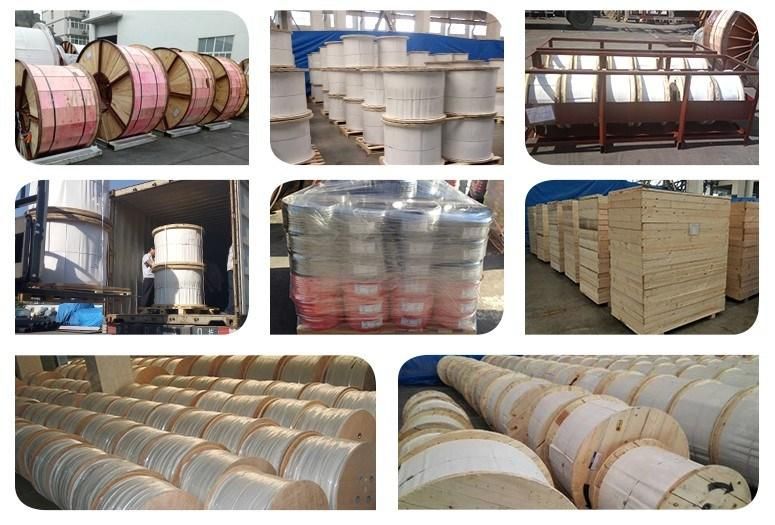

Package

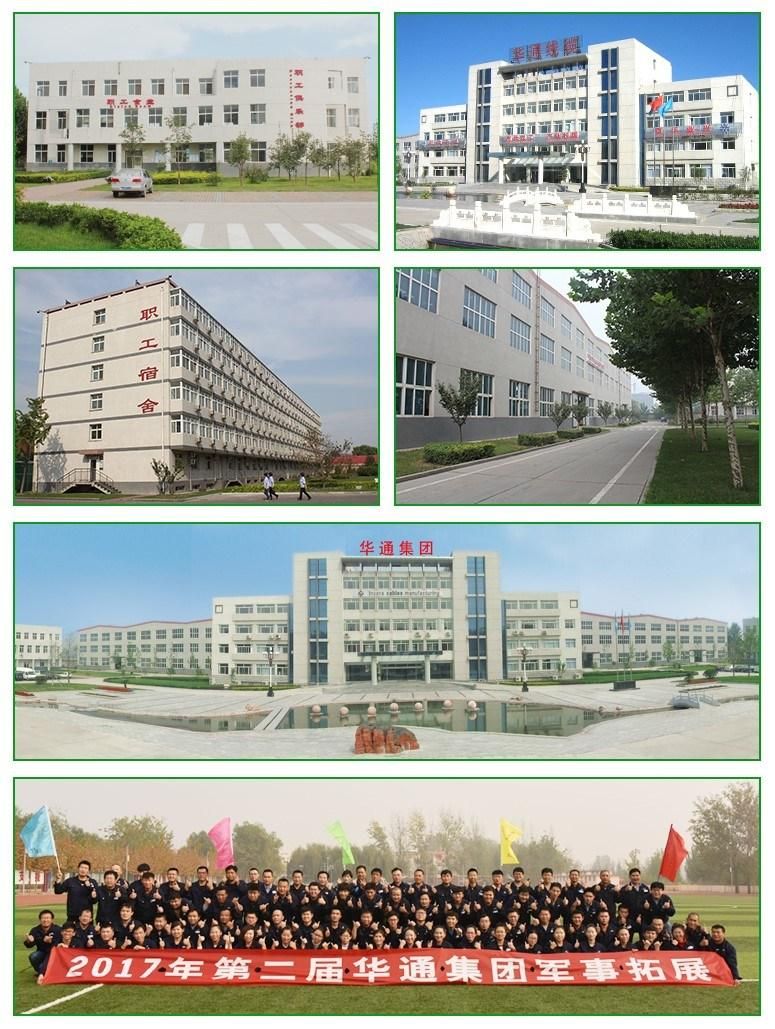

Our Company

Hebei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

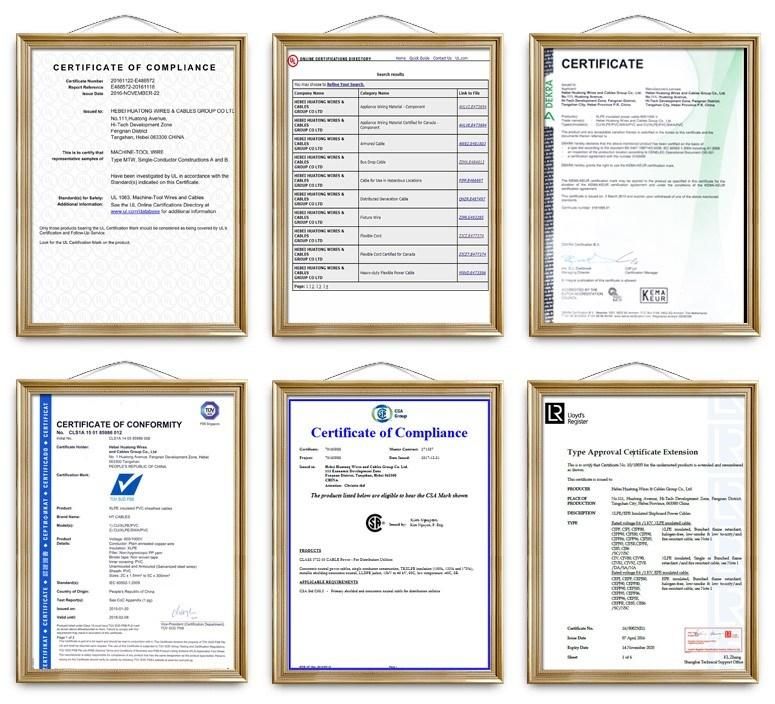

Certificate

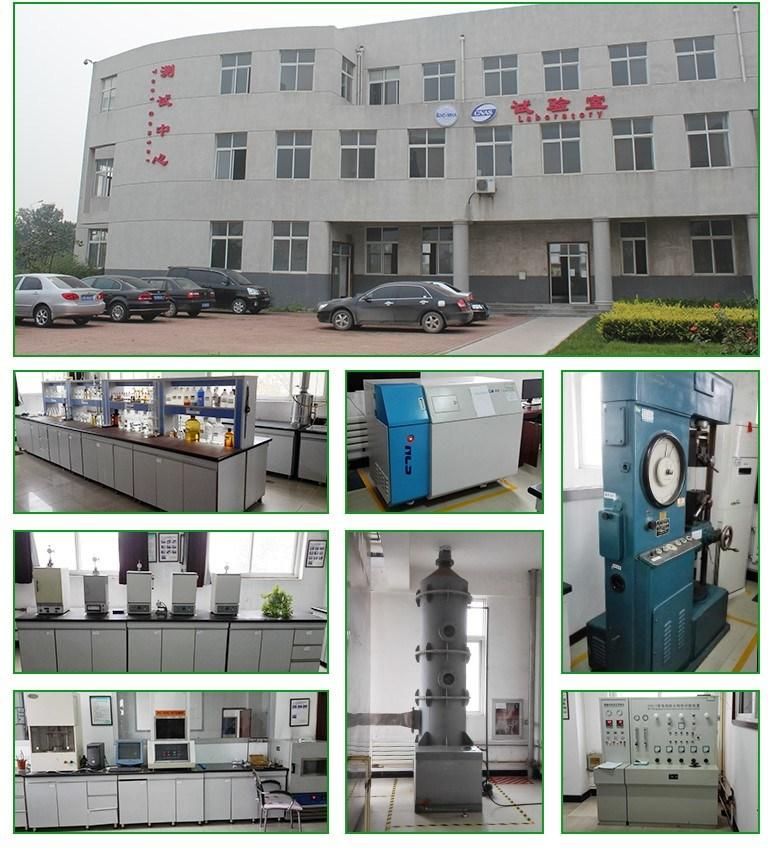

Laboratory

Our Services

1.24 years production experience and 14 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3.OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7.Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

FAQ

1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but thefreight charge should be paid.

3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquirytwo months before the date you would like to get the products at your country.
