• Model NO.：Type PV Cable
• Material Shape：Round Wire
• Range of Application：Solar Indusry
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Rne Da
• Color：as Requested
• Standard：UL4703 or TUV
• Temperature：-40ºC to 90ºC
• Certificate：UL and TUV
• Voltage：2000V
• Conductor：Stranded Copper or Aluminul Alloy Conductor
• Transport Package：Roll, Coil, Sandard Rxpot Wooden Drums
• Specification：12AWG-2000kcmil
• Trademark：RNE DA
• Origin：Hebei, China (Mainland)
• HS Code：8544422900
• Production Capacity：5000 Kilometer,Kilometers Per Month

Basic Info.

Model NO. Type PV Cable Material Shape Round Wire Range of Application Solar Indusry Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Rne Da Color as Requested Standard UL4703 or TUV Temperature -40ºC to 90ºC Certificate UL and TUV Voltage 2000V Conductor Stranded Copper or Aluminul Alloy Conductor Transport Package Roll, Coil, Sandard Rxpot Wooden Drums Specification 12AWG-2000kcmil Trademark RNE DA Origin Hebei, China (Mainland) HS Code 8544422900 Production Capacity 5000 Kilometer/Kilometers Per Month

Product Description

2000V 2/0 AWG Sunlight Resistant Solar Cable PV Cable


Product Description

Applications
• For use in solar power applications per NEC Article 690
• Rated 90 ˚C for exposed or concealed wiring in wet or dry locations
• Rated for direct burial conduit

Construction Details

• Aluminum conductors are  AA-8000 series aluminum alloy, compact stranded
• XLPE insulation
• -40˚C to +90˚C
• Sunlight resistant
• RoHS compliant
• Direct burial

Specifications

Aluminum Photovoltaic Wire meets the requirements of the following:
• UL Subject 4703 for TYPE PV
• UL 44 for TYPE RHW-2
• UL 854 for TYPE USE-2

Data Sheet 1000V/2000V


Size	Diameter of conductor	Min. Number of Strands	Insulation Thickness	Nominal O.D.	Net Weight	Maximum conductor resistance at temperature 20ºC
AWG or kcmil	mm	n	mm	mm	kg/km	Ω/km
12	2.16	7	1.90	6.0	46	8.880
10	2.72	7	1.90	6.5	56	5.590
8	3.40	7	2.15	7.7	80	3.520
6	4.29	7	2.15	8.6	102	2.210
4	5.41	7	2.15	9.7	135	1.390
3	6.02	7	2.15	10.3	156	1.100
2	6.81	7	2.15	11.1	183	0.875
1	7.59	18	2.66	12.9	244	0.693
1/0	8.53	18	2.66	13.9	286	0.550
2/0	9.55	18	2.66	14.9	337	0.436
3/0	10.74	18	2.66	16.1	400	0.346
4/0	12.07	18	2.66	17.4	477	0.274
250	13.21	35	3.04	19.3	579	0.232
300	14.48	35	3.04	20.6	665	0.194
350	15.65	35	3.04	21.7	750	0.166
400	16.74	35	3.04	22.8	836	0.145
450	17.78	35	3.04	23.9	914	0.129
500	18.69	35	3.04	24.8	1028	0.116
550	19.69	58	3.43	26.6	1133	0.1060
600	20.65	58	3.43	27.5	1217	0.0967
650	21.46	58	3.43	28.3	1298	0.0893
700	22.28	58	3.43	29.1	1382	0.0829
750	23.06	58	3.43	29.9	1463	0.0774
800	23.83	58	3.43	30.7	1543	0.0725
900	25.37	58	3.43	32.2	1707	0.0645
1000	26.92	58	3.43	33.8	1871	0.0580

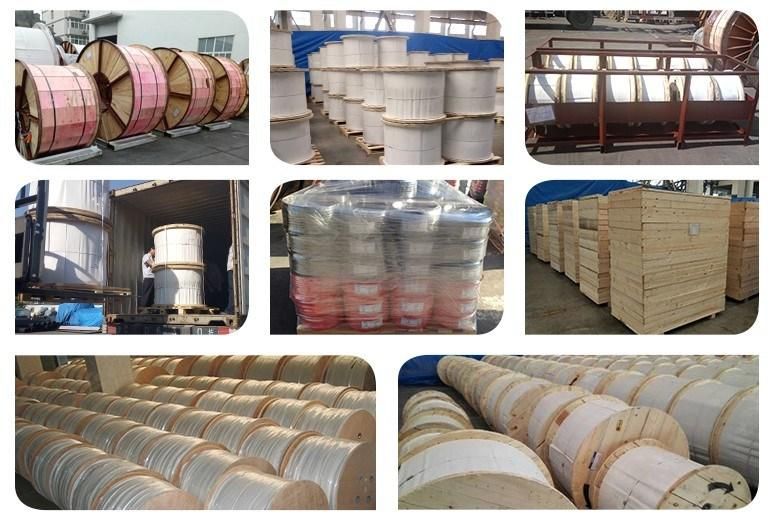

Packaging & Shipping

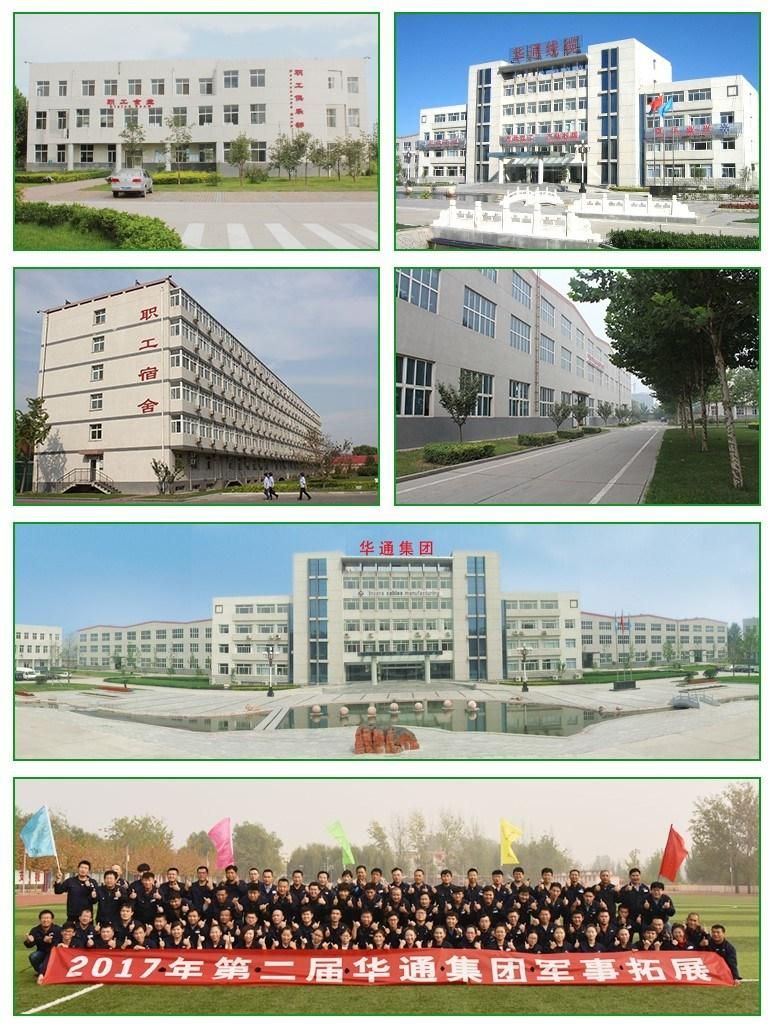

Company Information

Hebei Huatong Wires and Cables Group Co., Ltd was established in 1993, covering an area of  230, 000 square meters. We own more than 420 sets manufacturing equipment and  250 sets of testing equipment or apparatus. Our annual production capacity is 5 billion Yuan.We have 1200 employers, among which 150  are technicians. Based on the scientific management, now we are a comprehensive, large-scale enterprises in wire and cable industry.Voltage up to 35KV, including X L P E power cables,PVC power cables, mining cables, rubber cables for general purpose, Submersible oil pump cables, solar cables, shipboard cables,lead sheath cables, aerial cables, control and instrument cables, special cables etc.Products are exported to USA, Australia, Singapore, Europe, South America, Middle East, Asia, Africa. CNAS accredited national level laboratory.



UL Certificates

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also  have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,
KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.

We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable  and so on.

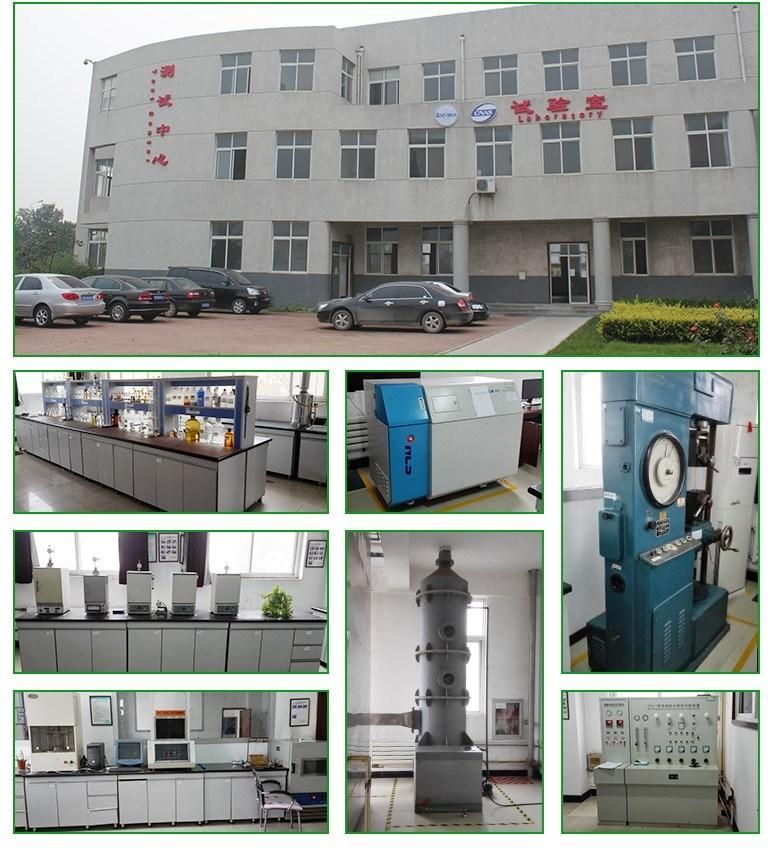

LaboratoryCNAS accredited national level laboratory.


Our Services

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

FAQ

(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
