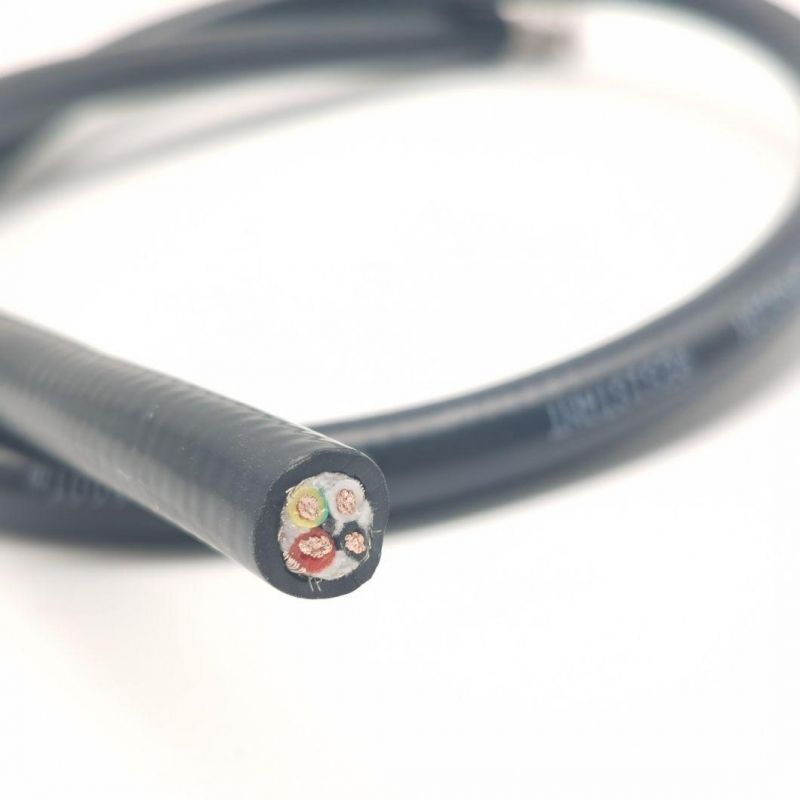

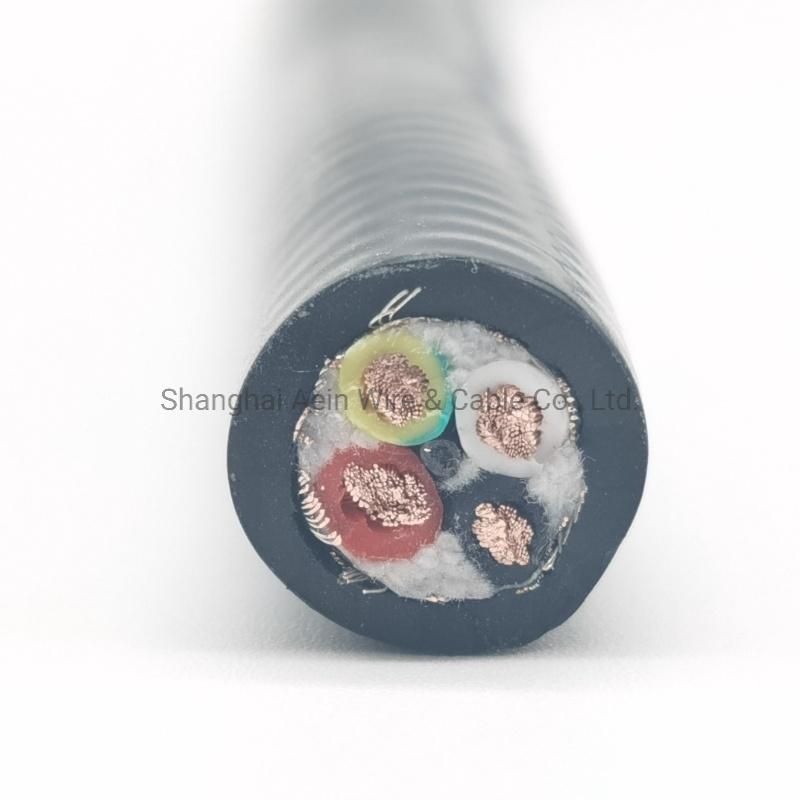

Torsion Resistant LSZH 1kv Turbine Power Cable B9c Cable Epr Insulation

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Hf-EVA
  • Insulation Material：Epr
  • Material Shape：Round Wire

Base Info

  • Model NO.：B9C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

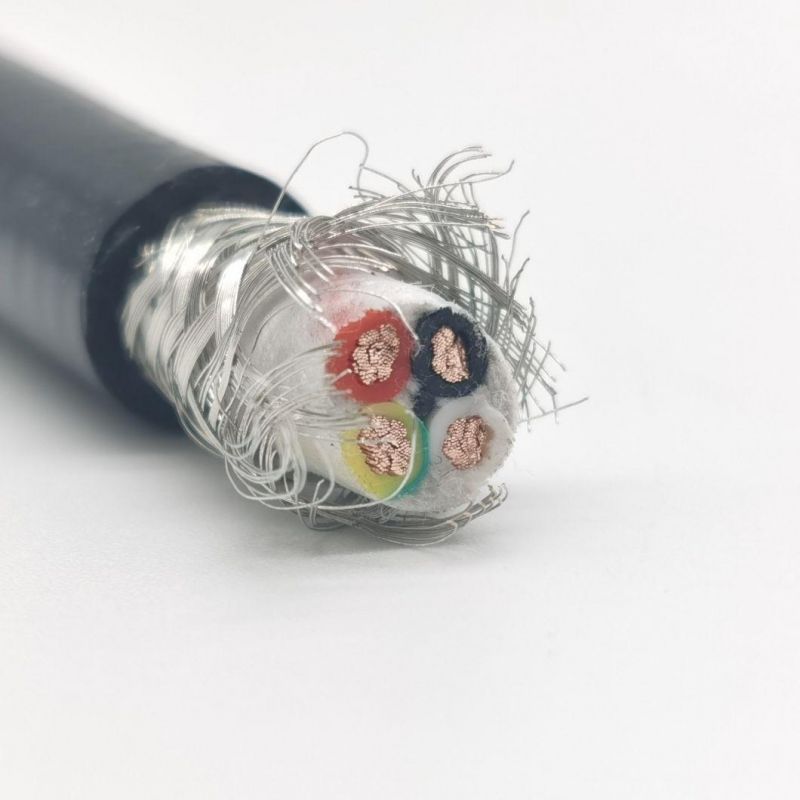

ItemB9C Cable ConductorStranded bare copperInsulationEPR (Ethylene Propylene Rubber)ScreenTWCB (Tinned wire copper braid)Outer sheathHF-EVA (Halogen Free Ethylene-Vinyl Acetate)Rated voltage Uo/U: 0.6/1kVCore numberMulticores (As client's requirement)Testing voltage -40 ºC ~ +90 ºCMin. bending radius6x Overall DiameterTorsion Resistance± 144°/mApplicationLSZH Power cable with increased tolerance to torsion application and offering oil, UV and ozone resistance. Specifically designed for torsion applications in wind turbines and suitable for transmit energy from the generator to the transformer
